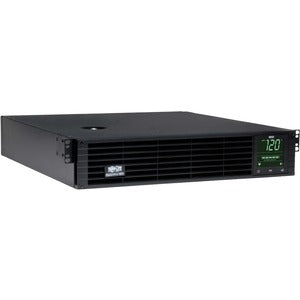

Tripp Lite SmartPro SM2200RMXL2UPN: 120V 2200VA/1920W Line-Interactive Sine Wave UPS with Extended Run

The Tripp Lite SmartPro UPS delivers professional-grade power protection for critical equipment, from small business networks to digital signage and security systems. Engineered with sine-wave output, automatic voltage regulation (AVR), and an impressive 2200 VA/1920 W rating, this 2U rack-mount UPS safeguards sensitive electronics against outages, surges, brownouts, and stray line noise. With built-in network management (WEBCARDLX), an intuitive LCD display, and multiple connection options (USB and DB9), the SM2200RMXL2UPN is designed to provide reliable battery backup, active power conditioning, and convenient remote monitoring for modern IT environments.

• Powerful protection for critical devices: The 2200 VA / 1920 W capacity supports servers, switches, routers, workstations, digital signage players, and security gear, ensuring systems stay online during short-term outages and power fluctuations.
• Sine-wave output with AVR: Delivers clean, stable AC power that is safe for sensitive electronics, preserving data integrity and preventing unexpected shutdowns during voltage irregularities.
• 2U rack-mount form factor with Extended Run: Space-efficient 2U design that fits standard 19-inch racks; Extended Run capability enables longer runtimes when paired with external battery packs, reducing maintenance windows and downtime.
• Comprehensive management and visibility: WEBCARDLX network management card, an onboard LCD, plus USB and DB9 serial interfaces give you real-time status, remote monitoring, event alerts, and advanced control capabilities.
• Ideal for diverse environments: Perfect for PC networks, security systems, digital signage deployments, POS networks, and small data centers that demand reliable power protection and easy integration into existing infrastructure.

Technical Details of Tripp Lite SmartPro SM2200RMXL2UPN

• Model: SM2200RMXL2UPN
• Topology: Line-Interactive UPS with Automatic Voltage Regulation (AVR)
• Output power capacity: 1920 W / 2200 VA
• Output voltage: 120 V AC, 60 Hz
• Waveform: Sine Wave output for clean, regulated power
• Form factor: 2U rack-mount
• Management options: WEBCARDLX network management card, LCD display, USB port, DB9 serial port
• Protection features: Battery back-up, surge protection, line noise filtering, and overcurrent safety
• Runtime characteristics: Extended Run capable with optional external battery packs for longer broadcast, server, or digital signage uptime
• Connectivity: USB and DB9 serial interfaces for local management and integration with PowerAlert software
• Protection of connected equipment: Safeguards critical devices during outages and voltage irregularities, enabling orderly shutdowns and data preservation
• Environmental compatibility: Designed for data center and enterprise environments with robust reliability and monitoring

How to install Tripp Lite SmartPro SM2200RMXL2UPN

• Choose the installation location: Select a stable, vibration-free space in a rack or on a sturdy surface; ensure adequate ventilation and clearance for service access.
• Rack mounting readiness: If mounting in a 19-inch rack, use the included mounting rails or compatible rails appropriate for your enclosure; align the UPS securely and fasten with the proper hardware.
• Power sequencing: Connect the UPS to a dedicated branch circuit using a properly rated wall outlet; avoid daisy-chaining through other devices to prevent nuisance transients.
• Connect protected loads: Plug critical devices (servers, switches, storage, routers, workstations) into the UPS’s battery-backed outlets and, if needed, connect non-critical peripherals to surge-only outlets (if available).
• Management setup: Install the WEBCARDLX network management card if not already present, connect the UPS to your network, and configure remote monitoring options. Use the LCD display to verify system status and network address.
• Local management and software: Connect the USB cable to a management PC and install PowerAlert or the preferred Tripp Lite management software to enable automated shutdowns, event logging, and health alerts.
• Initial power-on and self-test: Power up the UPS, allow it to run through its startup self-test, and review the LCD for status indicators. Conduct a simulated power outage to confirm successful battery transfer to protected outlets.
• Runtime planning: If your load requires extended runtimes, consider external battery packs designed for the SM2200RMXL2UPN and configure runtime plans within the management software to optimize battery utilization.
• Documentation and maintenance: Save the user manual and install guides for future reference. Schedule periodic self-tests and firmware updates through the WEBCARDLX or management software to maintain peak performance.

Frequently asked questions

• What devices can I protect with this UPS? It’s designed for PCs, servers, network gear (switches, routers), security systems, and digital signage players. The 2U rack-mount form factor makes it suitable for data centers, conference rooms, and retail environments where reliable power is critical.
• What does Extended Run mean? Extended Run refers to the ability to expand runtime by using optional external battery packs. This lets you keep essential equipment online longer during extended outages, giving you time to shut systems down gracefully or continue operations until power returns.
• What management options are included? The UPS includes a WEBCARDLX network management card for remote monitoring, an LCD display for on-device status, and USB/DB9 ports for local management and software integration. This combination provides flexible control and visibility across networks.
• How do I monitor and control the UPS? Use the LCD panel for real-time readings (load, battery, input/output voltage, alarms) and connect via USB or DB9 for software-based monitoring. The WEBCARDLX card enables remote monitoring over your network with alerts and event logs.
• Is this UPS appropriate for a 24/7 environment? Yes, it is designed for continuous operation in professional settings. For 24/7 environments, ensure regular self-tests, battery health checks, and adherence to manufacturer maintenance guidelines to maximize reliability and uptime.
• What maintenance is required? Periodic battery health checks, firmware or software updates when available, and self-tests via the LCD or management software help maintain optimal performance and prolong service life.
• Can it be used for non-rack installations? While optimized for rack-mount deployment, it can be placed on a stable surface in a suitable space. Ensure adequate ventilation and safe cable management if not rack-mounted.
