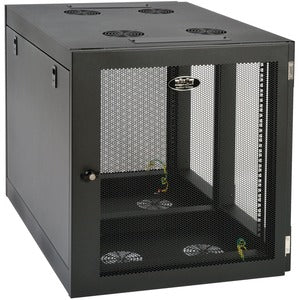

Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Side-Mount Wall-Mount Enclosure Cabinet

The SRW12UHD SmartRack is a compact, heavy-duty enclosure designed to protect and organize standard 19-inch rack equipment in spaces where floor real estate is at a premium. Engineered for reliability in network wiring closets, classrooms, retail locations, back offices, and other confined environments, this small rack enclosure delivers a robust solution that combines security, accessibility, and efficient cooling. With a server-depth profile and a flexible mounting approach, it accommodates a wide range of rack-mount devices while keeping cables tidy and equipment protected from dust, tampering, and incidental contact. Built to support IT infrastructure in environments from small businesses to education and retail environments, the SRW12UHD emphasizes durability, secure access, and easy serviceability in a footprint that makes sense for tight installations.

• 12U rack space in a compact, low-profile design that maximizes usable equipment area without occupying valuable floor space, ideal for wall- or side-mounted installations in data closets, classrooms, and select retail environments.
• Versatile mounting capability, engineered to support wall-mount and side-mount configurations with adjustable rails to fit standard 19-inch equipment, delivering flexible deployment options that align with existing room layouts.
• Secure access with a locking front door, providing controlled entry to critical network gear and safeguarding sensitive equipment from unauthorized access while preserving convenient serviceability for authorized personnel.
• Exhaust-friendly construction featuring ventilated front and side panels that promote airflow around rack devices, helping maintain optimal operating temperatures and prolong equipment life in compact spaces.
• Durable steel construction with a protective powder-coated finish that stands up to daily use in busy environments, offering long-term reliability, easy cleaning, and resistance to wear from frequent equipment changes.

Technical Details of Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Side-Mount Wall-Mount Enclosure

• Model: SRW12UHD – part of the SmartRack enclosure family, designed for space-constrained installations.
• Rack Unit Capacity: 12U of usable space for 19-inch rack equipment.
• Enclosure Type: Wall-mount and side-mount capable rack enclosure cabinet, optimized for server-depth gear and compact rooms.
• Compatibility: Supports standard EIA-310-D 19-inch rack equipment with adjustable mounting rails.
• Construction: Heavy-gauge steel construction built to withstand daily use in busy environments.
• Finish: Powder-coated exterior for durability and a professional, low-maintenance appearance.
• Ventilation: Ventilated panels and doors to promote airflow around mounted equipment and reduce heat buildup.
• Accessibility: Front access with a secure locking mechanism; rear or side access features may be available depending on model configuration.

How to Install Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Side-Mount Wall-Mount Enclosure

Note: Ensure power to any connected devices is turned off before installation. Use appropriate mounting hardware suited to the wall type and consult facility guidelines for electrical and structural safety during installation.

• Choose the installation location: Identify a sturdy wall or supporting structure capable of bearing the weight of mounted equipment. Confirm that the space allows for front door clearance and cable routing to the rear of the enclosure.
• Prepare mounting hardware: Use screws or anchors suitable for the wall material (drywall, concrete, or masonry) and recommended load ratings. If installing with rear rails or auxiliary mounting, have all rails aligned and ready.
• Attach mounting rails: Install adjustable 19-inch rails inside the enclosure per the manufacturer’s guidelines, ensuring rails are level and securely fastened to support the intended equipment depth. Verify rail spacing aligns with the devices you plan to mount.
• Mount the enclosure: Secure the enclosure to the wall or mounting surface using the appropriate fasteners. Confirm the unit is level, plumb, and stable before proceeding to install equipment.
• Install and manage equipment: Slide 19-inch equipment onto the rails, align with mounting holes, and secure equipment with manufacturer-provided screws. Route cables through the rear openings or cable management features to keep pathways clean, then reinstall doors and verify the locking mechanism engages properly. Perform a final check to ensure all devices power on correctly and that airflow around the enclosure remains unobstructed.

Frequently asked questions

• What capacity does the SRW12UHD provide? The enclosure offers 12U of rack space, suitable for standard 19-inch equipment like switches, small server blades, patch panels, and other IT gear used in compact installations.
• Is this enclosure suitable for wall-mount or side-mount installation? Yes. The SRW12UHD is designed for flexible mounting in environments where floor space is limited, enabling secure wall-mount and side-mount configurations to fit tight rooms and closets.
• Does it lock for security? Yes. The front door includes a locking mechanism to help prevent unauthorized access to critical equipment, making it a good choice for classrooms, retail settings, and back-office networks.
• What about ventilation and cooling? The enclosure features ventilated panels and doors to promote airflow around mounted devices, helping to dissipate heat in compact spaces where airflow can be restricted.
• What equipment can I install inside? The enclosure is compatible with standard EIA-310-D 19-inch rack equipment. With adjustable rails and proper cable management, you can install a range of switches, small servers, patch panels, UPS systems, and related network gear appropriate for 12U of space.
