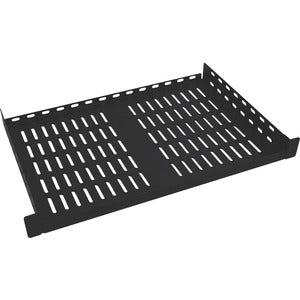

Tripp Lite by Eaton SmartRack 1U Cantilever Toolless Mount Fixed Shelf

Maximize rack space without sacrificing reliability. The Tripp Lite by Eaton SmartRack 1U Cantilever Toolless Mount Fixed Shelf is a durable, professionally engineered solution for organizing and supporting essential equipment in standard 19" racks. Crafted from cold rolled steel with a sleek black finish, this fixed shelf provides a stable, vibration-free platform for servers, switches, patch panels, UPS modules, and other rack-mount hardware. With a 30 lb (13.6 kg) load rating and a practical 12" (305 mm) depth, it delivers dependable support for medium-sized devices while maintaining clean front access for maintenance. The cantilever design is optimized for quick, tool-free installation, enabling IT teams to reconfigure racks rapidly during upgrades, cable management, or new deployments. Whether you’re outfitting a data center, a network closet, or an edge deployment, this SmartRack fixed shelf helps you organize gear, improve airflow, and reduce cable clutter—all within a compact 1U footprint.

• 1U cantilever mount for space-saving efficiency: Designed to fit a standard 1U height, this shelf lets you stack equipment vertically in a 19" rack while preserving front access and airflow. The cantilever configuration minimizes obstruction, making it easy to view indicators, access ports, and service components without removing the shelf or disturbing adjacent gear.
• Heavy-duty 30 lb (13.6 kg) capacity: Built from cold rolled steel with a durable black finish, the shelf provides a robust platform that safely supports a range of devices within its weight limit. Ideal for mid-sized switches, compact servers, patch panels, and other rack-mount hardware that benefits from solid support and stable anchoring in the rack.
• Deep 12 in. (305 mm) depth for versatile equipment placement: The 12" depth accommodates larger modules, power bricks, and cabling behind the front edge, giving you extra room to route cables neatly while keeping critical components accessible for servicing and upgrades. This depth also helps with cable management and improves airflow management in dense racks.
• Quick, tool-free installation: The toolless cantilever mounting system enables fast, secure installation with minimal downtime. There are no complex mounting processes or extensive tools required—just align, snap in, and secure using the included hardware, making rack reconfiguration straightforward for technicians and IT staff.
• Back-to-back configuration for deeper shelves in 2-post racks: When used in pairs back-to-back, two shelves create a deeper fixed shelf suitable for 2-post rack environments. This feature expands storage options in constrained spaces, allowing you to accommodate larger devices or additional cabling while retaining the stability of a solid fixed shelf.

Technical Details of Tripp Lite by Eaton SmartRack 1U Cantilever Toolless Mount Fixed Shelf

• Depth: 12 in. (305 mm)
• Weight capacity: 30 lbs (13.6 kg)
• Material and finish: Cold rolled steel with black powder-coated finish for durability and corrosion resistance
• Mounting style: 1U cantilever shelf; fixed shelf with tool-less installation
• Racking compatibility: Standard 19" racks; designed for use in 2-post racks; back-to-back shelving enables deeper configurations in compatible rack setups
• Hardware included: Required mounting hardware included to facilitate installation

How to install Tripp Lite by Eaton SmartRack 1U Cantilever Toolless Mount Fixed Shelf

Installing this fixed shelf is designed for simplicity and speed, ensuring reliable performance with minimal downtime. Follow these steps to achieve a secure, professional installation that aligns with industry best practices:

• Prepare the rack: Verify you are working with a standard 19" EIA rack and confirm there is adequate space at the chosen height for a 1U shelf. Inspect the rack rails to ensure compatibility with cantilever shelves and check for any obstructions behind the front face where devices will be mounted.
• Position the shelf: Align the shelf with the rack rails at your selected 1U position. The cantilever design typically allows straightforward insertion—no complex alignment is required beyond ensuring level placement and proper seating against the rails.
• Secure the shelf: Use the included mounting hardware to fasten the shelf to the rails. If your kit offers a tool-free attachment option, engage the locking mechanism as directed to achieve a secure, vibration-resistant fit. Avoid overtightening to prevent rail damage.
• Load electronics appropriately: Place devices on the shelf within the 30 lb (13.6 kg) capacity, distributing weight evenly across the shelf. Keep heavier items toward the front and ensure front-edge accessibility for maintenance while maintaining a stable center of gravity to prevent tipping.
• Manage cables and airflow: Route cables along the sides or behind the shelf to maintain clean organization and minimize obstruction to front-to-back airflow. Close the rack doors and verify that cooling pathways remain unobstructed for optimal performance and ambient temperature control.

Frequently asked questions

Q: What is the weight capacity of this shelf?
A: The shelf supports up to 30 lbs (13.6 kg).

Q: What is the depth of the shelf?
A: The shelf depth is 12 inches (305 mm).

Q: Is this shelf compatible with all 19" racks?
A: It is designed for standard 19" racks and uses a 1U height. It is intended for 2-post rack configurations, with back-to-back mounting supporting deeper shelving in compatible setups.

Q: Does installation require specialized tools?
A: No special tools are required. The shelf features a tool-less cantilever mounting system and includes the necessary mounting hardware for straightforward installation.

Q: Can I pair two shelves back-to-back?
A: Yes. Two shelves can be installed back-to-back to create a deeper fixed shelf in a 2-post rack configuration, expanding capacity for larger equipment or more extensive cabling layouts.
