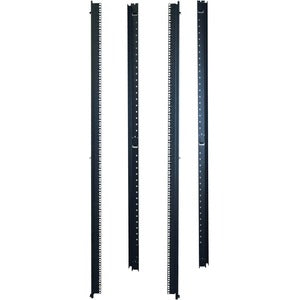

Tripp Lite by Eaton SmartRack 23 in. Wide Mounting Rail Kit (SRVRTRAIL23)

Expand your rack’s versatility with the SRVRTRAIL23 Mounting Rail Kit from Tripp Lite by Eaton. This practical accessory converts standard 19" rack mounting capability into a true 23" wide solution, ideal for TelCo-grade deployments and environments that require a broader mounting footprint. Specifically designed to work with the 42U Wide Racks in the SR42UBWD family, this kit delivers a clean, secure upgrade path for carriers, data centers, and network closets that demand flexibility without compromising reliability. If your equipment footprint leans toward a wider 23" profile, the SRVRTRAIL23 makes it possible to install with confidence while keeping your existing 19" components compatible where needed.

With the SRVRTRAIL23 you gain a robust, space-efficient route to accommodate wider chassis, backplanes, and telecom gear without replacing your entire enclosure. The kit is engineered to withstand the rigors of professional IT and TelCo deployments, offering a sturdy metal construction, precise fit, and a finish designed to resist the bumps and scrapes of daily rack room life. It’s a smart, economical upgrade that unlocks new deployment options and helps you future-proof your rack infrastructure as your equipment footprint evolves.

• Converts standard 19" mounting rails to 23" wide rack mounting capability, enabling TelCo-style and widened deployments inside compatible enclosures.
• Designed for use with 42U Wide Racks in the SR42UBWD family, including SR42UBWD, SR42UBWDSP1, SR42UBWDTAA, SR42UBDPWD, and SR42UBWDVRT, ensuring a seamless fit in specified models.
• Durable steel construction with a protective finish built to endure data-center and telecom environments while maintaining structural integrity and long service life.
• Includes the necessary mounting hardware and a straightforward installation path to minimize downtime and complexity during upgrading or retrofitting.
• Helps deliver improved flexibility for mixed-width equipment in a single enclosure, supporting future growth and simplified cable management as your infrastructure evolves.

Technical Details of Tripp Lite by Eaton SmartRack 23 in. Wide Mounting Rail Kit

• Model: SRVRTRAIL23
• Type: Mounting Rail Kit to convert 19" mounting to 23" wide mounting capability
• Compatibility: 42U Wide Racks in the SR42UBWD family (SR42UBWD, SR42UBWDSP1, SR42UBWDTAA, SR42UBDPWD, SR42UBWDVRT)
• Material & Finish: Steel with durable black finish designed for rack environments
• Contents: Rails and mounting hardware to facilitate installation on compatible SR42U enclosures
• Application: TelCo-grade and enterprise deployments requiring a wider mounting footprint within existing 42U enclosures

how to install Tripp Lite by Eaton SmartRack 23 in. Wide Mounting Rail Kit

• Verify compatibility: Confirm your enclosure model matches one of the SR42U wide racks listed as compatible with the SRVRTRAIL23 kit.
• Prepare the enclosure: Disconnect power and ensure workspace is safe. Remove any obstructing components if necessary to access mounting rails.
• Attach rails: Align the SRVRTRAIL23 rails with the inner posts of the 42U wide rack and secure using the included mounting hardware. Ensure rails are level and square for proper equipment alignment.
• Verify width and depth: Confirm the 23" wide mounting configuration is properly engaged and that the rails extend and retract smoothly if applicable within the enclosure’s design.
• Mount equipment: Install standard 19" equipment onto the newly converted rails, then tighten mounting screws per your equipment guidelines. Re-check alignment and cable routing to maintain good airflow and organization.

Frequently asked questions

• Q: What does the SRVRTRAIL23 do? A: It converts standard 19" rack mounting rails to a 23" wide mounting capability, enabling wider TelCo-style deployments within compatible 42U Wide Racks.
• Q: Which racks are compatible? A: The kit is designed for 42U Wide Racks in the SR42UBWD family, including SR42UBWD, SR42UBWDSP1, SR42UBWDTAA, SR42UBDPWD, and SR42UBWDVRT.
• Q: Does the kit include mounting hardware? A: Yes, the SRVRTRAIL23 kit comes with the necessary mounting hardware to install on compatible SR42U enclosures.
• Q: Can I mix 19" and 23" equipment? A: The kit provides 23" wide mounting capability within the enclosure, allowing you to house devices with wider footprints while still accommodating standard 19" gear where feasible.
• Q: Is this suitable for TelCo environments? A: Yes—designed to support TelCo-style deployments by expanding the mounting footprint to 23" in compatible SR42U wide racks.
