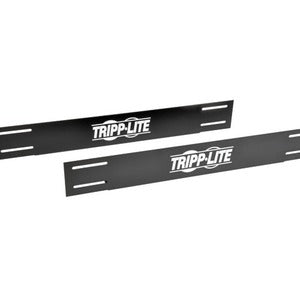

Tripp Lite by Eaton SmartRack 4-Post Rack-Mount Installation Kit for Select UPS Systems, Side Mount

The Tripp Lite by Eaton SmartRack 4-Post Rack-Mount Installation Kit is specifically designed to enhance your rack-mounting experience by providing a robust and secure solution for heavy UPS systems and other critical networking equipment. This installation kit is engineered to support a wide range of EIA-standard four-post racks, ensuring compatibility and ease of use. With its durable construction and thoughtful design, this installation kit leaves your front and rear mounting holes available for additional equipment, maximizing your rack space efficiently.

• Heavy-Duty Support: The 4POSTRAILSM kit is engineered to support up to 250 pounds, making it ideal for heavy UPS systems and other essential networking equipment.
• Compatibility: Designed for EIA-standard four-post racks, this kit accommodates mounting depths of 16.5 to 21.5 inches, making it versatile for various rack setups.
• Easy Installation: Includes all necessary rack-attachment hardware for square-hole mounting, simplifying the installation process and allowing you to set it up quickly.
• Space Optimization: The side mount design ensures that front and rear mounting holes are left free for additional equipment, maximizing the utility of your rack space.
• Versatile Application: In addition to UPS systems, the 4POSTRAILSM is compatible with other heavy networking or power protection equipment featuring a rectangular chassis of 17.5 inches in width.

Technical Details of Product

• Model: 4POSTRAILSM
• Weight Capacity: 250 lbs
• Mounting Depth Compatibility: 16.5 to 21.5 inches
• Width Compatibility: 17.5 inches for rectangular chassis
• Rack Type: EIA-standard four-post racks
• Included Hardware: Rack-attachment hardware for square-hole mounting

How to Install

Installing the Tripp Lite SmartRack 4-Post Rack-Mount Installation Kit is straightforward. Follow these steps for a successful installation:

1. Gather all tools required for installation, including a wrench and screwdriver.
2. Locate the square mounting holes on the vertical rails of your rack.
3. Attach the L brackets to the outside edges of the rack's vertical mounting rails, ensuring they align with the square holes.
4. Secure the brackets using the provided rack-attachment hardware.
5. Once both brackets are firmly attached, double-check the installation for stability.
6. Your UPS or other equipment can now be mounted on the front or rear mounting holes of the rack.

Frequently Asked Questions

1. Is this installation kit compatible with all types of UPS systems?

While the 4POSTRAILSM kit is designed to support heavy UPS systems, its compatibility may vary depending on the specific dimensions of your UPS. It is ideal for UPS systems with a rectangular chassis width of 17.5 inches.

2. Can I use this kit for equipment other than UPS systems?

Yes, this installation kit is versatile and can be used for other heavy networking or power protection equipment that fits within the specified dimensions.

3. What tools do I need for installation?

You will need basic tools such as a wrench and screwdriver to install the brackets. All required hardware is included with the kit.

4. How much weight can the installation kit support?

The 4POSTRAILSM installation kit supports up to 250 pounds, making it suitable for heavy equipment.

5. What is the mounting depth range for this kit?

The installation kit is compatible with mounting depths ranging from 16.5 to 21.5 inches.
