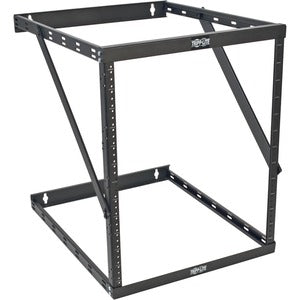

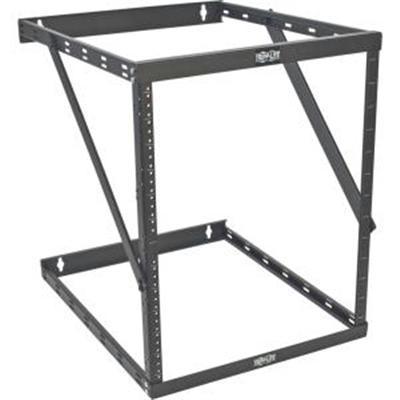

Tripp Lite SmartRack Expandable Low-Profile UPS-Depth Wall-Mount Rack

Meet a scalable, space-saving solution designed for today’s compact IT environments and tomorrow’s growth plans. The Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack delivers a compact, durable enclosure that fits neatly into tight spaces while offering the flexibility to expand as your rack deployments expand. Built for small server setups, network equipment, and UPS-depth devices, this rack blends a rugged open-frame design with smart engineering to maximize airflow, accessibility, and ease of maintenance in offices, data closets, telecom rooms, and small data centers. Whether you’re starting with a modest footprint or planning for future expansion, this wall-mount rack provides a reliable platform that grows with your infrastructure without sacrificing performance or reliability.

• Expandable 8U/12U/22U capacity to scale with your equipment needs as your network grows.
• Low-profile UPS-depth wall-mount 2-post open-frame design for compact spaces and quick access to equipment and cables.
• Durable steel construction with a powder-coated finish to withstand daily IT room use and provide long-lasting support.
• Open-frame architecture enhances airflow and simplifies installation, maintenance, and cable routing in tight environments.
• Easy integration with UPS units and related hardware, enabling efficient deployment in small offices or closet spaces where space is at a premium.

Technical Details of Tripp Lite SmartRack

• Expandable rack capacity: 8U, 12U, and 22U configurations to accommodate growing equipment loads.
• Mounting style: Wall-mount, 2-post open-frame construction designed for rapid access and straightforward installation.
• Depth compatibility: UPS-depth oriented design that accommodates deeper equipment common with uninterruptible power supplies and related hardware.
• Material and finish: Robust steel construction with a durable powder-coated finish for reliability in demanding IT environments.
• Intended use: Ideal for small to mid-sized server and networking deployments that require a compact, expandable, and accessible enclosure.

how to install Tripp Lite SmartRack

To ensure a safe, solid installation that takes full advantage of the rack’s compact footprint and expandable design, follow these practical steps:

• Assess the installation location: Choose a wall with adequate structural support and confirm access to electrical outlets and ventilation space. Use a stud finder to locate solid studs for mounting.
• Prepare mounting rails and hardware: Unpack the rack, verify that all mounting rails, screws, anchors, and leveling feet (if included) are present, and organize them for easy access during installation.
• Mark and drill anchor points: Based on your rail configuration and wall type, mark the locations for mounting holes. Drill pilot holes and insert appropriate wall anchors or screws suited to the wall material (concrete, drywall with studs, or another substrate).
• Attach rails to the wall: Secure the mounting rails to the wall studs or anchors, ensuring they are level and firmly fastened to bear the weight of the equipment to be installed.
• Install the open-frame rack and load equipment: With the rails secure, slide the rack frame into place and secure it as needed. Begin installing equipment from the bottom up for stability, then route cables neatly to maximize airflow and ease of access.
• Perform final checks and testing: Confirm that the rack is plumb, that doors or panels open smoothly (if applicable), and that all equipment powers up without interference. Verify cable management and airflow clearance around the face and rear of the rack.

Frequently asked questions

• Q: What does expandable 8U/12U/22U mean? A: It means the rack can be configured to hold 8, 12, or 22 rack units, allowing you to start with a smaller footprint and expand as your equipment inventory grows.
• Q: Is this rack suitable for UPS equipment? A: Yes. The UPS-depth design is intended to accommodate larger uninterruptible power supplies and related hardware while maintaining a compact wall-mount footprint.
• Q: Can I install this myself? A: Absolutely. The rack is designed for straightforward wall-mount installation with adjustable rails and standard mounting hardware. Ensure the wall can support the load and follow installation guidelines for safety.
• Q: What environments is it best suited for? A: It’s ideal for small offices, data closets, telecom rooms, and lab or clinic spaces where a compact, expandable rack is needed without sacrificing accessibility or airflow.
• Q: Does it come with rails and hardware? A: The rack includes mounting rails and hardware suitable for typical wall installations; depending on your wall material, you may need additional anchors or supports.
