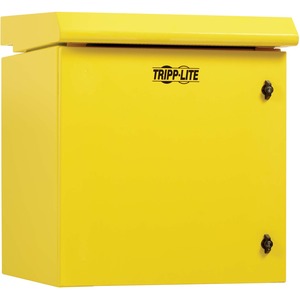

Tripp Lite by Eaton SmartRack Industrial Enclosure – NEMA 3R Wall Mount, 12U, 23" Depth, Yellow

The Tripp Lite by Eaton SmartRack Industrial Enclosure is built for performance under pressure. Engineered to safely house rack-mounted equipment in demanding environments, this NEMA 3R-rated wall-mount enclosure delivers robust protection, reliable cooling, and secure access in a compact footprint. Its bright yellow powder-coated steel construction stands up to industrial use, outdoor proximity, and high-traffic areas where visibility and safety matter. This enclosure is ideal for security installations, law enforcement field deployments, and industrial facilities where equipment must be protected from dust, moisture, and tampering while remaining easily serviceable. With a 12U rack capacity and a generous 23-inch depth, it provides ample space for servers, switches, patch panels, power distribution units, and other standard 19-inch equipment. The design emphasizes modularity and ease of installation, so IT managers and technicians can deploy equipment quickly, maintain clean cable management, and scale as needs evolve. The integration of a cooling fan with a thermal switch ensures proactive thermal management, keeping critical components within safe operating temperatures even in hot environments or during high-load periods. In short, this SmartRack enclosure combines security, accessibility, and resilience to protect sensitive electronics in spaces where rugged reliability is non-negotiable.

• 12U rack capacity: Provides ample vertical space for multiple devices such as servers, switches, UPS, PDUs, and storage devices while preserving a compact wall-mount footprint for constrained areas.
• 23" depth: Supports standard 19-inch equipment with sufficient clearance for cables and rear connections, enabling clean, professional installations and easy maintenance access.
• NEMA 3R protection: Built to withstand rain, sleet, and outdoor exposure, offering dependable weather resistance for semi-outdoor or outdoor-adjacent installations without compromising security.
• Locking, tamper-resistant enclosure: Features a secure front door with a reliable latch, enhancing physical security in public, semi-public, or high-traffic environments where equipment must be safeguarded against tampering.
• Fan with thermal switch: Integrated cooling equipment helps regulate temperatures inside the cabinet, extending equipment life by mitigating heat buildup and reducing risk of thermal throttling in demanding workloads.

Technical Details of Tripp Lite by Eaton SmartRack Industrial Enclosure

• Model family: SmartRack Industrial Enclosure by Tripp Lite (Eaton)
• NEMA rating: 3R, suitable for outdoor and semi-outdoor applications with rain and dust protection
• Mounting type: Wall-mount enclosure designed for secure mounting to wall surfaces
• Material and finish: Heavy-gauge steel with a yellow powder-coated finish for visibility and corrosion resistance
• Internal capacity: 12U of rack space configured for standard 19-inch equipment
• Depth: 23 inches from front to back to accommodate rear cable management and accessories
• Doors and hardware: Front, locking door with reinforced hinges and secure latch
• Ventilation and cooling: Integrated fan with thermal switch to maintain safe operating temperatures
• Intended environments: Security-focused facilities, law enforcement, industrial settings, and other environments where rugged protection is required
• Color: Bright yellow for high visibility in active workspaces

How to Install Tripp Lite by Eaton SmartRack Industrial Enclosure

• Plan your layout: Identify a sturdy wall with solid support that can bear the weight of the empty enclosure plus loaded equipment. Consider access, cable routing, and ventilation requirements.
• Prepare mounting hardware: Use the manufacturer-supplied anchors suitable for your wall type (concrete, masonry, or wood). Confirm that you have the appropriate screws, spacers, and washers for secure installation.
• Mount the enclosure to the wall: Align the enclosure, mark drill points through the mounting holes, drill or drill-dowel as needed, then fasten securely. Check for plumb alignment to ensure doors close properly and cables won’t interfere with the door or hinges.
• Install internal rack components: Attach adjustable mounting rails inside the 12U space. Install 19-inch equipment (servers, switches, patch panels, PDUs) on the rails, beginning from the bottom and working upward to maintain weight distribution and accessibility.
• Route and manage cables: Plan power, data, and management pathways. Use cable organizers, grommets, and rear openings to minimize clutter, improve airflow, and simplify future maintenance. Leave space behind equipment for airflow and maintenance.
• Finalize security and testing: Close the front door, engage the locking mechanism, and power up each device. Monitor internal temperatures using the fan’s thermal switch, ensuring the cooling system maintains a safe environment for all installed components.
• Documentation and labeling: Create a simple map of equipment locations, cable routes, and power circuits. Label cables and devices for easier future servicing and faster fault isolation.

Frequently asked questions

• What is the primary purpose of this enclosure? It provides secure, weather-resistant housing for rack-mounted equipment in security, law enforcement, and industrial settings, with a focus on wall-mount practicality and rugged protection.
• Is the enclosure suitable for outdoor use? Yes. With a NEMA 3R rating, it is designed to resist rain, sleet, and other outdoor elements while safeguarding internal electronics.
• What does 12U capacity mean for my equipment? 12U refers to the vertical space available on the internal mounting rails, allowing multiple 19-inch devices to be mounted in a single enclosure while maintaining accessible cable management.
• Can I access equipment easily for maintenance? The front-locking door provides secure access, and the interior layout supports straightforward installation, removal, and maintenance of equipment without extensive disassembly.
• Does it include cooling, and how is temperature controlled? The enclosure features a fan with a thermal switch to help manage internal temperatures, protecting devices from overheating in hot environments or during peak workloads.
• Is this enclosure secure against tampering? Yes. It has a locking, tamper-resistant door designed for spaces where equipment security is essential, such as security rooms or public-facing facilities.
