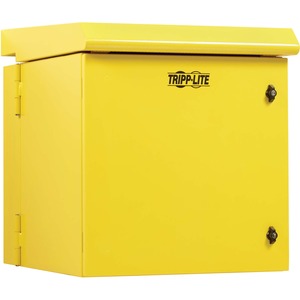

Tripp Lite SmartRack Industrial Enclosure - NEMA 3R, Wall Mount, 12U

Discover a compact, rugged enclosure solution designed for demanding network environments. The Tripp Lite SmartRack Industrial Enclosure is a purpose-built, wall-mount cabinet that combines sturdy steel construction with a weather-resistant NEMA 3R rating, making it ideal for housing 12U of 19-inch rack-mount equipment such as switches, patch panels, and small server devices. With a 28-inch depth, this enclosure provides ample space for organized cable management, airflow, and future expansion, all while preserving a clean, professional look in data centers, telecom rooms, manufacturing floors, or remote closets.

• Space-saving wall-mount design: This enclosure is engineered to occupy minimal floor space while delivering the full protection of a 12U rack. Its wall-mounted footprint reduces clutter and frees up valuable room for other equipment, making it perfect for compact data rooms or distributed IT closets where space is at a premium.
• Rugged, secure enclosure with locking access: Constructed from steel and finished with a durable yellow powder coating, the SRN3RY12US stands up to industrial environments and daily use. A locking door provides controlled access to sensitive equipment, helping to deter tampering and promote physical security for network gear and patch bundles.
• NEMA 3R protection for indoors and outdoors (where permitted): Rated for rain, sleet, and corrosion-resistant environments, this enclosure keeps critical equipment safe from the elements when used in semi-exposed spaces. It’s a versatile choice for data centers adjacent to loading docks, workshops, or service bays where environmental exposure is a concern.
• Hinged back design with 12U, 19-inch rails: The interior features standard 19-inch rack rails to support a variety of rack-mount devices. The hinged back access makes installation and maintenance simple—cabling, equipment changes, and routine servicing can be performed with minimal disruption to the front of the cabinet.
• Integrated cooling support with a fan and thermal switch: A built-in fan with a thermal switch helps maintain safe operating temperatures for installed hardware. This promotes reliability by aiding airflow and preventing heat buildup in enclosed spaces where convection may be limited, especially when multiple devices are densely populated inside the enclosure.

Technical Details of Tripp Lite SmartRack Industrial Enclosure

• Model: SRN3RY12US
• Enclosure type: Industrial wall-mount steel enclosure
• Material: Steel with yellow powder-coated finish
• Mounting style: Wall-mount
• Protection rating: NEMA 3R (weather- and rain-protected exterior use when installed per guidelines)
• Depth: 28 inches
• Rack capacity: 12U of 19-inch equipment
• Door and access: Locking, hinged back door for easy service access
• Ventilation: Internal fan with thermal switch to help regulate temperature
• Color/finish: Yellow powder-coated steel
• Internal layout: Standard 19-inch rack rails to accommodate commonly used network gear, switches, patch panels, and small servers

How to Install Tripp Lite SmartRack Industrial Enclosure

Installing the Tripp Lite SmartRack Industrial Enclosure is designed to be straightforward, with a focus on safety, stability, and long-term reliability. Follow these practical steps to ensure a secure, compliant setup that protects your critical equipment and promotes efficient cable management.

1) Plan the installation location — Choose a wall with adequate structural support to bear the weight of the empty enclosure plus fully populated equipment. Consider accessibility for front servicing and rear cabling, as well as proper clearance for ventilation and door operation. Verify that the location offers convenient power sources and network connectivity while remaining protected from hazards such as water exposure or extreme temperature fluctuations.

2) Prepare mounting hardware — Gather appropriate mounting hardware (screws or anchors suitable for your wall material and studs). The enclosure is designed to be fastened securely to the wall, typically using mounting holes aligned with the cabinet body. Use sturdy fasteners rated for the expected load, and ensure you have enough space to accommodate the 28-inch depth and 12U internal space.

3) Attach the enclosure to the wall — With professional help if needed, locate wall studs and mark mounting points through the enclosure’s mounting holes. Pre-drill as required, align the cabinet, and secure it firmly using the recommended hardware. Double-check that the enclosure sits plumb and flush to the wall to provide proper door operation and a tight seal where applicable.

4) Prepare the interior for equipment — Remove or loosen the hinged back panel to access the interior. Install the 19-inch rack rails if they are not pre-installed, ensuring they are level and aligned for proper mounting of network devices. Determine the optimal order for mounting equipment (typically, heavier items lower in the rack) to maintain balance and ease of access for cabling.

5) Install equipment and manage cabling — Begin mounting network switches, patch panels, or small servers on the rails. Route power and data cables neatly using cable ties or Velcro straps, keeping cables away from the cooling fan and airflow paths. Leave sufficient clearance behind devices to prevent heat buildup. Close the hinged back panel and secure the locking door for a tidy, secure enclosure.

6) Verify cooling and door access — Confirm that the internal fan operates correctly and that the thermal switch activates as temperatures rise. Open and close the door to ensure easy access during maintenance windows. Test lock operation to ensure the enclosure remains protected when unattended.

7) Final checks — Confirm that all equipment is securely mounted, cables are properly organized, and there is no obstruction to the door or the ventilation system. Label cables for future maintenance, and perform a quick functional check of connected devices to verify proper network operation after installation.

Frequently asked questions

• Q: What devices can fit inside the SRN3RY12US? A: It accommodates up to 12U of 19-inch rack-mount equipment, such as network switches, patch panels, and small servers. The 28-inch depth provides ample space for cable management and passive cooling, making it suitable for compact data rooms and wall-mounted network closets.
• Q: Is this enclosure suitable for outdoor use? A: It is designed to meet NEMA 3R standards, which provide protection against rain and splashing water in outdoor or semi-exposed environments when installed according to manufacturer guidelines. Always confirm local electrical and building codes before placing outdoor-ready equipment in any enclosure.
• Q: Does the enclosure come with locking doors? A: Yes. The SRN3RY12US features a locking, hinged back door to secure sensitive equipment and prevent unauthorized access while still allowing easy maintenance when needed.
• Q: What kind of cooling does it provide? A: The enclosure includes a fan with a thermal switch to help manage internal temperatures by promoting airflow. This helps prevent heat buildup in confined spaces where natural convection is limited.
• Q: How do I install this enclosure? A: Installation involves selecting a sturdy wall, mounting the cabinet securely, installing 19-inch rack rails, mounting equipment, and organizing cables. The hinged back design makes rear access straightforward, while the front locking door secures equipment when not in use.
• Q: What color is the enclosure? A: The enclosure features a durable yellow powder-coated finish that enhances visibility in industrial settings and helps reduce accidental bumps or misplacement of equipment within busy workspaces.
