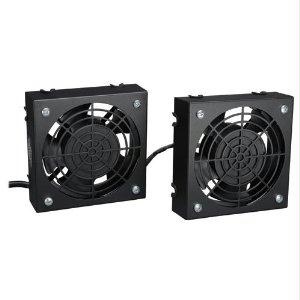

Tripp Lite by Eaton SmartRack Wall-Mount Roof Fan Kit — 2-120V High-Performance Fans, 210 CFM, 5-15P Plug

The Tripp Lite by Eaton SmartRack Wall-Mount Roof Fan Kit is the ultimate solution for ensuring robust ventilation in wall-mount enclosure cabinets. Designed to deliver reliable cooling where space is at a premium, this kit combines two high-performance fans with a compact, easy-to-install footprint. It helps maintain optimal temperatures for network switches, servers, and other sensitive equipment, reducing the risk of heat-related downtime and extending the life of your IT infrastructure. Ideal for data centers, server rooms, and office environments, the SmartRack roof fan kit integrates seamlessly with SmartRack enclosures to deliver efficient airflow without compromising on security or aesthetics.

• Powerful dual 120V operation: This kit houses two high-performance fans that work together to move heat out of your wall-mount enclosure, delivering continuous airflow to prevent hot spots and maintain equipment reliability in confined spaces.
• Impressive airflow with a compact footprint: With a total airflow of 210 CFM, the kit provides strong cooling performance inside tight cabinet interiors while maintaining a slim, unobtrusive profile that won’t crowd rack spaces or obstruct doors and accessories.
• Plug-and-play 5-15P connectivity: The included 5-15P plug ensures straightforward connection to standard 120V outlets or rack power distribution options, enabling quick installation and minimal downtime during deployment or upgrades.
• Rugged, enclosure-friendly design: Built for continuous operation in data centers and edge environments, the fan kit features a sturdy housing and mounting hardware designed to withstand vibration and reduce resonance, contributing to quieter, more stable performance.
• Easy integration and neat cable management: The kit is designed to mount securely on SmartRack wall-mount enclosures, with simple cable routing that keeps power and airflow paths clear, preserving a professional and organized look for the cabinet interior.

Technical Details of Tripp Lite by Eaton SmartRack Wall-Mount Roof Fan Kit

• Configuration: 2 x 120V high-performance axial fans
• Airflow: Up to 210 CFM total
• Power connector: 5-15P plug for standard 120V AC supply
• Mounting: Wall-mount roof fan kit designed for SmartRack enclosures; includes mounting brackets and hardware
• Construction: Rugged, durable housing suitable for continuous operation in data centers and offices
• Compatibility: Specifically designed for SmartRack wall-mount enclosure cabinets
• Noise and vibration: Engineered for efficient cooling with emphasis on stable, low-noise performance
• Maintenance: Replacement parts and fans available through standard Tripp Lite by Eaton channels

how to install Tripp Lite by Eaton SmartRack Wall-Mount Roof Fan Kit

• Power down the enclosure: Before beginning installation, safely power down and unplug the cabinet to prevent any electrical hazards during mounting.
• Choose the mounting location: Identify a suitable top or roof area on the wall-mount SmartRack enclosure where airflow will be directed into the cabinet while avoiding interference with doors, hinges, or other accessories.
• Attach mounting brackets: Use the included hardware to secure the brackets to the cabinet surface, ensuring the fans are aligned to maximize intake and exhaust paths for optimal airflow.
• Install the fans: Mount the two fans onto the brackets in the correct orientation so that air moves through the cabinet in the intended direction. Tighten fasteners evenly to minimize vibration and ensure a solid fit.
• Connect power: Plug the supplied 5-15P power connector into a compatible 120V outlet or rack power strip. Route the cables neatly to prevent obstruction of doors or cables inside the cabinet.
• Route and secure cabling: Use zip ties or tie-straps to secure power and fan cables, keeping airflow paths clear and preserving a tidy cabinet interior.
• Test operation: Restore power and switch on the fans. Verify that air is circulating as expected, listen for unusual noise, and check that the enclosure temperature stabilizes under load conditions.

Frequently asked questions

• What does this fan kit include?
• It includes two high-performance 120V fans designed to fit SmartRack wall-mount enclosures, plus mounting hardware and a 5-15P plug for easy power connection.
• How much airflow does it provide?
• The kit delivers up to 210 CFM of total airflow, helping to move heat away from equipment and prevent hot spots inside the cabinet.
• What power source is required?
• The kit uses a standard 120V AC supply with a 5-15P plug, making it compatible with common data-center and office power setups.
• Is the installation difficult?
• No, the design emphasizes quick, straightforward installation with included brackets and hardware, and it is intended for professionals managing SmartRack enclosures.
• Can I service or replace components if needed?
• Yes, the kit uses standard components, and replacements for fans or related parts are available through Tripp Lite by Eaton channels; refer to the product manual for part numbers.
