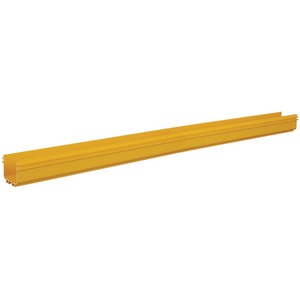

Tripp Lite by Eaton Toolless Straight Channel Section for Fiber Routing System

Designed for professional data centers and demanding network environments, this Toolless Straight Channel Section provides a robust, scalable solution for organizing fiber optic cables within a SmartRack fiber routing system. With a generous 120 x 120 mm cross-section and a lengthy 1220 mm (48 in) footprint, it creates a clean, efficient pathway for horizontal fiber runs while protecting delicate fibers from abrasion, tangling, and accidental impact. Built from high-impact PVC, it balances durability with light weight for quick reconfigurations during upgrades or routine maintenance. ideal for high-density cable management, this channel supports orderly growth, reduces downtime, and helps preserve signal integrity by keeping cables aligned and strain-free in a secure, accessible routing channel.

• Toolless installation for rapid deployment: The straight channel is engineered for quick, tool-free assembly in busy data centers and network closets. Snap-fit connections and effortless alignment let technicians extend or re-route fiber runs without disruptive screwdrivers, enabling faster changes, fewer service interruptions, and greater consistency across large-scale rack deployments.
• High-impact PVC construction: This channel uses durable, lightweight PVC that withstands the rigors of daily rack activity—drops, bumps, and routine cable handling—while remaining easier to maneuver than metal alternatives. The result is a protective, modular pathway that reduces cable wear and contributes to a neat, professional rack appearance.
• Optimized cross-section for fiber cables: With a 5 x 5 inch (120 x 120 mm) footprint, the straight channel provides ample space for multiple fiber strands while preserving a compact profile. This design supports high-density cable assemblies and minimizes crowding, improving air flow, inspection access, and overall cable management efficiency.
• Horizontal routing to safeguard fiber integrity: The straight channel offers a stable, horizontal path that minimizes bending stress on fiber optic cables. Consistent routing reduces microbends and mechanical strain, supporting reliable performance and easier testing and maintenance in busy server rooms and data halls.
• SmartRack integration for scalable fiber management: Built to connect with the SmartRack SRFC5STR48 system, this channel delivers seamless compatibility with other fiber routing components. The result is a modular, scalable solution that simplifies deployment, standardizes cable pathways across racks, and supports future expansion without sacrificing organization or accessibility.

Technical Details of Tripp Lite by Eaton Toolless Straight Channel Section for Fiber Routing System

• Dimensions: 120 x 120 x 1220 mm (5 x 5 x 48 in)
• Material: High-Impact PVC
• Function: Straight channel section for horizontal fiber routing
• Installation: Toolless design for quick setup
• Compatibility: Designed to connect with SmartRack SRFC5STR48
• Applications: Fiber optic cable management within a fiber routing system

How to Install Tripp Lite Toolless Straight Channel Section for Fiber Routing System

Follow these steps to install the straight channel quickly and safely, ensuring a clean and reliable fiber routing path:

• Plan and measure the routing path to confirm the 48 in length matches your rack depth and SRFC components. Determine the best entry and exit points to minimize cable bends and maximize accessibility for maintenance.
• Prepare the mounting area on the rack or enclosure, ensuring a clean, unobstructed path for cables. Clear any obstructions and verify that adjacent components will not hinder channel connections or cable movement.
• Connect channel segments using the tool-free connectors provided. Align segments precisely and snap them into place, creating a continuous straight run that aligns with the SRFC5STR48 components for seamless integration.
• Route fiber cables through the channel, maintaining the recommended bend radii and avoiding sharp kinks or pinching points. Leave adequate slack where necessary to accommodate future changes or equipment movement.
• Secure end caps or covers as required, then test the pathway by gently flexing cables within the channel and confirming smooth movement without snagging. Inspect for any cables that may be under tension and adjust as needed for optimal performance.

Frequently asked questions

• Q: What are the channel's cross-sectional dimensions? A: 5 x 5 inches (120 x 120 mm).
• Q: What is the overall length of the straight channel? A: 48 inches (1220 mm).
• Q: Is installation tool-free? A: Yes, the channel features a toolless design for quick deployment and reconfiguration.
• Q: What type of cables does it support? A: It is designed for fiber optic cables within a SmartRack fiber routing system.
• Q: Which SmartRack components is it compatible with? A: It is designed to connect with SmartRack SRFC5STR48 for cohesive integration and scalable fiber management.
