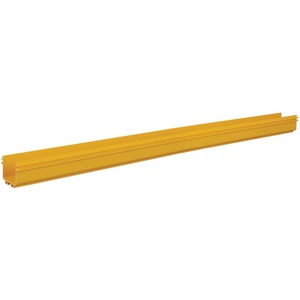

Tripp Lite by Eaton Toolless Straight Channel Section for Fiber Routing System

Meet a pivotal component for organized, scalable fiber deployments: the Tripp Lite by Eaton Toolless Straight Channel Section. Specifically designed for horizontal fiber routing within the SmartRack fiber routing ecosystem, this straight channel section carries fiber optic cables with precision and reliability. Its dimensions—120 x 120 x 1830 mm (5 x 5 x 72 in)—offer ample space for progressive fiber builds, ensuring you have room to grow without sacrificing order or airflow. Crafted from high-impact PVC, the channel combines rugged durability with a lightweight profile, making installation straightforward in data centers, network closets, and edge environments. The toolless design means you can configure and reconfigure routing paths quickly, reducing downtime and empowering IT teams to respond to changing network requirements without pulling out a toolkit. In short, this channel section helps you create cleaner cable pathways, protect cables from abrasion, and simplify ongoing maintenance while fitting neatly into the broader SmartRack fiber management system.

• Toolless Straight Channel Section: Designed for fast, tool-free installation and reconfiguration, allowing your fiber routing paths to adapt as your network evolves. Perfect for dynamic data centers where space, time, and uptime matter as much as performance.
• High-Impact PVC Construction: A durable yet lightweight material choice that withstands daily rack activity, incidental bumps, and dust exposure while keeping overall weight manageable for installation and adjustments.
• Horizontal Fiber Routing: Specifically shaped to carry fiber optic cables horizontally through your routing system, promoting clean pathways, reduced cable tension, and dependable signal integrity across runs.
• Generous Dimensions for Growth: With a cross-section of 120 x 120 mm and a length of 1830 mm (5 x 5 x 72 in), this section supports multiple fibers and accommodates future expansion without rework.
• Seamless SmartRack Compatibility: Engineered to integrate with the SmartRack fiber routing ecosystem, ensuring cohesive cable management when paired with other SR components for a unified, scalable solution.

Technical Details of Tripp Lite by Eaton Toolless Straight Channel Section for Fiber Routing System

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install Tripp Lite by Eaton Toolless Straight Channel Section for Fiber Routing System

• Step 1: Plan your fiber routing path within the SmartRack enclosure. Identify straight runs where the channel section will be installed and ensure there is adequate clearance for cables and any adjacent components.
• Step 2: Position the straight channel section in alignment with adjacent SR components. Take advantage of the toolless design to connect sections without specialized hardware, ensuring smooth, continuous runs across joins.
• Step 3: Connect the channel section to the routing framework or mounting rails using the intended toolless connectors or compatible quick-connect mechanisms. Confirm a secure fit that resists movement during system operation.
• Step 4: Route fiber cables into the channel, taking care to maintain proper bend radii and avoiding excessive tension. Use cable guides or dividers if available to keep fibers organized and protected against abrasion.
• Step 5: Inspect the installed path for clearance, airflow, and ease of maintenance. Remove any obstructions and perform a light cable pull test to verify that fibers can be accessed and serviced without disconnecting other components.

Frequently asked questions

• Q: What material is the channel made from?

  A: The channel is constructed from high-impact PVC, offering durability and lightweight handling suitable for frequent rack adjustments.

• Q: What are the dimensions?

  A: The channel section measures 120 x 120 mm in cross-section with a length of 1830 mm (5 x 5 x 72 in).

• Q: Is this component tool-less?

  A: Yes. It is designed for toolless installation and reconfiguration to streamline changing routing paths without specialized tools.

• Q: Is it compatible with other SmartRack components?

  A: Yes. It is designed to integrate with the SmartRack fiber routing system and works in harmony with other SR-series components for cohesive cable management.

• Q: What is the primary purpose of this channel?

  A: Its main function is to provide a straight, horizontal path for fiber optic cables within a routing system, helping to protect fibers, simplify organization, and improve airflow and serviceability.
