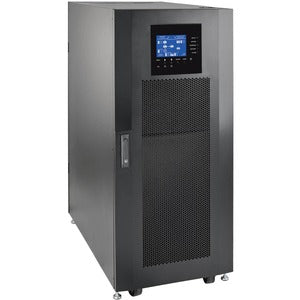

Tripp Lite by Eaton SV20KS1P1B SmartOnline 20kVA 3-Phase Small-Frame Modular UPS

Discover enterprise-grade protection with the Tripp Lite by Eaton SV20KS1P1B SmartOnline UPS. This 20kVA small-frame, 3-phase online UPS combines a modular, scalable architecture with high-efficiency operation to deliver precise, uninterrupted power for mission-critical equipment. Designed for data centers, server rooms, and industrial facilities, the SV Series provides true online, double-conversion protection that maintains clean, stable output even in the face of fluctuating utility conditions. Its compact, modular footprint enables easy growth as your workloads expand, while hot-swappable power and battery modules help minimize downtime and maintenance costs. Whether you’re protecting racks of servers, networking gear, or sensitive industrial automation, this UPS offers intelligent power management, robust fault protection, and seamless integration with your existing data center infrastructure.

• Modular, scalable architecture for future growth: add more power modules or battery modules without replacing the entire system, enabling you to scale runtime and capacity as demand increases.
• 3-phase input and output with online double-conversion protection: delivers clean, continuous power with excellent voltage and frequency stability for critical loads, even during utility disturbances.
• High efficiency and reduced total cost of ownership: designed for optimized energy use in data centers and industrial environments, helping lower cooling and operating costs over the life of the system.
• Intelligent monitoring and management: supports USB, RS-232, and optional network management cards for remote monitoring, alerting, and integration with data center infrastructure management (DCIM) software.
• Compact small-frame footprint with flexible installation: ideal for space-constrained environments, offering reliable protection without compromising performance or expandability.

Technical Details of Tripp Lite by Eaton UPS 20kVA Smart Online 3-Phase Small Frame Modular 1 Battery

• Model: SV20KS1P1B
• Topology: Online double-conversion (on-line) UPS
• Output Power: 20 kVA / 16 kW (nominal, 0.8 PF)
• Phase Configuration: 3-phase input and 3-phase output
• Configuration: Small-frame modular design with hot-swappable power and battery modules
• Input Voltage Range: Configurable three-phase input voltages to match facility power availability
• Output Voltage: Configurable three-phase output voltages to support connected equipment
• Efficiency: High-efficiency operation optimized for data centers and industrial environments
• Battery: 1 battery module included; supports scalable runtime with additional modules
• Management Interfaces: USB, RS-232; optional network management card available for SNMP and DCIM integration
• Protection: Advanced fault, overload, and short-circuit protection with audible and visual alarms
• Environment and Mounting: Designed for clean-room-like environments with suitable ventilation; suitable for rack or floor-mounted installations depending on configuration
• Warranty and Support: Standard manufacturer warranty with service options for installation, maintenance, and extended coverage

How to install Tripp Lite UPS 20kVA SmartOnline

• Plan the installation location with adequate ventilation, clearance for service access, and proper airflow around the UPS and battery modules. Ensure the room is within the manufacturer’s environmental specifications for temperature and humidity.
• Prepare the electrical connections: verify the availability of the appropriate three-phase input power and plan the distribution to the protected loads. Ensure proper grounding and compliance with local electrical codes before connecting the UPS.
• Unpack and inspect components: confirm all modules and accessories (power modules, battery module, cables) are present and undamaged. Install modular components according to the installation guide, keeping a clear path for maintenance.
• Install the UPS chassis and battery module: mount securely in the designated rack or floor-standing enclosure as required by your site. Connect the battery module firmly to the UPS, following the recommended sequence to prevent miswiring or damage.
• Connect input and output wiring: attach the three-phase input cables to the UPS input terminals and route the three-phase load cables from the UPS output to the protected equipment. Verify neutral and grounding connections are correct and secure.
• Power up and configure: turn on the UPS and perform a self-test to verify operational status. Configure output voltage, frequency, and any site-specific settings. If using an optional network management card, install it and enable remote monitoring to begin receiving alerts and performance data.
• Commission and validate: run runtime and integration tests to verify battery operation, load transfer, and communication with DCIM tools. Document the configuration and establish standard operating procedures for maintenance and fault response.
• Documentation and support: retain the product manuals, wiring diagrams, and warranty information. Register the device with your service provider or vendor to access firmware updates, spare parts, and technical support when needed.

Frequently asked questions

• What does 20kVA mean for this UPS? The 20kVA rating indicates the apparent power capability of the UPS. In most configurations, this translates to about 16 kW of real power (assuming an 0.8 power factor), which accommodates a broad range of servers, storage, and networking equipment while leaving headroom for transient loads.
• What is “SmartOnline” and why is it important? SmartOnline refers to the online double-conversion topology used by this UPS, which continuously converts incoming AC power to DC and back to clean AC power for the load. This results in highly stable voltage and frequency, excellent protection against outages, sags, surges, and harmonic distortion, and immediate power delivery during utility interruptions.
• Can I expand runtime without replacing the UPS? Yes. The SV20KS1P1B is designed with modular, hot-swappable battery modules. You can add additional battery modules to extend runtime as your workload increases, without removing or replacing the core UPS system.
• How does remote monitoring work? The UPS supports USB and RS-232 connections, with optional network management cards for SNMP and DCIM integration. This enables proactive alerts, remote configuration, and centralized monitoring to reduce mean time to repair (MTTR) and help manage capacity planning.
• Is this unit suitable for a small data center or rack environment? Absolutely. The SV20KS1P1B’s small-frame modular design is intended for space-constrained environments. It delivers enterprise-grade protection while fitting into compact footprints, whether in a dedicated equipment room or a partial rack install within a data center.
• What about installation and service? Installation typically involves electrical hard-wiring by qualified personnel, battery module connection, and network management setup. Ongoing service can include preventive maintenance, firmware updates, and battery health checks offered by manufacturers or authorized partners.
