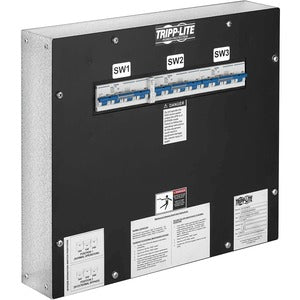

Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers
The Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K is the essential solution for operators who demand uptime, even during UPS service. Specifically designed to work with the Tripp Lite SUTX40K 3-phase UPS system, this wall-mount maintenance bypass panel provides a safe, reliable bypass path that lets you reroute power around the UPS while maintenance, testing, or battery replacement is performed. In data centers, healthcare facilities, telecom hubs, and other mission-critical environments, every minute of downtime costs time and money. This panel minimizes that risk by delivering a stable, alternate power feed to connected equipment, ensuring that servers, routers, storage devices, and other critical devices stay online when the UPS is taken offline for service.
Engineered for straightforward installation and dependable operation, the maintenance bypass panel offers a clean, organized path for power flow. Its three-breaker design provides distinct switching points, enabling precise control over the bypass process and safer isolation of the UPS during maintenance windows. The wall-mount presentation keeps the panel compact and accessible, simplifying installation in tight IT closets, equipment rooms, or data center racks where space is at a premium. By separating the bypass circuitry from the UPS itself, you can perform maintenance tasks with confidence, knowing that your critical loads remain powered and protected from unexpected outages.
Safety and reliability are built into every aspect of this panel. The unit is designed to minimize electrical interference while providing robust protection for your critical electrical distribution. It supports clean routing of power to bypass the UPS when necessary, reducing stress on the UPS and extending its service life. For organizations pursuing best practices in data-center operations, having a maintenance bypass panel means faster maintenance cycles, less downtime during service, and a clear, compliant path to maintain uptime even when the UPS is offline. The SUTX40K-compatible design ensures seamless integration with your existing 3-phase UPS setup, enabling you to optimize maintenance workflows without compromising safety or performance.
Many facilities benefit from a maintenance bypass solution because it simplifies coordination between facilities management, network operations, and data-center teams. The Tripp Lite panel makes it easier to schedule maintenance windows, perform battery checks, test load transfers, and verify that critical loads are continuously fed, even when the primary UPS is offline. By providing a dedicated bypass route, this panel reduces the risk of accidental power loss and helps teams verify system readiness under real-world operating conditions. The result is not only improved uptime but also improved operational efficiency and peace of mind for IT personnel who rely on consistent power to keep services available.
In addition to its core functionality, the panel is designed to blend with standard IT environments and follow best-practice installation guidelines. It supports easy wiring access and clear separation of input, bypass, and load connections, which helps technicians and engineers reduce miswiring errors. The compact, wall-mounted form factor integrates with existing electrical rooms while maintaining safe clearances and ease of access for maintenance personnel. For organizations that deploy multiple UPSs or operate in multi-ruite facilities, the three-breaker configuration gives you reliable control over the bypass path, enabling you to isolate the UPS while leaving downstream equipment uninterrupted.
Overall, the Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K is a high-value addition to any environment where uninterrupted power is critical. Its compatibility with the SUTX40K 3-phase UPS, three-breaker architecture, and wall-mount design deliver a practical, scalable, and safe approach to UPS maintenance. When uptime matters most, this panel provides a dependable mechanism to maintain power to essential devices, minimize disruption, and keep your operations running smoothly through maintenance cycles and upgrades.
- Keeps critical equipment powered during UPS maintenance by providing a dedicated bypass path for the SUTX40K 3-phase UPS system.
- Three-breaker design offers clear isolation and controlled switching to safely reroute power away from the UPS during service.
- Wall-mount configuration for compact installation in IT closets, equipment rooms, or data-center spaces, with straightforward wiring access.
- Designed for compatibility with Tripp Lite's SUTX40K, enabling seamless integration within existing 3-phase UPS deployments.
- Enhances uptime, reduces maintenance windows, and lowers risk of unplanned outages by allowing maintenance without interrupting downstream loads.
Technical Details of Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers
- Compatibility: Tripp Lite SUTX40K 3-phase UPS system
- Breaker count: 3
- Mounting: Wall-mount enclosure
- Primary function: UPS maintenance bypass to keep loads powered when UPS is offline
- Enclosure material: Not specified in the provided details; designed for durability and safe power routing
- Power routing: Input, bypass, and load paths arranged to minimize interference and miswiring
How to install Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers
- Prepare the installation site by ensuring a safe electrical work area, shutting down non-essential power, and verifying that the main power source is de-energized before starting installation.
- Verify compatibility with the SUTX40K UPS and confirm that the wall location provides adequate clearance for cabling, access, and future maintenance tasks.
- Mount the panel to the wall using appropriate hardware and secure fasteners according to local electrical codes and manufacturer guidelines. Ensure the panel sits level and is firmly anchored to support the weight of wiring and components.
- Connect the panel to the UPS output, the normal utility feed, and the load devices as specified by the installation diagram for the SUTX40K bypass configuration. Maintain clear separation between input, bypass, and load connections to reduce the risk of cross-connection or miswiring.
- Terminate conductors with proper torque on all terminal screws and perform a thorough inspection of all connections for tightness and correctness. Re-check clearances and ensure there are no exposed conductors that could pose a safety hazard.
- Restore power after confirming all connections are secure. Validate the bypass path by performing a controlled transfer test: verify that the load remains powered when the UPS is placed in bypass mode and that the UPS resumes normal operation when restored to line or normal mode.
- Document the installation, noting the date, installer, and any pertinent model or serial numbers. Maintain compliance with local electrical codes and your organization’s electrical safety policies for future maintenance.
Frequently asked questions
- What is a UPS maintenance bypass panel? A maintenance bypass panel provides a dedicated path to power critical loads directly from the utility while the UPS is offline for maintenance, testing, or replacement, enabling continuous operation of essential equipment.
- Is this panel compatible with the SUTX40K UPS? Yes. It is designed to work with Tripp Lite’s SUTX40K 3-phase UPS system, offering a seamless bypass solution for maintenance activities.
- How many breakers does the panel have? The panel features three breakers, corresponding to the three distinct switching points in the bypass path for reliable control and isolation during maintenance.
- Do I need a licensed electrician to install it? For safety and code compliance, installation should be performed by a qualified electrician or an individual with appropriate electrical training and authorization.
- Can I use this panel in a data center or IT environment? Yes. It is designed for use in data centers, telecom rooms, and other facilities that require uninterrupted power to critical loads during UPS maintenance, helping to minimize downtime and protect operations.
