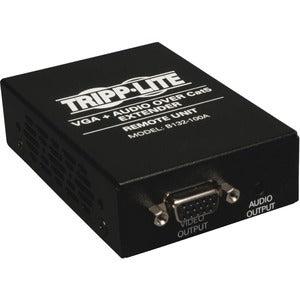

Tripp Lite by Eaton VGA over Cat5/6 Extender, Box-Style Receiver for Video/Audio, Up to 1000 ft. (305 m), TAA

Experience seamless VGA extension with dependable audio support using the Tripp Lite VGA over Cat5/6 Extender. This robust box-style receiver is engineered to preserve signal integrity across long runs, extending VGA signals up to 1,000 feet (305 meters) over standard Cat5/6 cabling. Whether you’re deploying digital signage in retail, outfitting classrooms for flexible display setups, or upgrading conference rooms and control centers, this receiver delivers reliable performance, easy installation, and a clean, professional appearance that blends with any AV environment. Trusted by professionals, Tripp Lite by Eaton combines rugged construction with thoughtful design to empower presenters, educators, and technicians to deliver impactful visuals with crystal-clear audio.

• Long-distance performance: Extends VGA video and audio up to 1,000 feet (305 meters) over standard Cat5/6 cabling, enabling flexible placement of displays, signage, and presentation areas without compromising image clarity or sync. The extended reach makes it ideal for classrooms, retail floors, and large conference spaces where line-of-sight cannot be guaranteed.
• Box-style receiver design: A compact, rugged enclosure that fits neatly in racks, cabinets, or behind displays; designed for quick mounting and tidy cable management in classrooms, retail kiosks, or corporate spaces. The understated form factor minimizes visual intrusion while standing up to daily use.
• Video and audio in sync: Delivers VGA video with analog audio through a Cat5/6 link when paired with a suitable transmitter, ensuring your content, narration, and sound are perfectly aligned on every screen. This synchronization improves meeting flow and signage consistency across multiple displays.
• Crystal-clear image support: Supports standard VGA resolutions used in business and signage environments, preserving color accuracy and sharpness on large-format displays, monitors, and video walls even over extended cable distances.
• Reliability and compliance you can trust: Built to withstand continuous operation in demanding environments, with Tripp Lite’s renowned quality standards and TAA-compliant construction for government and enterprise procurement needs.

Technical Details of Tripp Lite VGA over Cat5/6 Extender

• Distance extension: Up to 1,000 feet (305 meters) over Cat5/6 cabling; performance depends on cable quality, resolution, and interference factors in the installation environment.
• Video interface: VGA (HD-15) output on the receiver; designed to work with a compatible transmitter to extend computer or media player VGA signals across the Cat5/6 link.
• Audio path: Analog audio passthrough via the Cat5/6 link when configured with a corresponding transmitter; enables synchronized audio with video across long runs.
• Form factor: Box-style receiver, compact and durable for mounting behind displays, in AV racks, or within custom enclosures; engineered to stay cool under typical room conditions.
• Connectors and power: RJ-45 input for the Cat5/6 link; VGA HD-15 output for display; external power supply recommended to ensure stable performance on longer cable runs.
• Compliance: TAA-compliant for government procurement and enterprise deployments; designed to meet industry standards for reliability and long service life in professional environments.

How to install Tripp Lite VGA over Cat5/6 Extender

Setting up the VGA over Cat5/6 Extender with a matching transmitter is straightforward, and following best practices will help you achieve the best possible picture and sound across long distances. Below is a practical guide to get you up and running quickly while maximizing signal integrity and longevity of your installation.

1. Plan the installation: Identify the video source (PC, media player, or signage controller) and the display location. Verify that you have a compatible transmitter paired with the receiver and ensure the chosen Cat5/6 cable route avoids high-power lines and sources of electromagnetic interference.
2. Prepare the cabling: Use high-quality Cat5/6 cable rated for the environment (shielded if running parallel to power or in high-noise areas). Plan for clean runs with minimal bending and tension to preserve signal quality over the full 1,000-foot distance.
3. Connect the transmitter to the source: On the transmitter side, connect the VGA output from the source to the transmitter’s VGA input and, if applicable, route the audio to the transmitter’s audio output. Power the transmitter according to its specifications.
4. Lay the Cat5/6 link: Run the cable from the transmitter to the receiver location. Ensure the RJ-45 connectors are fully seated and that the cable is terminated cleanly with no frayed wires or kinks that could degrade signal.
5. Install the receiver: Place or mount the box-style receiver near the display. Connect the VGA output from the receiver to the display’s VGA input. If your system supports audio, connect the receiver’s audio output to the display or audio processor as required, and connect the receiver to its power supply.
6. Power on and test: Turn on the source, transmitter, receiver, and display. Check that the video appears on the display with correct resolution and aspect ratio. Test audio playback, adjust volume levels, and verify synchronization across all connected displays if you are deploying a multi-screen setup.
7. Optimize settings: If needed, adjust the display’s resolution, refresh rate, color profile, and audio routing to achieve the desired balance of sharpness, brightness, and sound. For signage, consider calibration to ensure consistent color temperature and legibility from viewing distances.

Frequently Asked Questions

• What is the maximum transmission distance?

The extender supports up to 1,000 feet (305 meters) over Cat5/6 cabling. In practice, distance performance will depend on the quality of the cable, the chosen video resolution, and the environment (noise, interference, and physical routing).

• Can I carry audio over the Cat5/6 cable?

Yes. When paired with a suitable transmitter, the system can carry analog audio along with the VGA signal to provide synchronized video and sound across the extended link.

• What resolutions are supported?

The extender is designed for standard VGA signals and supports common business and signage resolutions. The achievable resolution and refresh rate will depend on the specific transmitter/receiver pair, cable quality, and the capabilities of the source and display devices.

• Is this product compatible with all VGA sources?

It is intended to work with standard VGA sources and displays when used with a matching transmitter. For best results, confirm compatibility with your exact hardware model and ensure the Cat5/6 cabling meets the recommended specifications for length and bandwidth.

• Is the unit compliant with procurement standards?

Yes. The receiver is TAA-compliant, making it suitable for government and enterprise procurement alongside other compliant peripherals.

• Do I need a separate power supply for the receiver?

For optimal long-distance performance, an external power supply is recommended. Power ensures stable operation across the full 1,000-foot range and helps prevent signal degradation that can occur with passive configurations.

• Can I use more than one display with the same transmitter?

Typically, a matched transmitter/receiver pair is required for each display path. If you are planning a multi-screen deployment, consult your configuration guide or support resources to determine if a daisy-chained or matrixed setup is supported by your specific extender model and transmitter.
