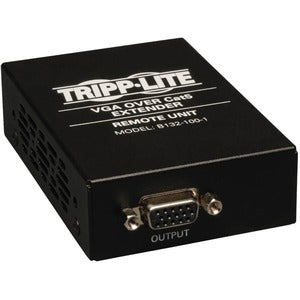

Tripp Lite by Eaton VGA over Cat5/6 Extender, Box-Style Receiver for Video, Up to 1000 ft. (305 m), TAA

Experience unparalleled video signal extension with the Tripp Lite by Eaton VGA over Cat5/6 Extender. This box-style receiver is designed to transmit video signals effectively over long distances, making it ideal for various applications such as retail displays, schools, churches, and other digital signage scenarios. With the ability to extend video signals up to 1,000 feet, you can enjoy high-resolution video without compromising on quality.

• Long-Distance Video Extension: Extend a 1920 x 1440 (60Hz) video signal up to 500 feet or a 1024 x 768 (60Hz) video signal up to 1,000 feet, ensuring flexibility in your setup.
• Compatible with Tripp Lite Transmitters: Works seamlessly with the B132-002-2 or B132-004-2 local transmitter units, allowing for easy integration into existing systems.
• High-Quality Transmission: Achieve maximum distance and resolution using 24Awg, Solid Wire Cat5e/6 cables, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).
• Enhanced Image Quality: For optimal image quality between 500 and 1,000 feet, utilize Zero-Skew cables, such as Tripp Lite’s P524-01K, to eliminate distortion and color issues.
• Versatile Mounting Options: The included mounting hardware allows for wall, rack, or pole mounting, providing flexibility in installation for various environments.

Technical Details of Product

• Model: Tripp Lite B132-100-1
• Video Signal Resolution: 1920 x 1440 (60Hz) up to 500 feet, 1024 x 768 (60Hz) up to 1,000 feet
• Cable Requirements: 24Awg Solid Wire Cat5e/6 cables
• Compliant with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Warranty: 1-year limited warranty

How to Install

Installing the Tripp Lite VGA over Cat5/6 Extender is a straightforward process:

1. Connect the local transmitter unit (B132-002-2 or B132-004-2) to your video source using a VGA cable.
2. Run a compatible Cat5e/6 cable from the transmitter unit to the Tripp Lite receiver (B132-100-1).
3. Connect your display device (monitor, projector, etc.) to the receiver using a VGA cable.
4. If needed, adjust the built-in Equalization and Gain controls to optimize the video image quality.
5. Use the included mounting hardware to secure the unit in a suitable location (wall, rack, or pole).

Frequently Asked Questions

1. What type of cables should I use for the best performance?

For maximum distance and resolution, it is recommended to use 24Awg, Solid Wire Cat5e or Cat6 cables. For optimal image quality at longer distances, utilize Zero-Skew cables.

2. Can I use this extender for digital signage?

Yes, the Tripp Lite VGA over Cat5/6 Extender is particularly well-suited for digital signage applications, including retail, schools, and churches.

3. What is the maximum distance I can extend the video signal?

The extender can transmit a 1920 x 1440 (60Hz) video signal up to 500 feet and a 1024 x 768 (60Hz) video signal up to 1,000 feet.

4. Is this product compliant with GSA Schedule purchases?

Yes, the Tripp Lite VGA over Cat5/6 Extender is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.

5. What warranty comes with the product?

The product comes with a 1-year limited warranty, ensuring peace of mind with your purchase.
