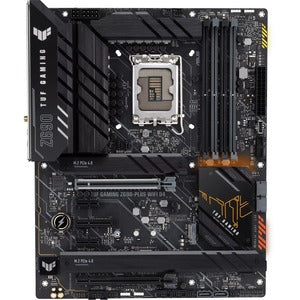

TUF GAMING Z690-PLUS WIFI D4 Desktop Motherboard – Intel Z690 Chipset, LGA-1700, ATX

Experience uncompromising gaming performance and next‑gen connectivity with the TUF GAMING Z690-PLUS WIFI D4 Desktop Motherboard. Built for Intel’s LGA 1700 platform, this ATX board blends rugged durability with a comprehensive feature set designed for enthusiasts and creators alike. With 15 DrMOS power stages delivering precise, stable power, PCIe 5.0 readiness, multiple M.2 slots, and robust networking options, it’s engineered to handle demanding titles, large media libraries, and intensive multitasking—all while delivering striking aesthetics through Aura Sync RGB lighting.

• 15 DrMOS power stages provide clean, efficient, and highly stable power delivery to the CPU, enabling higher overclocking headroom and reliable operation during extended gaming sessions or heavy workloads, while maintaining low thermal output.
• PCIe 5.0 readiness ensures blazing-fast data transfer for future graphics cards and NVMe SSDs, complemented by PCIe x16 support and four M.2 slots for expansive, ultra-fast storage configurations that reduce load times and boost system responsiveness.
• DDR4 memory support delivers fast, responsive performance with broad compatibility and cost-effective upgrade options, enabling high-speed RAM configurations and stable operation with Intel’s latest processors.
• Integrated connectivity covers modern needs: WiFi 6 for fast wireless networking, Intel 2.5 Gb Ethernet for low-latency wired connections, USB 3.2 Gen 2x2 Type-C and front-panel USB-C for versatile peripherals, plus HDMI and DisplayPort outputs for quick multi‑display setups; optional Thunderbolt 4 support expands peripheral and daisy‑chain capabilities.
• Aura Sync RGB lighting and durable build quality give your system a premium look and long‑term reliability, with flexible cooling potential and a design that accommodates high-end GPUs, extensive M.2 storage, and advanced cooling solutions.

Technical Details of TUF GAMING Z690-PLUS WIFI D4 Desktop Motherboard

• Chipset: Intel Z690
• Socket: LGA 1700
• Form Factor: ATX
• Memory: DDR4 supported
• PCIe: PCIe 5.0 ready
• Storage: Four M.2 slots; SATA 6 Gbps
• Networking: WiFi 6; Intel 2.5 Gb Ethernet
• Video Outputs: HDMI, DisplayPort
• USB: USB 3.2 Gen 2x2 Type-C; front USB 3.2 Gen 2 Type-C
• Expansion: Thunderbolt 4 support
• Lighting: Aura Sync RGB
• Features: Intel Optane Memory Ready
• Power: 15 DrMOS power stages

How to install TUF GAMING Z690-PLUS WIFI D4 Desktop Motherboard

• Prepare your workspace and ensure you have an appropriate ATX chassis, power supply, and a compatible Intel LGA 1700 CPU cooler.
• Install the CPU into the LGA 1700 socket, follow the motherboard’s manual for correct orientation, and apply a thin, even layer of thermal paste if using an aftermarket cooler.
• Seat the RAM modules in the correct DDR4 slots for your memory configuration (generally dual-channel) and ensure they click firmly into place.
• Mount M.2 NVMe storage drives into the four M.2 slots, securing each with its mounting screw, and connect SATA drives if you plan to use traditional HDD/SSD storage in addition to NVMe.
• Install the motherboard into the case, align I/O shield, and secure with screws. Connect power, reset, and front-panel USB-C connectors, along with any additional case fans or PCIe devices.
• Boot into the BIOS to configure memory XMP profiles, configure boot order, and ensure PCIe devices are recognized. Update the BIOS if available to maximize compatibility with 12th/13th‑Gen CPUs and PCIe 5.0 devices.
• Install your operating system, drivers, and software packages. Enable Aura Sync to customize lighting and verify network and USB functionality via connected peripherals.

Frequently asked questions

• Q: Does the TUF GAMING Z690-PLUS WIFI D4 support PCIe 5.0? A: Yes, the motherboard is PCIe 5.0 ready, allowing next‑gen GPUs and NVMe storage to operate at the fastest available speeds.
• Q: How many M.2 drives can I install? A: Four M.2 slots are available, enabling multiple high‑speed NVMe drives for OS, games, and data caching.
• Q: Is WiFi included on the board? A: Yes, it features built‑in WiFi 6 for fast wireless connectivity in addition to Intel 2.5 Gb Ethernet for reliable wired networking.
• Q: Can I use Thunderbolt 4 with this board? A: Thunderbolt 4 support is available, expanding peripheral connectivity and daisy‑chain options for high‑speed devices.
• Q: Is Optane memory ready? A: The motherboard is Intel Optane Memory Ready, offering flexible caching options to accelerate frequently used data and improve system responsiveness.
• Q: What type of memory does it support? A: DDR4 memory is supported, providing a balance of performance, compatibility, and cost efficiency.
• Q: Does it support front-panel USB-C? A: Yes, the board includes front USB 3.2 Gen 2 Type-C connectivity for convenient case‑side access to high‑speed USB devices.
