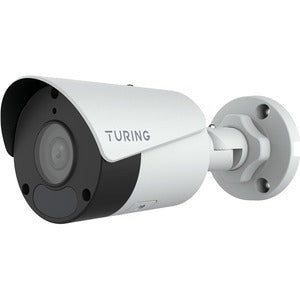

Turing Video Smart TP-MFB4M4 4 Megapixel Network Camera - Color

The Turing Video Smart TP-MFB4M4 is a high-performance 4-megapixel network camera designed to deliver reliable, pristine color surveillance in outdoor environments. Engineered for harsh conditions and demanding deployments, this camera captures vivid daytime color detail and maintains clarity in challenging lighting with advanced wide dynamic range. Its compact 4 mm fixed lens provides a wide, unobtrusive field of view perfect for entrances, storefronts, parking lots, and perimeters, while the rugged IP67 enclosure promises protection against dust, rain, and temperature extremes. With powerful video processing and multiple compression options, including H.265 and H.264 variants, it optimizes bandwidth and storage without compromising image fidelity. The TP-MFB4M4 also supports Power over Ethernet (PoE), enabling streamlined installation and centralized management, which makes it an ideal choice for modern security systems seeking efficient, scalable surveillance. Whether you’re equipping a single doorway or building a comprehensive multi-camera network, this camera balances performance, resilience, and value in a compact, weatherproof package.

• Ultra‑efficient video compression: Enjoy bandwidth-friendly streaming with Ultra 265 and the H.265 family, plus H.264 BP/MP/HP profiles and MJPEG, enabling high-quality footage at lower network loads for smoother playback and cost-effective storage.
• 4 MP color imaging: Achieve crisp, highly detailed surveillance at 2688 x 1520 resolution, capturing finer facial features, license plates, and scene texture essential for accurate incident analysis and evidence gathering.
• Impressive night vision and WDR: Rely on 131.23 ft (40 m) of infrared range and wide dynamic range processing to maintain visibility across bright highlights and deep shadows, ensuring usable video in day-to-night transitions.
• Rugged outdoor design: Built to endure the elements with IP67 protection, robust housing, and reliable performance in rain, dust, and temperature swings, making it suitable for exterior installations without compromising longevity.
• Flexible mounting and PoE power: Supports Pole Mount and Junction Box Mount configurations and uses Power over Ethernet for simplified wiring and centralized power management, ideal for scalable security setups.

Technical Details of TP-MFB4M4

• Model: Turing Video Smart TP-MFB4M4
• Type: 4 Megapixel Network Camera
• Resolution: 2688 × 1520 (4 MP)
• Sensor: CMOS
• Lens: 4 mm fixed lens
• Frame Rate: Up to 30 frames per second
• Night Vision: Infrared illumination reaching approximately 131.23 ft (40 m)
• Dynamic Range: Wide Dynamic Range (WDR) for high-contrast scenes
• Video Compression: Ultra 265, H.265, H.264 BP/MP/HP, MJPEG
• Video Streams: Multiple configurable streams (primary and sub-streams)
• Mounting Options: Pole Mount, Junction Box Mount
• Ingress Protection: IP67 weatherproof rating
• Power: PoE support for streamlined installation
• Storage: MicroSD card slot supporting up to 256 GB for local recording
• Operating Environment: Outdoor-ready, designed for variable temperatures and exposure to the elements

How to install TP-MFB4M4

Installing the TP-MFB4M4 is designed to be straightforward for professional installers and capable DIY enthusiasts. Begin by selecting a mounting location that provides a clear line of sight to the area you want to monitor and access to a PoE-enabled network switch, injector, or NVR. Use the supplied mounting hardware to attach the camera to a compatible pole or to a junction box, ensuring the orientation maximizes coverage and minimizes blind spots. After securely mounting, route the Ethernet cable through protective conduits or weatherproof seals to maintain enclosure integrity and prevent water intrusion. Connect the camera to your PoE network, and power up the device. On first boot, discover the camera in your network management system or web client, and access the camera’s settings page to perform the initial configuration. Assign a fixed IP address or enable DHCP with a reserved lease, configure user accounts and permissions, and establish your preferred streaming profiles. Set the image parameters to align with your surveillance needs—adjust brightness, contrast, saturation, and exposure; enable WDR if scenes include variable lighting; and choose the optimal frame rate and resolution for your storage and bandwidth budgets. For night operation, ensure infrared LEDs are active and set IR intensity to balance visibility and power consumption. If you plan local recording, insert a microSD card (up to 256 GB), format it via the camera’s interface, and configure a recording schedule or motion-triggered recording. Finally, verify the camera’s coverage by performing a live view test, adjust the lens angle, field of view, and mounting position as needed, and implement any required security measures such as HTTPS access, password policies, and firmware updates from the manufacturer to safeguard your deployment over time.

Frequently asked questions

• Q: What is the resolution of the TP-MFB4M4? A: It provides 4 MP color imaging at 2688 × 1520 resolution, with multiple streams available for different monitoring needs.
• Q: Does this camera support PoE? A: Yes, it supports Power over Ethernet, enabling both data and power delivery through a single network cable for simpler installation and centralized management.
• Q: How far can it see in the dark? A: The camera’s infrared illumination reaches up to approximately 131.23 ft (40 m), allowing for usable nighttime surveillance in unlit or low-light environments.
• Q: What mounting options are available? A: It supports Pole Mount and Junction Box Mount configurations, offering flexible installation for various outdoor locations.
• Q: What storage options exist? A: The TP-MFB4M4 includes a microSD card slot compatible with up to 256 GB for local recording in case of network interruptions or for standalone capture needs.
