Description

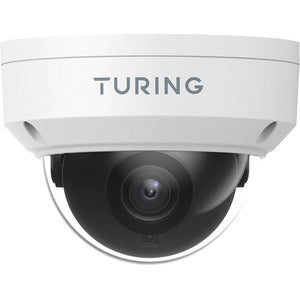

Turing Video Smart TP-MFD4A28-1Y 4MP Network Camera – Dome, White
The TP-MFD4A28-1Y is a high-performance 4-megapixel network camera designed to deliver crisp color imagery, robust protection, and flexible recording options in a compact dome housing. Crafted for reliability in demanding environments, this color-only dome camera combines advanced compression, vandal resistance, and water resistance to support security deployments from retail storefronts to industrial facilities. With a modern fixed 2.80 mm lens and a durable white dome, it blends discreet surveillance with dependable performance day and night.
- Stunning 4MP color imaging for clear identification — Capture sharp, detailed footage at 2688 x 1520 resolution with a CMOS sensor. The 4MP capability ensures precise color rendition and improved object recognition, making it suitable for applications where facial features and license plates matter. The fixed 2.80 mm lens provides a wide, practical field of view for storefronts, corridors, and compact spaces while maintaining a clean, unobtrusive appearance.
- Flexible video formats and smooth performance — This camera supports Ultra 265, H.265, H.264, MJPEG, H.264B, H.264M, and H.264H compression options, delivering efficient bandwidth use without sacrificing image quality. With a steady 30 frames per second, it preserves fluid motion in dynamic scenes such as entrances, aisles, and activity zones, enabling reliable monitoring even during busy periods.
- Long-range infrared night vision for around-the-clock security — Equipping the camera with infrared illumination, it delivers up to 98.43 ft (30 m) of night vision, preserving detail when lighting fades. In low-light environments, the IR system activates automatically to maintain scene clarity, while the daylight color mode ensures vivid color capture when lighting improves.
- Rugged, weatherproof, and vandal-resistant construction — Engineered to endure challenging conditions, the camera carries IP67 ingress protection and IK10 vandal resistance. This combination shields against dust, water exposure, and physical tampering, making it ideal for exterior entrances, loading docks, or high-traffic indoor areas that require durability and ongoing surveillance reliability.
- Local storage options and versatile mounting — The camera supports microSD cards up to 256 GB for local storage, enabling on-site retention and quick recovery of footage without immediate network dependence. Its compact dome design and white finish offer a discreet, versatile mounting option for ceilings or ceilings corners, while preserving aesthetics and surveillance coverage.
Technical Details of TP-MFD4A28-1Y
- Resolution: 2688 x 1520 (4 MP) CMOS sensor
- Video Compression: Ultra 265, H.265, H.264, MJPEG, H.264B, H.264M, H.264H
- Lens: 2.80 mm fixed lens
- Frame Rate: Up to 30 fps
- Infrared Night Vision: Up to 30 m / 98.43 ft
- Ingress Protection: IP67
- Vandal Resistance: IK10
- Image Sensor: CMOS
- Storage: Supports microSD card up to 256 GB
- Dynamic Range: WDR
- Color Model: Color camera for daylight operation
- Housing: Dome, White
How to install TP-MFD4A28-1Y
Installing the TP-MFD4A28-1Y is straightforward with standard surveillance mounting practices. Start by selecting a secure mounting location that provides the desired coverage while allowing access for maintenance and cabling. Use the supplied mounting plate and hardware to attach the dome camera to a ceiling or wall surface. Ensure the chosen spot is free from obstructions that could impede the lens view or infrared coverage.
Next, route the network and power connections to the camera. Use weather-rated cable management to protect cables from environmental exposure if the installation is outdoors or in dusty environments. Secure the cables to prevent movement or accidental disconnections. Once connected, power the camera and verify basic operation before paneling the final seal around the mounting canopy to preserve IP67-rated protection.
Access the camera’s configuration interface through your preferred management software or web browser. Assign a static IP address (or integrate with your DHCP server, depending on your network setup) and configure essential settings such as daylight color mode, infrared behavior, and resolution. If your installation requires multiple cameras, consider using a centralized video management system to streamline device discovery and batch-configure common parameters.
Position the camera for optimal coverage. Tilt and rotate the dome as needed to minimize blind spots behind critical assets or entryways. If available, enable WDR to manage high-contrast scenes, and adjust the IR intensity and exposure settings to balance image brightness during night-time operation. If local storage is desired, insert a microSD card into the dedicated slot and format it according to the system prompts. Finally, perform a test recording to confirm video playback, frame rate stability, and network performance under typical conditions.
Maintenance and security tips: regularly check the physical housing for debris or seal integrity, inspect the mounting hardware for looseness, and confirm that the firmware is up to date to benefit from the latest performance enhancements and security patches. Maintain a clean lens to preserve image clarity and avoid reflections that can obscure key details during critical events.
Frequently asked questions
- What is the camera resolution? The TP-MFD4A28-1Y captures video at 2688 x 1520 resolution, which is commonly described as 4MP for high-detail surveillance footage.
- How far can it see at night? The camera provides infrared night vision up to 98.43 feet (30 meters), allowing reliable monitoring in low-light or complete darkness.
- Is the housing weatherproof and vandal-resistant? Yes. The camera is IP67 rated for protection against dust and immersion in water, and IK10 vandal resistant to withstand physical tampering or impact.
- What video formats does it support? It supports Ultra 265, H.265, H.264, MJPEG, H.264B, H.264M, and H.264H, providing flexible options for bandwidth management and compatibility with various video management systems.
- What lens does this camera use? It uses a fixed 2.80 mm lens, offering a compact profile and a broad field of view suitable for most indoor and exterior surveillance scenarios.
- Can I record locally on the camera? Yes, the camera supports microSD storage up to 256 GB, enabling local recording and quick access to footage even when the network is unavailable.
- Is color imaging available at all times? The camera is designed for color imaging in daylight; infrared operation enables monochrome or infrared-optimized footage in low-light conditions, with color typically active under sufficient illumination.
