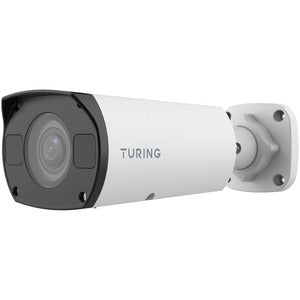

Turing Video Smart TP-MMB5AV2 5MP Outdoor Network Camera

Meet the Turing Video Smart TP-MMB5AV2, a rugged 5-megapixel outdoor network camera built to deliver crisp color footage, dependable night vision, and versatile installation options for every day and critical perimeter surveillance. Designed for harsh outdoor environments, this camera blends high-resolution imaging with powerful compression to reduce bandwidth and storage while maintaining image quality. Its durable, vandal-resistant housing, IP67 weather sealing, and IK10 impact rating ensure dependable performance in rain, dust, and vandal-prone settings. With a varifocal 2.70–13.50 mm lens offering up to 5x optical zoom and flexible mounting options, the TP-MMB5AV2 is a reliable choice for parking lots, campuses, storefronts, and outdoor perimeters where security matters around the clock.

• Experience stunning 5 MP imaging at up to 30 frames per second with a high-sensitivity CMOS sensor that captures crisp color detail in daylight and maintains clarity in fast-moving scenes, helping you identify license plates, faces, and scene details with confidence.
• Efficient video streaming through Ultra 265, H.265, H.264, and MJPEG makes it simple to balance image quality with bandwidth and storage constraints, enabling smoother remote viewing and cost-effective archival without sacrificing essential details.
• Infrared night vision provides reliable monitoring after dark, with an impressive reach of up to 164.04 feet (approximately 50 meters), ensuring illumination of critical zones and minimizing blind spots during nocturnal operations.
• Built for outdoor use, the camera combines weatherproof IP67 protection with vandal-resistant IK10 construction, guarding against water ingress and physical tampering while standing up to dust, rain, and accidental impacts.
• Flexible optical and mounting options enhance installation versatility: a 2.70–13.50 mm varifocal lens with 5x optical zoom supports precise framing, and mounting options include Junction Box Mount and Pole Mount to fit a wide range of sites and configurations.

Technical Details of Turing Video Smart TP-MMB5AV2

• Model: TP-MMB5AV2
• Type: Outdoor Network Camera
• Sensor: 5 MP CMOS
• Resolution: 2880 × 1620
• Video codecs: Ultra 265, H.265, H.264, MJPEG
• Frame rate: Up to 30 fps
• Lens: 2.70 mm – 13.50 mm Varifocal (5x optical zoom)
• IR Night Vision: Up to 164.04 ft (50 m)
• Mounting options: Junction Box Mount, Pole Mount
• Protection: IP67 weatherproof enclosure
• Vandal resistance: IK10
• Operating environment: Outdoor, water resistant and durable for external installations

How to Install Turing Video Smart TP-MMB5AV2

• Plan the placement by evaluating field of view, connectivity, and power availability, ensuring the camera can cover key entry points, driveways, or perimeters while staying within network reach.
• Prepare the mounting surface and install the chosen hardware (Junction Box Mount or Pole Mount) according to the site’s structure; verify that the surface is level and secure before proceeding.
• Attach the camera to the mounting hardware, lock the housing, and tighten all fasteners to preserve IP67 sealing; ensure gaskets and enclosure openings are correctly aligned to prevent water ingress.
• Adjust the varifocal lens from 2.70 mm to 13.50 mm to frame the intended scene, using the 5x optical zoom to focus on distant objects or fine details while maintaining edge-to-edge sharpness.
• Connect the camera to power and network, then access the device via its web interface or compatible NVR to configure streams (H.265/H.265, H.264, MJPEG), enable infrared, and set motion detection and alert preferences for proactive monitoring.

Frequently asked questions

• Q: Is this camera suitable for outdoor use? A: Yes. It features an IP67-rated weatherproof enclosure and IK10-rated vandal resistance, making it well-suited for exterior deployments exposed to rain, dust, and potential tampering.
• Q: What resolution and video formats does the TP-MMB5AV2 support? A: It delivers 2880 × 1620 resolution at up to 30 fps and supports Ultra 265, H.265, H.264, and MJPEG compression for flexible bandwidth and storage management.
• Q: What is the lens range and optical zoom? A: The camera uses a 2.70–13.50 mm varifocal lens with up to 5x optical zoom, enabling precise framing from wide-area views to close-up details.
• Q: How far can the camera see at night? A: The infrared night vision can illuminate up to 164.04 feet (about 50 meters), providing visibility in low-light or no-light conditions.
• Q: What mounting options does it offer? A: It supports Junction Box Mount and Pole Mount configurations, giving installation flexibility for walls, ceilings, poles, or compact enclosures.
