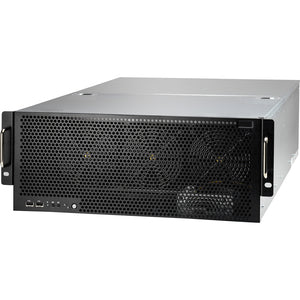

Tyan FT77B7015 Barebone System – 4U Rack-Mountable Dual-Processor Server Platform

The Tyan FT77B7015 Barebone System is a high-density, enterprise-grade foundation built for demanding data-center workloads. Housed in a robust 4U chassis, this barebone platform is designed to host two Intel Xeon processors via Socket B LGA-1366, delivering scalable compute power for virtualization, database operations, and mission-critical applications. With a focus on reliability, expandability, and efficient rack deployment, the FT77B7015 provides a flexible baseline for custom server configurations that can be tailored to your performance requirements and budget. Whether you’re consolidating virtual machines, deploying a scalable storage node, or creating a workhorse for scientific computing, this barebone system delivers the essential architecture to grow as workloads evolve.

• Dual-processor capability with Socket B LGA-1366 and the Intel 5520 chipset enables robust virtualization, multi-VM workloads, and compute-intensive applications in a single, compact 4U chassis.
• Massive memory capacity with support for up to 144 GB DDR3 SDRAM across 18 DIMM slots, delivering ample headroom for in-memory databases, large-scale virtualization, and memory-intensive workloads at DDR3-1333/PC3-10600 speeds.
• Flexible storage and RAID options featuring a Serial ATA/300 RAID controller and four 2.5" drive bays to enable fast, scalable data access and adaptable RAID configurations for redundancy or performance.
• 4U rack-mountable chassis designed for data-center deployments, offering spacious interior, solid airflow, and straightforward rack integration to maximize uptime and efficiency.
• Integrated ASPEED AST2050 graphics controller with onboard network connectivity (RJ-45) supports management tasks, console access, and remote administration to streamline server maintenance and monitoring.

Technial Details of Tyan FT77B7015 Barebone System

• Form factor: 4U rack-mountable chassis for data-center use and high-density deployments.
• CPU support: 2 x Intel Xeon processors in Socket B LGA-1366, enabling multi-processor performance for virtualization and enterprise workloads.
• Chipset: Intel 5520 chipset providing reliable I/O, memory bandwidth, and platform features suitable for server installations.
• Memory: Up to 144 GB DDR3 SDRAM across 18 DIMM slots; supports DDR3-1333/PC3-10600 memory for balanced speed and capacity.
• Storage: Serial ATA/300 RAID controller with four 2.5" drive bays, offering configurable RAID levels and scalable storage options.
• Graphics: ASPEED AST2050 onboard graphics to support basic console output and remote management interfaces.
• Networking: Built-in RJ-45 Ethernet connectivity for standard network access and remote management compatibility.
• Model positioning: Barebone chassis designed to be paired with customer-provided CPUs, memory, and storage to fit specific performance and budget goals.

how to install Tyan FT77B7015 Barebone System

• Prepare your rack space and securely mount the FT77B7015 chassis in a compatible 19-inch rack. Ensure proper clearance for cooling and cable management.
• Install the two Intel Xeon processors into the Socket B LGA-1366 sockets according to the processor manufacturer’s guidelines, applying thermal paste as required and attaching compatible heatsinks.
• Populate all 18 DIMM slots with DDR3 memory modules, following the memory population guidelines for mixed or uniform module configurations to maximize bandwidth and stability.
• Insert your chosen 2.5" drives into the four drive bays, then configure the Serial ATA RAID controller for your desired RAID level (RAID 0/1/5/10 as supported by your controller and OS).
• Connect power, data, and management cables, and verify that all fans and cooling paths are unobstructed for optimal airflow within the 4U chassis.
• Power on the system and enter the server BIOS/UEFI to configure boot devices, CPU/memory settings, and RAID initialization. Install your preferred operating system or hypervisor onto the boot drive.
• Once the OS is installed, install any necessary drivers for the RAID controller, network interfaces, and management utilities. Configure remote management settings if available for easier administration.

Frequently asked questions

• What is the primary purpose of the Tyan FT77B7015 Barebone System? It is a 4U, dual-processor server chassis designed to serve as a flexible foundation for virtualization, enterprise applications, and scalable storage deployments, with room to customize CPUs, memory, and drives.
• How many processors does it support? The FT77B7015 supports up to two Intel Xeon processors in Socket B LGA-1366, enabling parallel computing and multi-core performance suitable for demanding workloads.
• How much memory can be installed? Up to 144 GB of DDR3 SDRAM across 18 DIMM slots, providing ample headroom for virtualization, databases, and data-intensive applications.
• What storage options are available? There are four 2.5" drive bays and a Serial ATA/300 RAID controller for flexible and scalable storage configurations, allowing a range of RAID setups for performance and redundancy.
• What graphics and network capabilities are included? The system includes an ASPEED AST2050 graphics controller for basic display and management tasks, plus onboard RJ-45 network connectivity to support standard networking and remote administration.
