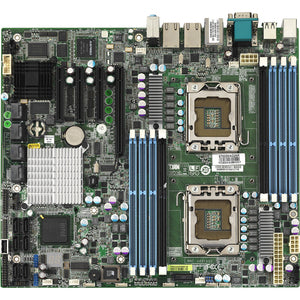

TYAN S7002 Server Motherboard — Intel 5520 Chipset, Socket B LGA-1366, SSI CEB

Designed for enterprise-grade performance and reliability, the TYAN S7002 server motherboard delivers dual-socket capability on a robust Intel 5520 chipset platform. This SSI CEB-form factor board is engineered to host two Intel Nehalem-EP processors, delivering substantial multi-core throughput for virtualization, databases, HPC, and high-demand workloads. With support for up to 64GB of DDR3 memory across the supported speeds of 800/1066/1333 MT/s, the S7002 is built to scale with growing workloads while maintaining energy efficiency and solid I/O performance. It’s a solid foundation for data centers, private clouds, and mission-critical applications that require dependable performance, flexible expansion options, and long-term platform stability.

The S7002 blends enterprise-grade reliability with intelligent design, enabling streamlined deployment in rack- and tower-based servers. Its hot-plug capability, thoughtful power-management features, and compatibility with common server backplanes make it a versatile choice for virtualization hosts, database servers, and compute clusters. Whether you’re consolidating workloads, accelerating virtualization, or building a scalable storage solution, this motherboard provides the essential ingredients for a resilient, scalable data-center infrastructure.

• Dual-socket performance: Supports up to two Intel Nehalem-EP 2S processors (Socket B LGA-1366) to deliver substantial parallel compute power and strong multi-threaded performance for virtualization, databases, and scientific workloads.
• Memory capacity and speed: Supports up to 64GB of DDR3 memory at 800/1066/1333 MT/s, enabling large in-memory datasets, faster caches, and improved virtualization density without sacrificing stability.
• Chipset and architecture: Powered by the Intel 5520 chipset, which provides scalable 32- and 64-bit computing environments with robust bandwidth to sustain multi-socket configurations and demanding I/O workloads.
• Form factor and compatibility: SSI CEB form factor ensures broad compatibility with enterprise chassis, backplanes, and storage solutions, facilitating straightforward integration into data-center racks and standard server enclosures.
• Reliability and enterprise features: Engineered for continuous operation with solid power delivery and diagnostic capabilities, delivering dependable performance for 24/7 workloads and mission-critical applications.

Technical Details of TYAN S7002 Server Motherboard

• CPU Sockets: 2 x LGA-1366 Socket B
• Processor support: Intel Nehalem-EP (Xeon 5500/5600 series) 2S configurations
• Chipset: Intel 5520
• Memory: Up to 64GB DDR3-800/1066/1333
• Form Factor: SSI CEB

How to Install TYAN S7002

Before you begin, verify compatibility with your server chassis, backplane, and power supply. Prepare a static-free work area and gather the necessary CPU heatsinks, DDR3 DIMMs, and any required backplane adapters. Have the latest BIOS/firmware available to flash if needed, and consult the motherboard manual for any revision-specific requirements.

Install CPU(s): Insert each Intel Nehalem-EP processor into its respective LGA-1366 Socket B socket, aligning the notches and seating the processor firmly. Attach the appropriate heat sink or cooling solution, securing it according to the vendor’s guidelines. Connect the CPU fan to the motherboard header to ensure proper cooling and reliable operation under load.

Install memory: Insert DDR3 DIMMs into the supported memory slots in accordance with the manual’s population guidelines to maximize memory bandwidth and stability. Ensure that all modules are fully seated and that memory configuration aligns with your two-processor setup to achieve the full 64GB capacity when using the appropriate DIMMs.

Mount the board: Place the S7002 into the server chassis, align it with the standoffs, and secure the motherboard with mounting screws. Attach power and data cables to the backplane or storage controller per your chassis design. Verify that airflow paths are unobstructed and that any cooling fans are connected and functioning before applying power.

BIOS/firmware and initial boot: Power on and enter the BIOS/UEFI to verify CPU recognition, memory count, and correct timing settings. Update to the recommended BIOS revision if available, configure boot devices, and adjust basic server-management options to suit your deployment (virtualization settings, AHCI/RAID, network boot, etc.).

Validation and deployment: After POST passes, install your operating system or hypervisor, and install necessary drivers for storage controllers, network interfaces, and any expansion cards. Run a short stability test and memory check to confirm reliability under typical workloads before placing the server into production.

Frequently asked questions

• Q: What processors are compatible with the TYAN S7002?

  A: The S7002 supports up to two Intel Nehalem-EP processors in a 2S configuration using Socket B LGA-1366. This includes Xeon 5500 and 5600 series CPUs, offering strong multi-core performance for virtualization, database workloads, and HPC tasks.

• Q: How much memory can the board accommodate and at what speeds?

  A: The motherboard supports up to 64GB of DDR3 memory, with memory speeds of 800/1066/1333 MT/s depending on the CPU and DIMM configurations. Memory capacity and speed are influenced by the specific DIMMs used and the processors installed.

• Q: What is the form factor and why does it matter?

  A: The TYAN S7002 uses the SSI CEB form factor, which is designed for enterprise servers and is compatible with standard chassis backplanes, rails, and mounting patterns found in data centers and rack environments.

• Q: Is the S7002 suitable for virtualization or data-intensive workloads?

  A: Yes. Dual Nehalem-EP processors paired with ample DDR3 memory and the bandwidth provided by the Intel 5520 chipset make the S7002 a capable foundation for virtualization hosts, databases, HPC clusters, and other demanding workloads that require reliable multi-processor performance.

• Q: Are there management features or tools included?

  A: The board is designed for enterprise deployments and works with standard server-management ecosystems. For specifics such as IPMI or dedicated management headers, consult the revision-specific manuals and your chassis/backplane documentation for precise capabilities and compatibility.
