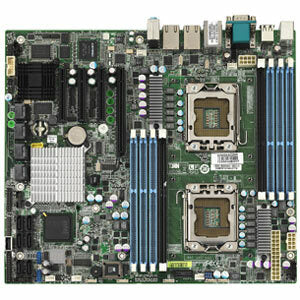

Tyan S7016GM3NR Server Motherboard - Dual Intel Xeon LGA-1366 with 5520 Chipset (Extended ATX)

The Tyan S7016GM3NR is a enterprise-grade server motherboard engineered for demanding workloads, virtualization, and data-intensive applications. Built around the Intel 5520 chipset (Tylersburg-36D) in combination with the Intel 82801JIR ICH10/R, this board delivers robust performance, expansive memory capacity, and flexible I/O for scalable data center deployments. Designed to accommodate dual Intel Xeon Nehalem-EP 5500 series processors, it provides the headroom and reliability that businesses rely on for mission-critical tasks. From virtualization clusters to database engines and high-performance computing, the S7016GM3NR is engineered to keep workloads responsive, secure, and highly available.

• Dual-socket performance for mission-critical workloads - The S7016GM3NR supports up to two Intel Xeon Nehalem-EP 5500-series processors, delivering parallel compute capability and strong multi-threaded performance. This makes it an excellent foundation for virtualization hosts, large-scale databases, and enterprise apps that demand steady, scalable processing power. The architecture is designed to maximize core throughput and memory bandwidth, enabling responsive performance under heavy load and during peak usage windows.
• Massive memory capacity with ECC protection - Equip this motherboard with up to 144GB of DDR3 registered ECC memory at speeds of 800/1066/1333, providing ample headroom for in-memory databases, large virtualization farms, and memory-intensive workloads. ECC protection helps detect and correct memory errors on the fly, preserving data integrity and reducing the risk of unplanned downtime in a 24/7 data center environment.
• Rich expansion and storage I/O options - Leveraging the Intel 5520 and ICH10/R chipsets, the board offers flexible PCIe expansion and robust onboard storage interfaces. This enables installation of high-speed accelerators, network adapters, and multi-controller storage configurations. The design supports a wide range of storage arrangements, including RAID-capable controllers, while maintaining solid I/O connectivity for networking, clustering, and data throughput.
• Enterprise reliability and manageability - Built for uptime, the S7016GM3NR incorporates features aligned with data-center reliability requirements. Expect solid power delivery, comprehensive thermal management, and fault-tolerant capabilities that help maintain service levels. In addition, remote management options allow administrators to monitor health, perform firmware updates, and manage systems without on-site intervention, enhancing operational efficiency in large-scale deployments.
• Remote management and easy deployment - IPMI-based remote management support enables KVM over IP, out-of-band monitoring, and remote troubleshooting. This simplifies provisioning, ongoing maintenance, and rapid recovery in distributed environments, reducing the need for physical access to chassis and servers while maintaining tight control over system configurations and health status.

Technical Details of Tyan S7016GM3NR

• Chipset: Intel 5520 (Tylersburg-36D) with Intel 82801JIR ICH10/R for I/O and storage integration
• CPU Support: Up to two Intel Xeon Nehalem-EP 5500-series processors
• Socket: LGA-1366
• Form Factor: Extended ATX (E-ATX)
• Memory: Up to 144GB DDR3 Registered ECC RAM, 800/1066/1333 speeds
• Memory Type: DDR3 Registered ECC for data integrity and error detection
• Storage I/O: SATA/SAS interfaces via ICH10/R; support for RAID configurations through compatible controllers
• Expansion: Multiple PCIe slots to accommodate GPUs, accelerators, NICs, and storage controllers
• Management: IPMI 2.0 with remote management capabilities (KVM over IP) for out-of-band administration

How to install Tyan S7016GM3NR

To ensure a smooth, reliable deployment of the S7016GM3NR in an appropriate Extended ATX chassis, follow these best-practice steps. Begin with a clean, static-free workspace and a compatible power supply that provides clean, stable rails for dual CPUs and memory modules. Plan the deployment around your intended workload, including virtualization, database, or compute-intensive tasks, so you can populate memory channels and PCIe slots optimally for peak performance.

• Power down the system, unplug the power cord, and discharge any static voltage. Prepare an anti-static wrist strap or mat to protect sensitive components during installation.
• Install the two Intel Xeon Nehalem-EP 5500-series processors into the LGA-1366 sockets. Apply thermal interface material per the CPU cooler manufacturer’s recommendations, then attach the heatsinks securely and reconnect all fans to the motherboard header for proper cooling and airflow.
• Populate memory modules (DDR3 Registered ECC) across the appropriate channels to reach the desired total capacity, up to 144GB. Follow the motherboard’s memory population guidelines to maximize bandwidth and stability, prioritizing populated channels to maintain symmetry and proper timing alignment.
• Secure the S7016GM3NR into the chassis chassis with the standoffs aligned to the I/O cutouts. Attach the power supply connectors, front-panel cables, and data cables to the motherboard as outlined in the user guide. Verify all cables are firmly seated and free of interference with fans or other components.
• Power on and enter the BIOS/UEFI to configure CPU and memory settings. Enable ECC support, configure memory speed to the supported profiles (800/1066/1333), set the boot order, and enable IPMI if you plan remote management. If you plan to run a RAID array, install and configure the appropriate RAID controller or storage expansion cards, then update firmware to the latest version for best compatibility.

Frequently asked questions

• Q: What CPUs are compatible with the Tyan S7016GM3NR?
• A: The board supports up to two Intel Xeon Nehalem-EP 5500-series processors, providing scalable compute for virtualization, databases, and enterprise workloads.
• Q: How much memory can be installed and in what configuration?
• A: You can install up to 144GB of DDR3 Registered ECC memory at 800/1066/1333 speeds. For best performance, populate memory channels according to the motherboard’s guidance to maximize bandwidth and stability.
• Q: What form factor is this motherboard, and will it fit my chassis?
• A: The S7016GM3NR uses an Extended ATX (E-ATX) form factor, so ensure your chassis supports E-ATX motherboards and has adequate clearance for dual CPUs and cooling solutions.
• Q: Does it include remote management capabilities?
• A: Yes, it provides IPMI 2.0 with remote management features (KVM over IP), enabling out-of-band monitoring, administration, and troubleshooting.
• Q: What storage options are available on this board?
• A: Storage is provided via SATA/SAS interfaces through the ICH10/R chipset, with compatibility for various RAID controllers to suit different reliability and performance requirements.
