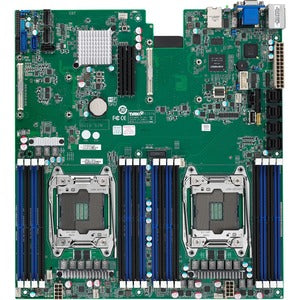

TYAN S7076 Server Motherboard - Intel C612 Chipset, Socket R LGA-2011, Extended ATX

The TYAN S7076 is purpose-built for high-density 1U rackmount deployments where airflow, reliability, and scalable performance matter most. This server motherboard places dual Intel Xeon horsepower in a compact Extended ATX footprint, optimized to thrive in data centers, private clouds, and edge computing nodes. Built around the Intel C612 chipset, the S7076 delivers enterprise-grade stability, robust I/O capabilities, and a platform capable of handling demanding virtualization, database, and multi-stream workloads. If you need a motherboard that balances thermal efficiency with expansion flexibility, the TYAN S7076 stands out as a purpose-driven choice for modern server environments.

• 1U rackmount optimization with a spread-core CPU socket layout designed to maximize airflow in tight chassis, helping maintain consistent performance under load and improving cooling efficiency in dense server racks.
• Intel C612 chipset provides reliable server-level features, proven compatibility, and a robust foundation for dual Xeon configurations, delivering steady compute performance and platform stability for enterprise workloads.
• Socket R LGA-2011 compatibility supports dual Intel Xeon processors, enabling strong multi-core performance, virtualization readiness, and parallel processing capabilities essential for data centers and virtualization-intensive deployments.
• Extended ATX form factor offers flexible expansion options to accommodate essential I/O controllers, storage interfaces, network adapters, and other enterprise-grade components required for scalable server builds.
• Designed specifically for data center workloads that demand horsepower and reliability, the S7076 balances thermal management, expansion capability, and processor power to meet the evolving needs of modern servers.

Technical Details of TYAN S7076

• Chipset: Intel C612
• CPU Socket: LGA-2011 (Socket R)
• Form Factor: Extended ATX
• Designed for 1U rackmount deployments
• Supports dual Intel Xeon processors

How to Install TYAN S7076

• Prepare a compatible 1U chassis and power supply with adequate cooling to support dual Xeon operation and the I/O load you plan to attach.
• Install the motherboard into the chassis using the appropriate standoffs and ensure alignment with backplane and I/O shield mounting points.
• Install the CPUs into the LGA-2011 sockets according to the processor manufacturer’s guidance, apply the proper thermal interface material, and secure the heatsinks to ensure reliable cooling.
• Install memory modules in accordance with the board’s guidelines for dual-processor operation, ensuring correct channel and population for optimal bandwidth and reliability.
• Attach expansion cards, storage controllers, and network adapters as needed, route power and data cables carefully to promote airflow, and connect any required chassis sensors or front-panel connections.
• Power on the system, enter the BIOS/UEFI, configure CPU and memory settings, enable the required I/O interfaces, and set the boot sequence. Install your preferred operating system or virtualization platform once the hardware is recognized and stable.

Frequently Asked Questions

• Q: Does TYAN S7076 support dual Intel Xeon processors? A: Yes. The motherboard is designed for dual Xeon operation using the LGA-2011 Socket R with the Intel C612 chipset to deliver high multi-core performance for virtualization, databases, and other server workloads.
• Q: What form factor is TYAN S7076? A: It is an Extended ATX motherboard optimized for 1U rackmount deployments, providing a compact yet expandable server platform.
• Q: What workloads is TYAN S7076 best suited for? A: The S7076 is well-suited for data center tasks, virtualization environments, and enterprise workloads that require reliable compute power, solid I/O, and scalable expansion in a compact chassis.
• Q: What chipset does TYAN S7076 use? A: The motherboard uses the Intel C612 chipset, known for stable server performance and reliable compatibility with Xeon processors and enterprise I/O components.
• Q: How do I ensure optimal cooling and airflow for this motherboard? A: Use a properly rated 1U chassis with adequate fans and airflow design; position the motherboard with attention to cable routing to minimize obstruction of air paths, and configure BIOS/firmware settings to optimize thermal management for your dual-processor setup.
