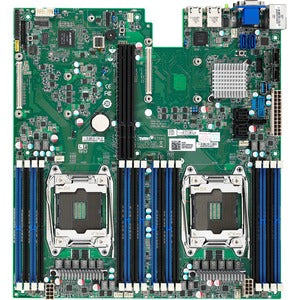

TYAN S7086 Server Motherboard - Intel C612 Chipset, Socket R LGA-2011, Extended ATX

The TYAN S7086 server motherboard is purpose-built for high-density 2U rackmount deployments, delivering the power and reliability data centers demand. Built around the Intel C612 chipset and Socket R LGA-2011, this Extended ATX board is engineered to optimize airflow with a spread-core CPU socket layout, helping to prevent hot spots and sustain performance under heavy workloads. Designed for enterprise-grade workloads, the S7086 is a dual-processor platform that unlocks the full potential of Intel Xeon E5-2600v3/v4 processors, making it ideal for virtualization clusters, mission-critical databases, real-time analytics, and storage-intensive applications. In a modern data center, where efficiency and uptime matter, TYAN’s engineering prioritizes maintainability, scalable I/O, and robust reliability. The S7086 combines a denser thermal profile with rich expansion capabilities, enabling flexible configurations that accommodate current needs and future growth. With server-grade features spanning memory, I/O, management, and power delivery, this motherboard is built to deliver long-term value, predictable performance, and streamlined maintenance in demanding environments.

• Optimized 2U rackmount design with a spread-core CPU socket layout to maximize airflow and cooling efficiency in dense server chassis, reducing thermal throttling and enabling sustained performance across long-running workloads. The layout supports effective hot air removal, lower interior temperatures, and quieter, more consistent operation under pressure, which translates into higher reliability for virtualization hosts, database nodes, and high-transaction servers. With careful attention to airflow paths, cable management, and fan control, the S7086 helps data centers achieve better energy efficiency while maintaining peak performance during multi-VM, containerized, or service-oriented workloads.
• Supports dual Intel Xeon E5-2600v3/v4 processors for exceptional multi-core performance, virtualization scalability, and robust multiprocessing. This dual-processor capability brings increased core counts, larger cache, and enhanced memory bandwidth, enabling better consolidation ratios for virtual machines, faster database queries, and improved parallel processing for workloads such as analytics, rendering, and HPC tasks. The platform is designed to balance CPU power with efficient data movement across PCIe lanes and memory channels, so workloads that demand parallelism and throughput benefit from consistent, predictable performance across time.
• Intel C612 chipset delivers robust enterprise features, high memory bandwidth, and reliable I/O to support data-intensive applications. The chipset’s architecture provides support for server-grade memory configurations, PCIe connectivity, integrated management features, and platform reliability enhancements that reduce downtime. By leveraging the C612 ecosystem, the S7086 offers compatibility with a wide range of enterprise storage controllers, NIC options, and high-speed I/O devices, making it suitable for virtualization hosts, database servers, and storage front-ends in enterprise environments.
• Comprehensive expansion and I/O options, including multiple PCIe slots and extensive storage connectivity, enable flexible configurations for virtualization, HPC, and storage servers. The S7086 is designed to accommodate high-bandwidth add-ons such as PCIe NVMe adapters, SAS/SATA storage controllers, and network interface cards, while preserving airflow and cable organization in a 2U chassis. The board supports diverse I/O resources to handle dense virtual environments, large memory footprints, and fast data transfer requirements, helping administrators tailor configurations for specific SLAs and workload profiles.
• Server-grade reliability features, including ECC memory support, IPMI management, and hot-swap capabilities, provide uptime-focused safeguards for continuous operation. ECC memory helps detect and correct single-bit errors, preserving data integrity during long-term processing. IPMI management enables remote monitoring, warning alerts, firmware updates, and remote maintenance, reducing the need for onsite intervention. Hot-swap capable components and robust power delivery contribute to resilience in the face of hardware faults or maintenance windows, making the S7086 well-suited for mission-critical services and time-sensitive workloads in data centers.

Technical Details of TYAN S7086 Server Motherboard

• Chipset: Intel C612
• CPU Socket: Socket R LGA-2011
• Form Factor: Extended ATX (EA-ATX)
• Memory Support: Dual-processor memory architecture with ECC DIMMs (capacity varies by configuration)
• Processors: Supports dual Intel Xeon E5-2600v3/v4 CPUs
• Expansion: Multiple PCIe 3.0 expansion slots with various storage controller options (SATA/SAS)
• Networking: Onboard Ethernet options with potential for additional NICs via PCIe
• Management and Reliability: IPMI management, remote monitoring, and rugged power delivery design for enterprise uptime

How to Install TYAN S7086 Server Motherboard

Installing the TYAN S7086 requires a compatible 2U rackmount chassis, appropriate cooling solutions, and a plan for dual Xeon processors and memory modules. Begin by verifying chassis compatibility and ensuring you have the correct standoffs and mounting hardware. Install the CPU(s) into the Socket R LGA-2011 sockets, apply thermal interface material as recommended by the cooler manufacturer, and secure the heatsinks with the appropriate retention hardware. Populate ECC memory DIMMs in the supported configuration for a dual-processor setup, following the motherboard’s memory population guidelines to maximize bandwidth and reliability. After memory is installed, place the I/O shield in the chassis, align and mount the TYAN S7086 to the chassis standoffs, then connect power and data cables securely. Install any PCIe expansion cards, storage controllers, or NVMe adapters as needed, ensuring proper seating and clearance for airflow. Connect network interfaces, storage devices, and any IPMI management modules. Finally, power on and enter the BIOS/UEFI to configure processor options, memory timing, boot devices, and RAID settings. Update firmware to the latest versions and configure IPMI for remote management. Verify system health with diagnostic LEDs or IPMI sensors, confirm that temperatures and fan speeds are within expected ranges, and run a baseline stress test to ensure stability under load. Throughout installation, observe static precautions and maintain clean cable management to preserve airflow and serviceability in the 2U chassis.

Frequently asked questions

• Q: What form factor does the TYAN S7086 use? A: Extended ATX (EA-ATX) and designed for 2U rackmount deployments.
• Q: Which CPUs are supported? A: Dual Intel Xeon E5-2600v3/v4 processors with Socket R LGA-2011.
• Q: What chipset is on the board? A: Intel C612 chipset.
• Q: How is memory configured? A: Supports a dual-processor memory architecture with ECC DIMMs; capacity depends on configuration and CPU/memory choices.
• Q: Does it support remote management? A: Yes, IPMI management features are included to monitor health and assist with remote administration.
