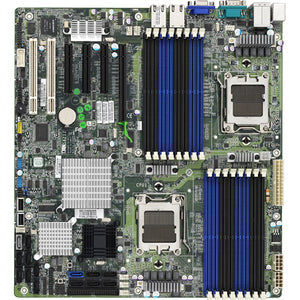

Tyan S8212WGM3NR Server Motherboard — AMD SR5690 Chipset, Socket F LGA-1207, Extended ATX

The Tyan S8212WGM3NR is a high-performance server motherboard engineered for demanding workloads, virtualization, and data-intensive applications. Built around the AMD SR5690 chipset, this motherboard is designed to deliver dependable, scalable computing for multi-processor environments. It supports Dual AMD Opteron 2300/2400 series processors, delivering robust threading, memory bandwidth, and multiprocessing power to enterprise-grade servers. With extensive storage options, multiple network interfaces, and abundant I/O, the S8212WGM3NR is a solid foundation for mission-critical deployments that require reliability, uptime, and optimized performance per watt. Whether you’re building a private cloud, a database server, or a virtualization host, this Extended ATX platform ensures you have headroom for growth, efficient resource utilization, and streamlined manageability in a rack- or tower-based chassis.

• Dual CPU support with AMD Opteron 2300/2400 series processors enables strong parallel processing performance for virtualization, database workloads, and concurrent tasks. The two CPU sockets on the Socket F LGA-1207 interface are designed to maximize core utilization, thread distribution, and cache efficiency, giving you the headroom to run multiple virtual machines or heavy workloads side by side without bottlenecks. The motherboard’s layout and power delivery are optimized for stability under sustained load, heat, and temperature fluctuations in data center environments.
• Extensive memory capacity — up to 128GB of REG/ECC memory — provides ample headroom for in-memory databases, large virtualization host environments, and memory-intensive applications. Registered ECC memory helps maintain data integrity under heavy I/O operations, while capacity ensures large workloads can be consolidated on fewer servers, reducing footprint and operational costs. Memory channels are designed to support efficient bandwidth distribution across the dual processors, allowing faster inter-CPU communication and improved throughput for demanding workloads.
• Comprehensive I/O and storage connectivity — 3 Gigabit Ethernet LAN ports deliver robust network throughput and redundancy options for clustering, management, and data traffic. The drive interfaces include 6 SATA-II connectors and 8 SAS connectors, offering flexible storage configurations for RAID setups, hot-swappable disk arrays, and high-capacity backplanes. An IDE connector remains available for legacy devices or boot-related peripherals, while 8 USB ports provide convenient external device support for management consoles, diagnostics, and peripheral expansion. This broad mix of interfaces supports scalable, enterprise-grade storage architectures and streamlined data access.
• Extended ATX form factor and chassis compatibility — designed to fit standard Extended ATX enclosures, ensuring compatibility with a wide range of server chassis options. The board’s layout optimizes airflow, component spacing, and cable management to facilitate efficient cooling and power delivery. Its robust construction, combined with quality capacitors and solid-state reliability, supports continuous operation in racked configurations, ensuring uptime and service continuity for critical applications.
• Management and performance optimization — the S8212WGM3NR is built to balance raw processing power, memory bandwidth, and I/O to deliver dependable server performance. With features tailored for enterprise workloads, administrators can optimize virtualization hosts, database servers, or compute-intensive applications for better throughput, resource utilization, and energy efficiency. The combination of AMD Opteron CPUs, ample ECC memory, and diverse I/O options makes this motherboard a versatile foundation for scalable, reliable servers.

Technical Details of Tyan S8212WGM3NR

• Processor support: Dual AMD Opteron 2300/2400 series processors
• CPU socket: Socket F LGA-1207
• Chipset: AMD SR5690
• Memory support: Up to 128GB REG/ECC memory
• Memory type: Registered ECC memory (REG/ECC)
• Storage interfaces: 6 x SATA-II connectors, 8 x SAS connectors, 1 x IDE connector
• Network: 3 x Gigabit Ethernet LAN ports
• USB: 8 USB ports
• Form factor: Extended ATX (E-ATX)

How to install Tyan S8212WGM3NR

Installing the Tyan S8212WGM3NR follows standard server motherboard procedures, adapted for dual-CPU configurations and enterprise storage. Start by preparing a compatible Extended ATX chassis with sufficient clearance for dual Opteron CPUs, large heatsinks, and airflow inlets. Ensure your power supply delivers stable, clean power with appropriate rail capacity for dual processors and memory modules. Ground yourself to prevent static discharge before handling components.

1) Install the chassis standoffs in the motherboard mounting area and align the S8212WGM3NR with the rear I/O shield and I/O openings. Secure the board with the provided screws, ensuring it sits flat and evenly in the chassis.

2) Install CPU coolers for the dual Opteron processors. Apply thermal paste (as recommended by the cooler manufacturer) and attach coolers securely to ensure optimal contact and heat dissipation. Verify that cooling airflow channels align with the case fans to promote efficient thermal management during sustained workloads.

3) Insert memory modules into the appropriate DIMM slots. For best performance, populate channels according to the motherboard’s memory channel guidelines (use the recommended population order from the manual and adhere to ECC notebook values). Verify that memory is properly seated and that there are no bent pins or misaligned modules.

4) Connect power, ensuring both CPU and main power connectors are secured. Route power cables cleanly to avoid obstructing fans or airflow, and connect any optional redundant power supply cables if your chassis and power supplies support hot-swapping or redundancy. Confirm that all fans are connected and functioning before powering on.

5) Attach storage devices and backplanes as needed. Install operating system drives via the IDE connector or through the SAS/SATA backplane with your RAID controller or onboard storage controller. If using a RAID card, install it in a suitable PCIe slot or expansion slot that accommodates your configuration, and wire up data and power cables to the drives.

6) Connect the three Gigabit Ethernet LAN ports to your network infrastructure. If you plan to deploy virtualization or clustering, configure VLANs and bonding as appropriate to maximize throughput and redundancy. Attach USB peripherals only after the system has booted to avoid any boot-time conflicts.

7) Perform a power-on self-test (POST) to verify processor, memory, and essential I/O recognition. Enter the BIOS/UEFI setup to configure processor options, memory settings, and boot sequence. Save settings and exit, then install your operating system or hypervisor as you would on a standard server platform. Ensure drivers for storage controllers, NICs, and management utilities are available and up to date for optimal performance and stability.
