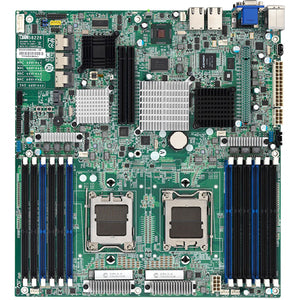

Tyan S8226 S8226WGM3NR Server Motherboard – AMD SR5690 Chipset

Engineered for data centers and enterprise environments, the Tyan S8226 S8226WGM3NR Server Motherboard delivers reliable dual‑CPU scalability in a compact SSI EEB form factor. Built around the AMD SR5690 chipset and powered by Socket C32 (LGA‑1207), this board is optimized for 1U and 2U server deployments that demand strong multi‑threaded performance, robust I/O, and long‑term reliability. It supports up to two AMD Opteron 4100/4200 series processors (Lisbon/Valencia), making it a versatile platform for virtualization, database, IPDC, and other demanding workloads in enterprise environments. The combination of dual‑processor capability, fast interconnects, and enterprise‑grade design ensures predictable performance under heavy workloads, while remaining compatible with data center rack infrastructure.

• Dual‑processor capability: The board supports up to two AMD Opteron 4100/4200 series processors, providing parallel compute resources ideal for virtualization, VDI, and multi‑threaded enterprise applications.
• High‑speed interconnect: It features two HyperTransport 3.0 links, delivering a theoretical bandwidth up to 25.6 GB/s (6.4 GT/s per link) to accelerate CPU‑to‑CPU and CPU‑to‑I/O communication for demanding workloads.
• Socket and chipset: With Socket C32 LGA‑1207 paired with the AMD SR5690 chipset, the motherboard is engineered for stable, scalable I/O performance and enterprise‑class reliability in dense server configurations.
• Form factor for data centers: The SSI EEB (Server System Infrastructure Entry/Enhanced Backplane) form factor enables easy integration into 1U and 2U rack‑mount systems, delivering a balance of compact footprint and expansion flexibility for data‑center deployments.
• Enterprise‑grade stability and compatibility: Designed to meet the needs of IPDC, enterprise applications, and mission‑critical workloads, this motherboard emphasizes robust power delivery, streamlined management, and long‑life operation in demanding environments.

Technical Details of Tyan S8226 S8226WGM3NR Server Motherboard

• CPU Support: Dual AMD Opteron 4100/4200 series processors (Lisbon/Valencia) for significant multitasking performance and parallel processing capacity.
• Socket: Socket C32 (LGA‑1207) designed for AMD Opteron 4100/4200 processors, enabling higher core counts and improved core throughput in multi‑processor configurations.
• Chipset: AMD SR5690 chipset, chosen for enterprise reliability and scalable I/O performance in dense server deployments.
• Form Factor: SSI EEB form factor, optimized for compact 1U/2U server chassis and streamlined integration into data‑center rack environments.
• Interconnect: Supports 2 HyperTransport 3.0 links with up to 25.6 GB/s total bandwidth (6.4 GT/s per link) to maximize inter-processor communication and I/O throughput.
