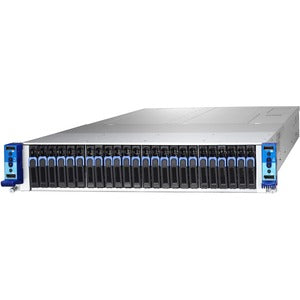

Tyan Thunder CX TN200B7108-X4S Barebone System — 2U Rack-Mountable, Dual Xeon, Socket P LGA-3647

Elevate your data center with a purpose-built barebone system engineered for relentless workloads. The Tyan Thunder CX TN200B7108-X4S delivers a compact, 2U rack-mountable chassis that accommodates two Intel Xeon processors on Socket P LGA-3647 and the high-performance Intel C621 chipset. This design is tailored for virtualization farms, database engines, HPC tasks, and storage-intensive deployments where density, reliability, and expandability matter most. With support for up to 2 TB of DDR4 RAM across 16 DIMM slots, a generous 24 x 2.5" drive bays, and robust management via ASPEED AST2500, the TN200B7108-X4S balances scalable compute with practical storage and operational efficiency. Whether you are building a private cloud, a virtualization cluster, or a high-throughput data node, this barebone system provides a solid foundation to tailor your exact specifications while delivering enterprise-grade performance and reliability.

• Dual-processor architecture with Socket P LGA-3647 support and the Intel C621 chipset enables exceptional parallel processing, enabling larger virtual machines, complex databases, and multi-threaded workloads to run side by side with minimal contention.
• Massive memory capacity: up to 2 TB of DDR4 SDRAM across 16 DIMM slots. This expansive memory footprint is ideal for in-memory databases, large-scale virtualization, real-time analytics, and memory-intensive workloads, with headroom for growth as your needs evolve.
• Extensive storage capacity: 24 hot-swappable 2.5" bays paired with Serial ATA/600 RAID-capable controllers provide flexible, scalable storage configurations, high I/O throughput, and resilient data protection for demanding workloads and archival needs.
• Enterprise-grade management and graphics: ASPEED AST2500 with 32 MB graphics memory delivers robust out-of-band management, remote console access, and system monitoring, enabling efficient remote administration and troubleshooting in data-center environments.
• Rugged 2U chassis with ample PCIe expansion and rack-ready design supports a wide range of enterprise workloads, from virtualization to databases to HPC, while maintaining serviceability and scalable I/O options in a compact footprint.

Technical Details of Tyan Thunder CX TN200B7108-X4S Barebone System

• Chassis: 2U rack-mountable enclosure designed for dense data-center deployments
• CPU support: 2 x Processor sockets (Socket P LGA-3647); supports dual Intel Xeon processors
• Chipset: Intel C621 chipset to handle high-core-count CPUs, memory bandwidth, and I/O
• Memory: Up to 2 TB DDR4 SDRAM across 16 DIMM slots; designed for memory-intensive applications and virtualization
• Storage bays: 24 x 2.5" drive bays for flexible storage expansion and RAID configurations
• Storage interface: Serial ATA/600 RAID-supported controller for reliable data protection and high throughput
• Graphics and management: ASPEED AST2500 graphics controller with 32 MB for robust remote management
• Management capabilities: Integrated management features via AST2500 enable remote KVM, monitoring, and out-of-band access

How to install Tyan Thunder CX TN200B7108-X4S

• Prepare compatible CPUs: Ensure you have two Intel Xeon processors that fit Socket P LGA-3647 and are supported by the TN200B7108-X4S chassis.
• Install CPUs into the two Socket P LGA-3647 sockets according to the processor installation guidelines, applying thermal interface material and securing airflow clearance.
• Populate memory: Insert DDR4 DIMMs into the 16 memory slots, following the manufacturer’s memory population guidelines for optimal interleaving and performance.
• Install storage: Add 24 x 2.5" drives into the drive bays and connect them to the onboard RAID controller or expansion cards as required for your RAID configuration.
• Rack and power: Mount the barebone system in a compatible 19-inch rack, connect to a reliable power source with redundancy if available, and configure the BIOS/RAID settings for your intended OS and workload.

Frequently asked questions

• Q: What is the maximum memory capacity of the TN200B7108-X4S? A: Up to 2 TB DDR4 SDRAM across 16 DIMM slots.
• Q: How many CPUs does this barebone support? A: It supports 2 x processors on Socket P LGA-3647.
• Q: How many drive bays are available? A: 24 x 2.5" drive bays for flexible, scalable storage expansion.
• Q: What chipset powers this system? A: Intel C621 chipset, optimized for dual-processor configurations and high memory bandwidth.
• Q: What management features are included? A: ASPEED AST2500 with 32 MB graphics provides out-of-band management, remote console, and system monitoring for convenient data-center administration.
