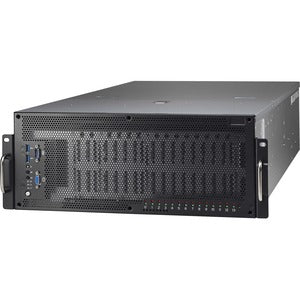

Tyan Thunder HX FA77-B7119 Barebone System

The Tyan Thunder HX FA77-B7119 barebone system is a premium, enterprise-grade 4U chassis designed for data centers and virtualization environments that demand dense compute and expansive storage. Built around dual Processor support and the Intel C621 chipset, this barebone solution delivers dependable performance, scalable memory, and flexible I/O options, all in a rack-mountable form factor that fits neatly into modern server rooms. With thoughtful design for maintenance, management, and future expansion, the FA77-B7119 is a robust foundation for high-density workloads, HPC tasks, and memory-intensive applications.

• Dual-processor readiness (2 x Processor Support) in a single 4U chassis, enabling parallel compute power for virtualization, databases, and multi-threaded workloads. Paired with the Intel C621 chipset, it provides solid platform stability and optimization for enterprise-grade applications while preserving room for future CPU upgrades within the same socket family.
• Massive memory capacity up to 3 TB of DDR4 SDRAM across 24 memory slots, with supported speeds up to DDR4-2933/PC4-23466. This memory backbone is ideal for virtualization hosts, in-memory databases, and scientific computing where large working sets and fast access times are paramount.
• Flexible storage and I/O options include Serial ATA/600 RAID support and a 12 Gb/s SAS controller, delivering dependable storage connectivity and RAID capabilities. The combination supports scalable storage configurations, hot-swappable drives, and data protection features essential for business-critical workloads.
• Integrated management and graphics via ASPEED AST2500 with 32 MB graphics, enabling effective system management, remote console access, and out-of-band administration. This helps IT teams monitor health, configure BIOS/UEFI, and perform maintenance without direct server access.
• Enterprise-grade chassis design for growth the 4U rack-mountable form factor is engineered for data-center environments, offering expansion opportunities for PCIe cards, storage controllers, and additional I/O modules. The FA77-B7119 is built to accommodate expanding workloads and evolving infrastructure needs while delivering reliable, consistent performance.

Technical Details of Tyan Thunder HX FA77-B7119 Barebone System

• Chassis: 4U rack-mountable design optimized for data centers and enterprise deployments.
• Processor support: 2 x Processor Support with Socket P LGA-3647, enabling dual-processor configurations for enhanced multi-core compute power.
• Chipset: Intel C621, delivering platform stability and optimized I/O for server-class workloads.
• Memory: DDR4 SDRAM DDR4-2933/PC4-23466 compatibility, up to 3 TB maximum RAM, with 24 total memory slots to maximize capacity and memory bandwidth.
• Storage controllers: Serial ATA/600 RAID support and 12 Gb/s SAS controller for flexible storage connectivity and performance.
• Graphics / management: ASPEED AST2500 32 MB graphics for remote management, console access, and integrated management capabilities.

How to Install Tyan Thunder HX FA77-B7119 Barebone System

• Prepare the workspace on an anti-static surface and verify all components are present. Ensure power readiness and compatibility with your data-center environment before beginning assembly.
• Install the CPU(s) into the LGA-3647 sockets, apply thermal interface material as required, and attach the appropriate heatsinks or cooling assemblies. Ensure proper seating and secure mounting to maintain thermal performance under load.
• Populate the memory modules into the 24 memory slots following the motherboard’s channeling guidelines. Use matched DIMM kits to maximize memory bandwidth and reliability, and confirm that the memory is recognized in the system BIOS/UEFI before proceeding.
• Connect storage controllers and drives according to your desired RAID and storage topology. Configure RAID settings in the system’s BIOS/UEFI or use the SAS controller interface to establish your preferred arrays, ensuring boot drives and data drives are properly identified.
• Power on and enter the system BIOS/UEFI to configure boot order, virtualization features, and general server settings. Validate hardware visibility, run POST checks, enable necessary features (e.g., VT-d or SR-IOV if applicable), and install your operating system or virtualization platform using preferred installation media.

Frequently Asked Questions

• Q: What are the core advantages of the Tyan Thunder HX FA77-B7119 Barebone System?


  A: It provides a robust 4U architecture with dual-processor support, substantial memory capacity, flexible storage connectivity, enterprise-grade management, and room for expansion—making it suitable for virtualization, HPC, and data-intensive enterprise workloads.

• Q: How many processors can be installed?


  A: The system supports 2 processors in a dual-processor configuration on Socket P LGA-3647.

• Q: What memory capacity is supported?


  A: Up to 3 TB of DDR4 SDRAM across 24 memory slots, with memory speeds up to DDR4-2933/PC4-23466.

• Q: What are the storage capabilities?


  A: It offers Serial ATA/600 RAID support along with a 12 Gb/s SAS controller, enabling flexible storage setups and RAID configurations to protect data and optimize performance.

• Q: Is there built-in management for remote administration?


  A: Yes—ASPEED AST2500 with 32 MB graphics provides integrated management capabilities for remote console access and out-of-band administration, simplifying ongoing maintenance and monitoring.
