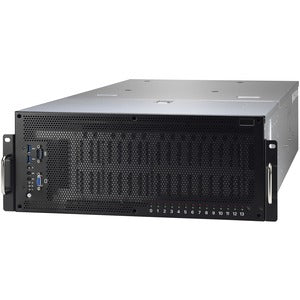

Tyan Thunder HX FT77DB7109 Barebone System

The Tyan Thunder HX FT77DB7109 Barebone System is a premium, enterprise-class 4U rack-mountable platform engineered to deliver robust performance for virtualization, data analytics, and mission-critical workloads. Built around the Intel C621 chipset and designed to support two Processors in Socket P LGA-3647 configuration, this barebone chassis is optimized for density, reliability, and scalable memory. It’s the ideal foundation for data centers and HPC environments that demand aggressive multi-processor efficiency, generous DDR4 memory headroom, and flexible storage options without compromising on manageability. With its modular design, administrators can tailor CPU, memory, and storage configurations to fit evolving workload profiles and business requirements. This system is purpose-built to help IT teams accelerate consolidation, improve virtualization density, and future-proof infrastructure investments.

• Dual-processor capability — Supports 2 x Intel Xeon Scalable processors in Socket P LGA-3647 for exceptional multi-core performance, parallel processing, and throughput across virtualized environments, databases, and HPC workloads. The platform is engineered to maximize cache efficiency and memory bandwidth, delivering consistent performance under heavy workloads.
• Massive memory capacity — Up to 3 TB DDR4 SDRAM with DDR4-2666/PC4-21300 memory support across 24 total memory slots. This enables dense in-memory databases, large-scale virtualization, and memory-intensive analytics while preserving error-correcting capabilities for data integrity in enterprise settings.
• Flexible I/O and storage — Features Serial ATA/600 RAID capabilities and a 12 Gb/s SAS controller to support a wide range of storage configurations, from high-performance SSD arrays to large HDD sprawl. The platform is designed to accommodate enterprise-grade storage topologies, with robust data protection and fast transfer rates to accelerate I/O-bound tasks.
• Integrated management and graphics — Equipped with an ASPEED AST2500 32 MB graphics solution that enables remote management, KVM over IP, and out-of-band console access. This improves administrator efficiency in data centers, especially for remote deployments and maintenance without physical access to the server.
• 4U rack-mountable chassis with enterprise-grade reliability — A rugged, scalable barebone chassis designed for dense, rack-based deployments. The 4U form factor balances space efficiency with expansion capability, providing a solid foundation for enterprise workloads, virtualization clusters, and research infrastructure while supporting future upgrades as workloads grow.

Technical Details of Tyan Thunder HX FT77DB7109 Barebone System

• Chassis form factor: 4U rack-mountable enclosure designed to house dual processors and a broad array of expansion options.
• Processor support: 2 x Processor Support using Socket P LGA-3647, enabling high-core-count CPUs for parallel workloads.
• Chipset: Intel C621 Chipset family, optimized for multi-socket, high-memory bandwidth configurations.
• Memory: Up to 3 TB of DDR4 SDRAM in DDR4-2666/PC4-21300 configurations across 24 memory slots.
• Storage controllers: Serial ATA/600 RAID support with 12 Gb/s SAS controller for flexible storage architectures and fast data transfer.
• Management and graphics: ASPEED AST2500 with 32 MB graphics memory for remote management, KVM, and console operations.
• Expansion and I/O: Designed to accommodate enterprise-grade expansion cards, RAID adapters, and SAS/SATA storage backplanes to meet diverse data-center requirements.
• Network readiness: Optimized for high-throughput networking and virtualization workloads, with support for multiple PCIe lanes to connect 10 GbE/25 GbE adapters as needed.
• Power and cooling: Built for reliability in dense 4U deployments with efficient power delivery and cooling compatibility for sustained performance under load.

How to Install Tyan Thunder HX FT77DB7109 Barebone System

• Plan and prepare — Verify the intended CPU(s) and memory configuration fit your workload requirements. Ensure you have compatible processors for Socket P LGA-3647 and ECC DDR4 RAM to maximize reliability and performance.
• Install processors — Open the chassis, install up to two compatible Intel Xeon processors into the Socket P LGA-3647 sockets, and secure with the included retention mechanism. Apply thermal paste if required and attach heatsinks per manufacturer guidelines.
• Install memory — Insert DDR4 DIMMs in the correct channel configuration for optimal memory bandwidth and bandwidth fairness across all slots. Ensure memory is ECC-enabled if your workloads require error correction.
• Configure storage — Connect SATA/SAS storage devices or backplanes as required. Install any RAID controllers or SAS adapters, then configure RAID levels and boot volumes in the system BIOS or UEFI utility supplied by the chassis provider.
• Network and management setup — Install and connect necessary NICs for data-plane traffic. Use the ASPEED AST2500 management interface for remote console access, configure IPMI/KVM settings, and update firmware to ensure secure remote management.
• Power-on and validate — Power up the system, enter the BIOS/UEFI, and validate detected CPUs, memory, and storage. Run standard diagnostic tests and ensure all management interfaces respond. Plan a deployment image with the appropriate hypervisor or operating system for your workload.

Frequently asked questions

• Q: How many processors can this barebone system support?
  A: It supports up to two Intel processors in Socket P LGA-3647, delivering dual-processor performance for demanding workloads.
• Q: What is the maximum RAM capacity?
  A: Up to 3 TB of DDR4 SDRAM across 24 memory slots, using DDR4-2666/PC4-21300 modules, enabling substantial in-memory computing capabilities.
• Q: What storage options are supported?
  A: The system provides SATA/600 RAID support and a 12 Gb/s SAS controller, allowing flexible configurations of fast SSDs and high-capacity HDDs with RAID protection.
• Q: Does it include management graphics for remote administration?
  A: Yes, it includes an ASPEED AST2500 32 MB graphics solution for out-of-band management, remote KVM, and system console access.
• Q: Is this a complete server or a barebone that requires additional components?
  A: This is a barebone system designed to be completed with CPUs, memory, and storage according to your workload. It provides the chassis, motherboard framework, and essential controllers, but CPUs, RAM, and drives are typically not included.
