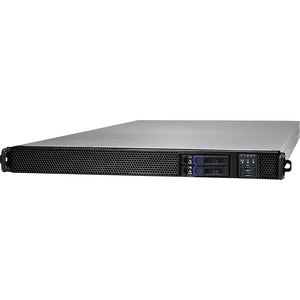

Tyan Thunder HX HX GA88B5631 Barebone System

Designed for data centers, enterprise workloads, and demanding applications, the Tyan Thunder HX GA88B5631 barebone system delivers compact 1U rack-mount versatility with robust server-grade components. Built to host a single high-performance processor, this barebone chassis lays a powerful foundation for scalable performance, expansive memory, and flexible storage options. If you’re seeking an efficient, space-saving solution that can be customized for virtualization, HPC workloads, or edge deployments, the GA88B5631 is engineered to meet the challenge with reliability and precision.

• 1U rack-mountable barebone design optimized for dense deployments in data centers and rack rooms.
• 1 x Processor support with Socket P LGA-3647 and Intel C621 chipset, enabling powerful compute capabilities for demanding workloads.
• Massive memory capacity: up to 1.50 TB DDR4 SDRAM with DDR4-2666/PC4-21300 support across 12 memory slots for exceptional virtualization, memory-intensive apps, and large datasets.
• Flexible storage and I/O: Serial ATA/600 RAID compatibility with 12 Gb/s SAS controller, delivering fast, reliable data access and flexible storage configurations.
• Remote management and graphics: ASPEED AST2500 graphics and management controller provide out-of-band access, IPMI capabilities, and streamlined server administration for hands-off operations.

Technical Details of Tyan Thunder HX HX GA88B5631

• Form factor: 1U rack-mountable chassis designed for space-saving data center deployments.
• Processor support: 1 x Processor (Socket P LGA-3647) to accommodate select server-grade CPUs for high-core-count performance.
• Chipset: Intel C621 chipset, purpose-built for enterprise reliability, PCIe expansion, and robust I/O handling.
• Memory: Up to 1.50 TB DDR4 SDRAM with DDR4-2666/PC4-21300 support across 12 total memory slots, enabling large-memory configurations for virtualization and analytics.
• Storage and I/O: Serial ATA/600 RAID support with 12 Gb/s SAS controller for scalable storage throughput and protection features.
• Graphics and management: ASPEED AST2500 graphics processor for integrated management and remote administration capabilities (BMC features).

How to install Tyan Thunder HX HX GA88B5631

• Prepare the chassis: Ensure you have a compatible rack, power supply, and cooling in place. Verify the rack rails and mounting hardware are ready for a 1U installation.
• Install the processor: Open the LGA-3647 socket, align the processor with the socket, apply thermal interface material as required, and secure the CPU according to the motherboard/barebone guidelines. Attach the appropriate CPU cooler to meet cooling requirements.
• Populate memory: Insert DDR4 DIMMs into the 12 memory slots following the recommended population order for optimal memory channel performance. Verify that memory modules are fully seated and latched to ensure proper operation.
• Connect storage and peripherals: Attach SATA/SAS drives or expansion cards as needed. Configure the SAS controller and any RAID settings in the system BIOS/UEFI or through the management interface after initial boot.
• Final assembly and boot: Install the chassis into the rack, connect power and management cables, and power on. Enter the management console to configure IPMI/BMC settings, verify hardware status, and install any required drivers or firmware updates for optimal stability.

Frequently asked questions

• What is the main purpose of the Tyan Thunder HX GA88B5631 barebone system?

The GA88B5631 is a compact, 1U rack-mountable barebone system designed to host a single processor with a server-grade chipset (Intel C621) and substantial memory capacity (up to 1.50 TB DDR4). It is ideal for data centers, virtualization hosts, HPC nodes, and edge deployments where space efficiency and scalability matter.

• How many processors does this barebone support?

It supports 1 x processor, using the Socket P LGA-3647 interface. This makes it suitable for single-socket server configurations that require high-core-count CPUs and strong per-core performance.

• What memory capacity can I expect with this system?

The system supports up to 1.50 TB of DDR4 SDRAM across 12 memory slots, with DDR4-2666/PC4-21300 speed options. This level of memory is well-suited for virtualization, large in-memory databases, and memory-intensive applications.

• What storage options are available?

It offers Serial ATA/600 RAID support along with a 12 Gb/s SAS controller, providing flexible storage configurations and high-throughput data access for demanding workloads.

• Does it include remote management capabilities?

Yes. The GA88B5631 includes an ASPEED AST2500-based management controller (BMC) that enables out-of-band management, IPMI, and remote administration to simplify monitoring, maintenance, and firmware updates.

• Is this system suitable for virtualization and HPC workloads?

Absolutely. With support for up to 1.50 TB of DDR4 memory, a capable Intel C621 chipset, and a flexible storage subsystem, the barebone is well-suited for virtualization hosts, small to mid-scale data center tasks, and certain HPC workloads that benefit from a high-memory, single-socket configuration.
