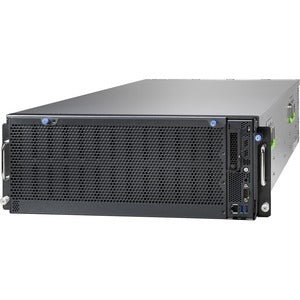

Tyan Thunder SX FA100-B7118 Barebone System – 4U Rack-Mount Dual Socket P LGA-3647

The Tyan Thunder SX FA100-B7118 is a high-performance barebone chassis engineered for data centers, virtualization clusters, and demanding enterprise workloads. Built around the Intel C621 chipset and designed to host two Intel Socket P LGA-3647 processors, this 4U rack-mountable system delivers the scalability, reliability, and manageability required for modern server environments. As a barebone platform, it provides a solid foundation for configuring your ideal dual-processor server, allowing you to tailor CPUs, memory, and storage to your exact workload needs while benefiting from a robust enterprise-ready chassis.

With support for up to 2 TB of DDR4 SDRAM across 16 memory slots, the SX FA100-B7118 is optimized for memory-intensive applications such as in-memory databases, large-scale virtualization, and scientific computing. The DDR4-2666/PC4-21300 memory speeds help maximize bandwidth and efficiency for dense workloads, while the dual-processor design unlocks multi-core performance and improved parallel processing. The platform is purpose-built to handle heavy I/O and storage requirements, combining a Serial ATA/600 RAID controller with a scalable drive strategy to meet the needs of enterprise workloads without sacrificing reliability or uptime.

Administrators will appreciate the built-in management capabilities provided by the ASPEED AST2500 graphic controller, which supports remote console access and IPMI-based management. This makes headless operation in data centers straightforward, reducing the need for physical access and enabling efficient remote diagnostics, firmware updates, and maintenance windows. In short, the SX FA100-B7118 is a versatile, enterprise-grade barebone chassis that balances raw processing power with flexible RAM configurations, scalable storage, and robust remote management capabilities.

• Dual-processor readiness: Designed to house up to two Intel Xeon scalable processors via Socket P LGA-3647, enabling high-core-count configurations and strong multithreaded performance for virtualization, HPC, and database workloads.
• Massive memory capacity: Supports up to 2 TB of DDR4 SDRAM across 16 DIMM slots, with DDR4-2666/PC4-21300 speeds to maximize memory bandwidth and capacity for in-memory analytics, large-scale virtualization, and memory-intensive servers.
• Enterprise-grade chipset: Built on the Intel C621 chipset family, delivering solid PCIe connectivity, reliable I/O performance, and proven compatibility with enterprise server components and expansion options.
• RAID-ready storage controller: Features a Serial ATA/600 RAID controller that enables hardware-accelerated RAID configurations for improved storage reliability, throughput, and data protection in a 4U chassis.
• Graphic and remote-management capability: Includes the ASPEED AST2500 32 MB graphics controller to support remote management, IPMI, and headless operation—ideal for remote data center deployments and efficient system administration.

Technical Details of Tyan Thunder SX FA100-B7118

• Form factor: 4U rack-mountable barebone chassis, designed for data center rack deployment and scalable performance.
• Processor support: Up to 2 x Intel Socket P LGA-3647 processors, enabling dual-processor configurations for heavy multi-core workloads.
• Chipset: Intel C621 chipset, providing robust I/O, PCIe connectivity, and enterprise-class reliability.
• Memory: Up to 2 TB DDR4 SDRAM, with 16 DIMM slots; memory speeds up to DDR4-2666 (PC4-21300).
• Storage controller: Serial ATA/600 RAID supported controller for hardware RAID configurations and reliable data storage options.
• Graphics: ASPEED AST2500 with 32 MB graphics memory for remote management and console access in headless server deployments.
• Drive bays: Supports multiple 3.5-inch drive bays in a 4U chassis design to accommodate enterprise storage expansion and hot-swap configurations where applicable.
• Management: IPMI-compatible management with remote console access via the AST2500 controller, simplifying maintenance in data centers and remote environments.

How to install Tyan Thunder SX FA100-B7118

• Prepare and plan: Confirm the intended CPU model and compatible memory modules for Socket P LGA-3647. Ensure you have the correct cooling solution, thermal paste, and power supply requirements suitable for a dual-processor 4U system.
• Install processors: Open the processor area, install each Intel Xeon-capable CPU into its LGA-3647 socket, align the notches, seating evenly. Apply thermal paste as per the cooler manufacturer’s guidelines, then attach the heatsinks firmly to ensure proper heat transfer.
• Populate memory: Insert DDR4 DIMMs into the 16 memory slots, following the platform’s population guidelines to maximize memory channels and performance. Start with a bootable configuration that ensures all populated channels are recognized by the BIOS/UEFI.
• Configure storage: Install enterprise-grade 3.5-inch drives into the supported bays and connect them to the Serial ATA RAID controller. If you plan hardware RAID, configure the RAID levels (RAID 0, 1, 5, 6, 10, etc.) in the RAID BIOS during initial boot, then install the operating system with the appropriate drivers.
• Power and boot: Connect the power distribution and cables, verify all connections, then power on. Enter the BIOS/UEFI to configure boot order, enable any required virtualization features, and verify CPU, memory, and storage are detected. Install your preferred server operating system and install RAID, chipset, and management drivers as needed.
• Remote management setup: After OS installation, configure IPMI and remote management features via the ASPEED AST2500, enabling remote console access, firmware updates, and monitoring for ongoing maintenance and uptime.

The Tyan Thunder SX FA100-B7118 is designed to be a flexible, scalable platform that can be tailored to a variety of enterprise workloads. By combining dual-processor support with a large memory footprint, a robust storage controller, and dependable remote management, this barebone system delivers a solid base for a range of configurations—from virtualization hosts to data-intensive compute clusters. Remember that as a barebone system, CPUs, RAM, and drives are user-provided, which allows you to optimize for performance, budget, and energy efficiency based on your specific requirements.

Frequently asked questions

• What is the form factor of the Tyan Thunder SX FA100-B7118? It is a 4U rack-mountable barebone system designed for data center deployment.
• How many CPUs can this barebone chassis support? It supports up to two Intel Socket P LGA-3647 processors.
• What is the maximum memory capacity? The platform supports up to 2 TB of DDR4 SDRAM across 16 memory slots, with memory speeds up to DDR4-2666 (PC4-21300).
• What chipset powers this system? The Intel C621 chipset is used to provide robust enterprise-level I/O and PCIe connectivity.
• Does it include RAID and remote management? Yes. It features a Serial ATA/600 RAID controller for hardware RAID and an ASPEED AST2500 graphics controller with 32 MB, enabling IPMI-based remote management for headless operation.
• Is this a complete server or a chassis only? This is a barebone chassis; CPUs, memory, and drives are typically provided by the user to configure a custom dual-processor server solution.
