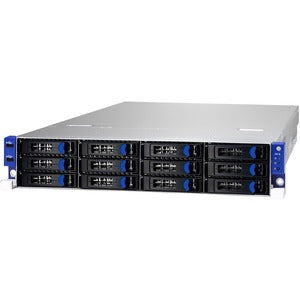

Tyan Thunder SX TN70EB7106 Barebone System – Dual Processor 2U Rack Server

Engineered for enterprise performance, this Tyan Thunder SX TN70EB7106 barebone system blends dual LGA-3647 sockets with the Intel C621 chipset, offering scalable memory, robust storage options, and essential remote management for virtualization, databases, and mission-critical workloads. Built for 2U rack-mount deployments, it delivers a balance of density, reliability, and expandability to meet data center demands. This barebone chassis provides a flexible foundation for configuring a high-performance server tailored to your workloads while staying within your budget and space constraints. Whether you are building out a private cloud, consolidating virtualization hosts, or hosting demanding applications, the TN70EB7106 is designed to scale with your business needs.

• Dual Socket P LGA-3647 support — Facilitates installation of two Intel Xeon scalable processors for parallel compute, high core counts, and strong multitasking performance in a dense 2U form factor.
• Intel C621 chipset — Enterprise-grade chipset delivering robust IO, PCIe pathways, and platform reliability to support demanding workloads and virtualization environments.
• Massive memory capacity — Up to 1 TB DDR4 SDRAM across 16 DIMM slots with DDR4-2666/PC4-21300 speeds, enabling large in-memory databases and virtual machine density.
• Flexible storage with RAID & SAS — Serial ATA/600 RAID support paired with a 12Gb/s SAS controller offers multiple storage configurations, high throughput, and data protection for business-critical data.
• Integrated management and console graphics — ASPEED AST2500 32 MB graphics provide reliable KVM management and remote administration, reducing on-site visits and downtime.

Technical Details of Tyan Thunder SX TN70EB7106 Barebone System

• Form factor — 2U rack-mountable chassis designed for data center racks and standard server rooms.
• Processor support — Dual Socket P LGA-3647 sockets (2 x processor support) for scalable performance with compatible Intel Xeon processors.
• Chipset — Intel C621 chipset for enterprise-grade IO and platform stability.
• Memory — 1 TB DDR4 SDRAM compatible, DDR4-2666/PC4-21300, across 16 memory slots to support large virtualization workloads.
• Storage controllers — Serial ATA/600 RAID capable; 12Gb/s SAS controller for flexible storage expansion and high data throughput.
• Graphics and management — ASPEED AST2500 with 32 MB video memory for onboard management, KVM, and remote console functionality.

How to install Tyan Thunder SX TN70EB7106 Barebone System

• Prepare your rack and workspace. Ensure adequate cooling, power supply availability, and network connectivity before handling the barebone chassis.
• Place the TN70EB7106 into a standard 19-inch rack, align mounting rails, and secure the chassis with the appropriate screws or rails per your data center’s rack kit.
• Install compatible Intel Xeon processors into the two LGA-3647 sockets. Follow the processor documentation for seating and required thermal interface material to ensure reliable contact and heat dissipation.
• Populate memory modules across the 16 DIMM slots to reach your desired capacity. Refer to the memory population guidance for optimal performance and channel interleaving.
• Install and connect storage devices. Configure the Serial ATA/600 RAID setup and the 12Gb/s SAS controller according to your performance and redundancy requirements.
• Connect power, network, and management cables. Ensure the ASPEED management port is accessible for remote administration and monitoring.
• Power on the system and enter the BIOS/UEFI. Configure boot order, storage controller settings, and RAID profiles as needed for your intended operating system or virtualization platform.
• Install your preferred operating system or virtualization environment. Apply firmware and driver updates, and verify hardware health using the onboard management tools.

Frequently asked questions

• Q: Is the TN70EB7106 a complete server out of the box?

  A: No. This is a barebone system intended to be populated with CPUs, memory, storage, and an operating system to meet your workload requirements.

• Q: How many CPUs can be installed?

  A: The system supports two processors through the two Socket P LGA-3647 sockets, enabling dual-processor performance for virtualization and compute-intensive tasks.

• Q: What is the maximum memory capacity?

  A: Up to 1 TB of DDR4 SDRAM across 16 DIMM slots, with support for DDR4-2666/PC4-21300 speeds.

• Q: Does it include remote management?

  A: Yes. The ASPEED AST2500 graphics controller provides onboard management, KVM, and remote console capabilities for easier administration.

• Q: What storage options does it support?

  A: It offers Serial ATA/600 RAID support and a 12Gb/s SAS controller to enable flexible storage configurations and high data throughput.
