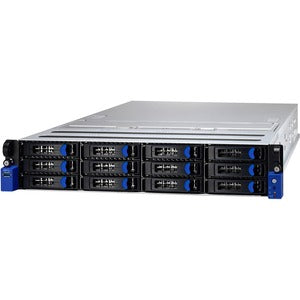

Tyan Thunder SX TN76B7102 Barebone System — 2U Rack-Mountable, Dual Socket P LGA-3647

Elevate your data center performance with the Tyan Thunder SX TN76B7102 Barebone System. Designed for demanding workloads, this 2U rack-mountable barebone platform packs dual Socket P LGA-3647 processor support, a robust Intel C621 chipset, and expansive memory and storage options to handle virtualization, HPC, and enterprise applications with ease. Built for reliability and scalability, the TN76B7102 is the foundation you need for high-density, mission-critical computing.

• Two-processor capability - This barebone system is engineered to support 2 x processors simultaneously via Socket P LGA-3647, delivering exceptional multi-core performance for virtualization, databases, and compute-intensive tasks.
• Massive memory capacity - Configure up to 3 TB of DDR4 SDRAM across 24 DIMM slots, enabling large memory footprints for memory-intensive workloads, in-memory databases, and extensive virtualized environments.
• Powerful chipset and architecture - Powered by the Intel C621 chipset, the TN76B7102 delivers enterprise-grade reliability, advanced I/O throughput, and platform features optimized for data centers and HPC clusters.
• Storage and I/O versatility - Serial ATA/600 RAID support paired with a 12 Gb/s SAS controller provides flexible storage configurations with fast data transfer and robust protection for critical data.
• Management-ready graphics - ASPEED AST2500 with 32 MB of graphics memory supplies integrated management console output, supporting remote management, monitoring, and system recovery for streamlined data center operations.

Technical Details of Tyan Thunder SX TN76B7102 Barebone System

• Form Factor: 2U rack-mountable chassis designed for dense data center deployments.
• CPU Support: 2 x Socket P LGA-3647 sockets to host two enterprise-grade processors.
• Chipset: Intel C621 for enterprise reliability and I/O performance.
• Memory: Up to 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 across 24 memory slots.
• Memory Slots: 24 total memory slots to maximize memory density and bandwidth.
• Storage Interfaces: Serial ATA/600 RAID support and a 12 Gb/s SAS controller for flexible, high-speed storage configurations.
• Graphics: ASPEED AST2500 with 32 MB graphics memory for responsive management and console output.

How to install Tyan Thunder SX TN76B7102 Barebone System

Follow these high-level steps to configure and install the TN76B7102 barebone system in a data center environment and bring it into service:

• Power down and disconnect all cables. Confirm rack space and environmental conditions meet data center standards.
• Install CPUs: If the system requires CPUs to be installed, access the processor sockets, apply the appropriate thermal interface material, and seat the Socket P LGA-3647 processors securely. Attach heatsinks and cooling fans as specified by the processor and chassis guidelines.
• Install memory: Insert DDR4 DIMMs into the 24 slots, following the recommended channel configuration to optimize memory bandwidth and performance.
• Configure storage: Connect SATA drives to the backplane and configure RAID settings as needed via the system controller or management utilities. Ensure SAS devices are detected and properly configured for your workload.
• Rack integration and cables: Slide the barebone system into a standard 19-inch rack, secure it, and connect power, network, and management cables. Prepare for remote management through the ASPEED AST2500 interface.
• Power-on and setup: Apply power, enter the firmware or BIOS setup, configure memory profiles, CPU performance settings, storage controllers, and boot options. Install your operating system and required drivers, then run hardware validation and performance benchmarks to verify system health.

Frequently asked questions

• What is the maximum RAM supported? Up to 3 TB of DDR4 SDRAM across 24 DIMM slots.
• How many processors can it accommodate? It supports 2 x processors using Socket P LGA-3647.
• Which chipset powers this barebone? Intel C621 chipset for enterprise-grade reliability and performance.
• What storage interfaces are available? Serial ATA/600 RAID support and a 12 Gb/s SAS controller for flexible and fast storage configurations.
• Does it include management graphics? Yes, the ASPEED AST2500 provides 32 MB of graphics memory for the management console and remote administration tasks.
