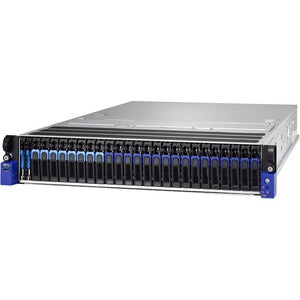

Tyan Transport HX TN76A-B8242 Barebone System — 2U Rack-Mount Dual AMD EPYC SP3 Platform

The Tyan Transport HX TN76A-B8242 Barebone System is a premier 2U rack-mountable server platform designed for data centers, virtualization, HPC, and storage-intensive workloads. Built to accommodate dual AMD EPYC processors on Socket SP3, this barebone chassis delivers scalable performance, expansive memory capability, and substantial storage capacity in a compact 2U form factor. With a 26-bay 2.5" hot-swap backplane, a robust Serial ATA/600 controller, and the reliable ASPEED AST2500 32 MB graphics controller for remote management, the TN76A-B8242 is engineered to boost throughput, improve consolidation, and support demanding applications with energy-aware efficiency. This is the foundation you need to tailor a high-density, enterprise-grade server that fits your specific workload requirements while providing the flexibility to upgrade as demands evolve.

• Powerful dual-processor platform — Supports 2 x AMD EPYC processors on Socket SP3, enabling multi-core performance for virtualization, database, analytics, and compute-intensive workloads. The dual-CPU design amplifies throughput for concurrent tasks, accelerates parallel workloads, and enables higher VM density for consolidated environments.
• Massive memory capacity for heavy workloads — Up to 4 TB of DDR4 SDRAM across 32 memory slots, with DDR4-2666/PC4-21300 memory support. This generous memory footprint is ideal for in-memory databases, large-scale virtualization, and data-intensive applications that demand fast, low-latency access to data.
• Expansive storage and robust I/O — 26 x 2.5" drive bays provide extensive capacity and flexible storage configurations. A Serial ATA/600 controller ensures high-speed data transfer to backplanes and drives, supporting RAID configurations and enterprise-level data protection for critical workloads.
• Integrated management and graphics — The onboard ASPEED AST2500 32 MB graphics controller delivers reliable remote management capabilities, screen output, and system monitoring, helping IT teams manage servers remotely with ease and reducing on-site maintenance visits.
• Engineered for rack-friendly deployment — A true 2U rack-mountable chassis designed for dense data centers, edge deployments, and colocation environments. The TN76A-B8242 balances power, cooling, and expandability in a compact footprint, enabling scalable growth without sacrificing reliability or accessibility.

Technical Details of Tyan Transport HX TN76A-B8242 Barebone System

• Product type: Barebone system
• Form factor: 2U rack-mountable
• Processor support: 2 x AMD EPYC processors on Socket SP3
• Memory: Up to 4 TB DDR4 SDRAM (DDR4-2666/PC4-21300), 32 memory slots
• Storage/backplane: Serial ATA/600 controller; 26 x 2.5" drive bays
• Graphics: ASPEED AST2500 with 32 MB graphics
• Expansion and I/O: Chassis designed for enterprise rack deployment with ample backplane and PCIe expansion options (exact slot count not specified here)
• Note: This is a barebone system; CPUs, memory modules, and drives must be installed separately by the user or system integrator

How to Install Tyan Transport HX TN76A-B8242 Barebone System

• Prepare your workspace and ensure you have compatible AMD EPYC processors, DDR4 memory modules, and 2.5" drives ready for installation.
• Open the chassis, locate the Socket SP3 CPU sockets, and carefully install the dual EPYC processors, following the server’s installation guidelines and using the appropriate thermal interfaces and locking mechanisms.
• Populate memory across the 32 DIMM slots in supported configurations to achieve the desired total capacity, ensuring proper slot interleaving and balanced channel population for best performance.
• Install your 2.5" drives into the 26 bays and connect them to the Serial ATA/600 controller backplane and any required cables or RAID backplanes, then secure all drive trays.
• Close the chassis, mount the system in a compatible rack, connect power and management cables, and power on. Enter the BIOS/firmware to configure CPU settings, memory profiles, and storage RAID/boot options as needed, then proceed with your preferred operating system installation.

Frequently asked questions

• What is included with the TN76A-B8242 Barebone System? This is a barebone chassis designed to accept up to two AMD EPYC processors, memory, and drives. CPUs, RAM, and storage drives are not included by default and must be provided by the user or a systems integrator. The package includes the chassis, motherboard tray, backplane, RAID/SATA controller, and onboard management features such as the ASPEED AST2500 for remote administration.
• How many processors and memory slots does it support? The system supports up to two AMD EPYC processors on Socket SP3 and offers 32 memory slots for DDR4 RAM, enabling substantial memory configurations up to 4 TB when populated with supported DIMMs.
• What storage capacity can I configure? There are 26 x 2.5" drive bays available, connected via a Serial ATA/600 controller for high-speed data transfer. This configuration is well-suited for large-scale storage, databases, and virtualization environments, with room for RAID arrangements as needed.
• Is there built-in remote management? Yes. The ASPEED AST2500 32 MB graphics controller provides remote management capabilities, including console access, monitoring, and management features that simplify IT administration and reduce on-site visits.
• Is this a ready-to-use server or a barebone? This is a barebone system. You will need to supply the processors, RAM, and storage media to complete a functioning server configuration tailored to your workloads and performance requirements.
