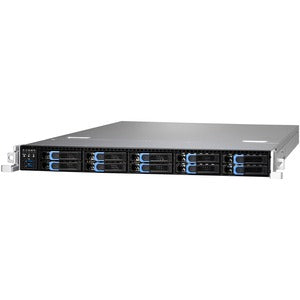

Tyan Transport SX GT62F-B8026-LE Barebone System — 1U Rack-Mount AMD Socket SP3 Server

The Tyan Transport SX GT62F-B8026-LE Barebone System is a compact, high-density 1U server chassis built for demanding data-centre workloads. Engineered around an AMD Socket SP3 platform, this barebone system delivers scalable processing power and a generous memory footprint in a space-efficient 1U form factor. Ideal for virtualization, database acceleration, and storage-heavy deployments, it provides a solid blank slate for customizing memory, storage, and networking to fit your exact enterprise needs. With support for up to 1 TB of DDR4 RAM across 16 DIMM slots, plus ten 2.5" drive bays and 10 SATA interfaces, you can design fast, reliable storage arrays and high-throughput workloads in a dense rack-mounted package. A robust management controller (ASPEED AST2500) and a capable SATA backplane further simplify administration in modern data centers. This barebone chassis is the foundation you need to build a tailor-made server that aligns with your performance, scalability, and budget goals.

• 1U rack-mountable chassis for dense data-center deployments, designed to maximize rack space without compromising airflow or serviceability.
• AMD Socket SP3 platform with support for 1 x processor, delivering scalable compute headroom for virtualization, databases, and enterprise apps while keeping power efficiency in check.
• Massive memory capacity — up to 1 TB of DDR4 memory across 16 total slots, compatible with DDR4-2666 (PC4-21300) speeds to accelerate in-memory workloads and large-scale multi-threaded tasks.
• Flexible storage options — 10 x 2.5" drive bays with 10 SATA interfaces (Serial ATA/600) to enable high-density storage configurations, RAID setups, and fast I/O throughput for heavy data access patterns.
• Integrated management and graphics controller — ASPEED AST2500 32 MB graphics for remote management, monitoring, and console access, enabling streamlined administration and out-of-band control in remote or distributed environments.

Technical Details of Tyan Transport SX GT62F-B8026-LE Barebone System

• Form Factor: 1U Rack-mountable
• Processor Support: 1 x Processor, Socket SP3
• Chipset/Platform: AMD-based Barebone System
• Memory: Maximum RAM 1 TB DDR4 SDRAM DDR4-2666/PC4-21300; 16 Total Memory Slots
• Storage: Serial ATA/600 Controller with 10 SATA Interfaces; 10 x 2.5" Drive Bays
• Graphics/Management: ASPEED AST2500 32 MB Graphics

how to install Tyan Transport SX GT62F-B8026-LE Barebone System

Building a complete server from the Tyan Transport SX GT62F-B8026-LE begins with assembling the core components inside the barebone chassis. Follow these steps to configure a ready-to-run system aligned with your workload requirements:

• Prepare your workspace and gather required components: AMD socket SP3 processor, DDR4 DIMMs (up to 1 TB across 16 slots), and the drives you intend to use in the 2.5" bays. Ensure you have compatible power cables and, if needed, a compatible management network port for remote administration.
• Install the CPU into the Socket SP3 socket on the motherboard. Align the processor correctly with the socket, apply any required thermal interface material (TIM) if your CPU requires it, and secure the heatsink according to the manufacturer’s guidelines to ensure proper cooling.
• Populate the memory slots. Install DDR4 DIMMs in the recommended banks and populate in multiples of channels for optimal memory interleaving and performance. Consult the motherboard layout diagram (in the system manual) for correct slot population order and supported DIMM types.
• Install storage drives into the 2.5" bays and connect SATA backplane cables or individual SATA cables as required by your configuration. Configure any RAID or backplane settings in the BIOS/UEFI or through the management interface after powering up for the first time.
• Secure the motherboard assembly back into the chassis or rack, connect power, and attach networking and management cables to their respective ports. Power on the system and enter the BIOS/UEFI to configure boot order, CPU priorities, memory settings, and any virtualization features as needed.
• Initialize the ASPEED AST2500 management controller if you plan to use remote management. Ensure IP access, credentials, and firewall rules allow you to monitor sensors, view console output, and perform remote maintenance as required.
• Install an appropriate operating system or hypervisor, then proceed with post-installation tuning: enable virtualization extensions if needed, configure storage arrays, set up fans and thermal profiles, and implement consistent backup strategies to protect data integrity.
• Test system stability under representative workloads and verify that all drives, memory channels, and management functions operate correctly. Validate network connectivity, storage performance, and any RAID or backplane configurations before putting the server into production.

Frequently asked questions

• Q: What is the Tyan Transport SX GT62F-B8026-LE? A: It is a barebone 1U rack-mount server chassis designed around a Socket SP3 AMD platform, capable of housing a single processor, extensive memory, and flexible storage, with integrated management support for data-center workloads.
• Q: Can I install multiple processors in this model? A: No. The model supports 1 x processor on the Socket SP3 socket as specified for this barebone system.
• Q: How much memory can I install? A: Up to 1 TB of DDR4 SDRAM across 16 memory slots, with support for DDR4-2666 (PC4-21300) speeds, giving you ample headroom for virtualization and memory-intensive applications.
• Q: How many drives can I install, and what type? A: The chassis supports 10 x 2.5" drives with 10 SATA interfaces (Serial ATA/600), enabling dense storage configurations and flexible RAID options.
• Q: Is this a fully built server? A: No. It is a barebone system intended to be populated with a CPU, memory, and storage components by the user or integrator. Networking hardware, drives, and memory are not included by default and must be procured separately.
• Q: Does it include remote management capabilities? A: Yes. The system includes an ASPEED AST2500 graphics/controller that supports remote management for console access and management tasks, which is valuable for data-centre administration and out-of-band control.
