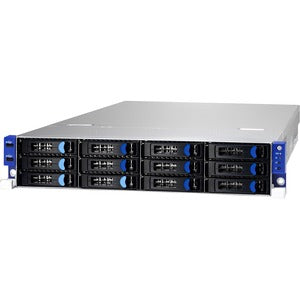

Tyan Transport SX TN70E-B8026 Barebone 2U Rack-Mount Server with Socket SP3 – 1-CPU Support

The Tyan Transport SX TN70E-B8026 Barebone System is designed for data centers and enterprise environments that demand dense, reliable compute with scalable storage. Built in a rugged 2U rack-mount chassis, this single-processor barebone provides a flexible platform for high-performance AMD workloads, virtualization, and storage-intensive applications. With abundant RAM capacity, a generous number of bays, and robust management features, the TN70E-B8026 delivers a solid foundation for customized server builds that require efficiency, expandability, and long-term value.

• Single-socket SP3 AMD platform for scalable performance — The TN70E-B8026 is engineered to host one AMD Socket SP3 processor, enabling reliable, enterprise-grade compute for demanding workloads. This design supports modern AMD CPUs capable of handling virtualization, database operations, and HPC tasks while maintaining a compact 2U footprint. By focusing on a single, high-efficiency socket, the system delivers clean power delivery and optimized thermal performance, which translates into steadier performance under load and easier thermal management in dense data-center racks.

• Massive memory capacity with 16 DIMMs — This barebone supports up to 1 TB of DDR4 SDRAM across 16 memory slots, with DDR4-2666/PC4-21300 speeds. The ample memory range makes it suitable for memory-intensive workloads such as large databases, in-memory caching, virtualization hosts, and scientific computing environments. ECC-capable memory in this platform helps protect against data corruption, improving reliability in 24/7 operations and reducing downtime caused by memory errors.

• Extensive storage options: 12 x 3.5" bays and 16 SATA interfaces — The TN70E-B8026 is designed for scalable storage deployments, featuring 12 hot-swap or fixed 3.5" drive bays and up to 16 SATA interfaces. The integrated Serial ATA/600 controller supports high-speed data transfer, enabling vast local storage capacity for archives, big data analytics, virtualization datastore, and media-intensive workloads. This configuration is ideal for building large, affordable storage pools within a single rack-mount chassis while maintaining straightforward cabling and maintenance.

• Management and graphics: ASPEED AST2500 with 32 MB graphics — A built-in ASPEED AST2500 controller provides robust remote management capabilities, including IPMI and remote console access, which simplifies server administration, firmware updates, and out-of-band maintenance. The 32 MB graphics capability supports remote KVM features, making offsite diagnostics and troubleshooting more efficient for administrators managing multiple servers in data centers or remote locations.

• Rack-ready design with enterprise-ready expandability — The 2U rack-mountable chassis is purpose-built for data-center deployments, offering a balanced blend of drive density, expansion potential, and serviceability. While the exact PCIe expansion options aren’t enumerated here, the TN70E-B8026’s platform design emphasizes modularity and future-proofing, allowing IT teams to tailor configurations to evolving workloads without sacrificing form-factor consistency or manageability.

Technical Details of Tyan Transport SX TN70E-B8026

• Form factor: 2U rack-mountable chassis designed for data-center enclosures and dense deployments.
• Processor support: 1 x Socket SP3 AMD processor socket for enterprise-grade CPUs.
• Chipset and platform: AMD-based barebone platform optimized for reliability and scalable performance in server workloads.
• Memory: Up to 1 TB DDR4 SDRAM, DDR4-2666/PC4-21300, across 16 DIMM slots; ECC memory support for data integrity.
• Storage architecture: 12 x 3.5" drive bays; 16 SATA interfaces; Serial ATA/600 controller for high-speed data transfer and flexible storage configurations.
• Graphics/management: ASPEED AST2500 with 32 MB graphics for robust remote management and video console capabilities.
• Drive interface: SATA III/600-capable interfaces to support contemporary HDD/SSD configurations and high-throughput storage pools.
• Expansion readiness: 2U design with room for expansion cards and options to scale storage and IO to meet enterprise requirements.
• Target use cases: Enterprise servers, virtualization hosts, storage servers, archive and backup appliances, and other data-center-centric applications seeking a cost-effective, scalable barebone solution.

How to install Tyan Transport SX TN70E-B8026

Installing or upgrading a TN70E-B8026 starts with planning your build around the single-supported AMD Socket SP3 processor, memory, and storage requirements. Begin by verifying that you have a compatible AMD processor, DDR4 ECC memory modules, and the desired storage drives. This barebone provides the chassis, board, and essential management capabilities, but you will need to supply the CPU, RAM, and drives. Follow these general steps to assemble and deploy the system:

• Prepare your rack and ensure you have a stable power source, grounding, and appropriate cable management. Verify that the chassis rails align with your rack and that any required mounting hardware is on hand.

• Install the AMD Socket SP3 processor into the motherboard socket, aligning pins and securing the CPU lever per the motherboard’s documentation. Apply a thin, even layer of thermal interface material if your CPU cooler doesn’t come with pre-applied paste. Attach the CPU cooler firmly to ensure optimal thermal contact.

• Install DDR4 memory modules into the 16 DIMM slots, populating in the recommended slots first for optimal memory interleaving and performance. Use ECC DDR4 modules where supported to maximize data integrity in server workloads. Confirm memory recognition in the system BIOS/UEFI during initial boot.

• Mount your choice of storage drives into the 12 x 3.5" bays, connect the SATA power and data cables to the SATA controller, and organize cabling to promote airflow and simplify maintenance. Ensure all drives are detected by the BIOS/UEFI and configure any RAID or storage pools according to your deployment plan.

• Connect the management interface, power, and network cables. Power on the system and configure the ASPEED AST2500 management controller for IPMI, remote KVM, and user authentication. Update firmware and drivers as needed, then install your preferred operating system or virtualization platform using standard server deployment procedures. Validate boot success, run basic hardware checks, and begin workload provisioning.

Frequently asked questions

• What is the TN70E-B8026? A barebone 2U rack-mount server chassis designed to support one AMD Socket SP3 processor, with extensive memory, storage, and management capabilities. It provides a flexible foundation for building custom enterprise servers tailored to virtualization, storage, and compute-heavy workloads.
• How much memory can I install? The system supports up to 1 TB of DDR4 SDRAM across 16 DIMM slots, with DDR4-2666/PC4-21300 speeds. ECC memory is recommended for data integrity in server environments.
• How many drives does it hold? It offers 12 x 3.5" drive bays and 16 SATA interfaces, enabling substantial on-board storage and flexible RAID configurations to support databases, backups, and large-scale data repositories.
• Does it have remote management? Yes. The ASPEED AST2500 provides remote management capabilities, including IPMI and remote console access, which streamlines administration and troubleshooting across multiple servers in data centers or remote locations.
• What kind of workloads is this barebone best suited for? It is well-suited for virtualization hosts, storage appliances, database servers, HPC nodes, and other enterprise workloads that require dense 2U form-factor, scalable RAM, and flexible storage options.
