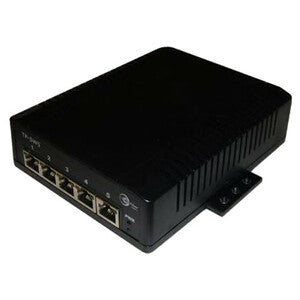

Tycon Power POE 5 Port Switch

The Tycon Power POE 5 Port Switch is a high-performance networking solution designed to enhance the efficiency and functionality of your connectivity infrastructure. With its advanced features and versatility, this switch is perfect for various applications, from office setups to remote solar and battery systems. Its ability to transmit electrical power alongside data over a single cable makes it an ideal choice for powering devices like access points, IP cameras, and IP phones, all while providing robust and reliable network connectivity.

• High POE Power Output: Each port delivers up to 2A of power, allowing you to connect devices that require significant power, ensuring seamless operation without the need for additional power sources.
• Multiple Model Options: Available in four different models, the Tycon Power POE 5 Port Switch offers varying input voltage options (12V-57VDC), enabling you to select the perfect fit for your specific power requirements.
• Flexible Installation: Rail mountable design allows for easy installation within standard racks, providing concrete stability and making it an ideal choice for both indoor and outdoor applications.
• High-Speed Connectivity: Experience lightning-fast data transfer speeds of up to 1000Mbps, which is up to 10 times faster than standard Ethernet, ensuring that your network runs efficiently and without lag.
• Cost-Efficient Networking: Supports the use of twisted pair cables for data transfer, making it a cost-effective solution while maintaining high-speed performance over distances of up to 100 meters.

Technical Details of the Tycon Power POE 5 Port Switch

• Model Options:
  • TP-SW5G-D: IEEE802.3af/at Compliant 48VDC (10/100/1000MB POE)
  • TP-SW5G-24: IEEE802.3af/at Compliant 48VDC (10/100/1000MB POE)
  • TP-SW5G-NC: Universal Voltage (12-57VDC) 10/100/1000MB POE
  • TP-SSW5-NC: Universal Voltage (12-57VDC) 10/100 POE
• Max POE Power per Port: 2A (varying by model)
• Uplink Port Capacity: Up to 90W max
• Data Transfer Speed: 10/100/1000Mbps
• Mounting: Rail mountable
• Dimensions: TP-SSW5-NC is compact at only 4"x5"x1.5"

How to Install the Tycon Power POE 5 Port Switch

1. Gather your equipment: Ensure you have the switch, compatible cables, and mounting hardware ready for installation.
2. Choose a mount location: Select a suitable location in your rack or wall, ensuring adequate ventilation.
3. Mount the switch: Use the provided rail mount hardware to secure the switch in place.
4. Connect power: Depending on the model, connect the appropriate power source via the wire terminal connector or POE uplink port.
5. Connect devices: Use Ethernet cables to connect your devices to the switch ports as needed.
6. Test the connections: Power on the switch and ensure all connected devices are functioning properly.

Frequently Asked Questions

1. What type of devices can I connect to the Tycon Power POE 5 Port Switch?

You can connect any IEEE802.3af/at compliant devices such as IP cameras, access points, and IP phones that require power and data connectivity.

2. Does the switch come with a power adapter?

The switch accepts power via wire terminal connectors or Power Over Ethernet (POE), but it may not include a power adapter depending on the model. Please check the specific model details.

3. Can I use it for outdoor applications?

Yes, the switch is designed for versatility and can be utilized in outdoor applications as long as it is installed in a weatherproof enclosure.

4. What is the maximum distance for data transfer using the switch?

You can achieve high-speed data transfer up to 100 meters using twisted pair cables, which is ideal for most networking setups.

5. Is the switch easy to install?

Absolutely! The Tycon Power POE 5 Port Switch is designed for easy installation, with a rail mountable feature and clear instructions for connecting your power and devices.
