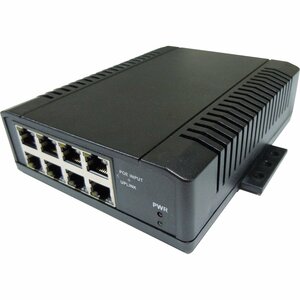

Tycon Power PoE 8 Port Switch

Introducing the Tycon Power PoE 8 Port Switch, a high-performance networking solution designed for seamless connectivity and efficient power management in various applications. This fully automatic Power Over Ethernet (PoE) switch is ideal for businesses looking to enhance their network infrastructure while reducing cabling clutter. With its robust features and user-friendly design, this switch is perfect for setting up reliable connections for Access Points, IP cameras, IP phones, and more.

• High-Speed Networking: The TP-SW8-D offers 8 high-speed 10/100Mb Ethernet ports, enabling smooth data transmission and minimal downtime. Experience enhanced network performance with a switch that effortlessly connects multiple devices.
• Power Over Ethernet Capabilities: With PoE support, this switch delivers both data and electrical power through a single cable, eliminating the need for separate power lines and outlets for a cleaner, more organized setup.
• Flexible Power Input: The switch can operate on a wide DC input power range from 12V to 57V, accommodating various power supply needs. Choose from power supplies including 18W, 24W, 48W, 60W, 120W, and 180W to ensure optimal performance.
• Unmanaged & Easy Setup: The Tycon Power PoE 8 Port Switch is an unmanaged switch, making it exceptionally easy to install and use. Simply plug in your devices, and you're ready to go—no technical expertise or intervention required.
• Extended Reach: With the capability to transmit data and power over distances up to 100 meters (328 feet), this switch is perfect for extending network connections in larger spaces such as conference rooms, laboratories, and office lobbies.

Technical Details of the Product

• Model: TP-SW8-D
• Ports: 8 x 10/100Mb Ethernet ports
• Power Over Ethernet: Supports 802.3af/at
• Input Voltage Range: 12V to 57V
• Power Output: 2A max on PoE Port 8
• Distance Support: Up to 100 meters (328 feet)
• Power Supply Options: 18W, 24W, 48W, 60W, 120W, and 180W
• Mounting Options: Rail mounting suitable for factory, vehicles, and marine applications

How to Install

Installing the Tycon Power PoE 8 Port Switch is straightforward and hassle-free. Follow these simple steps:

• Connect the DC power supply to one of the power input ports on the switch.
• Connect your Ethernet cables from your devices (such as IP cameras or Access Points) to the available Ethernet ports on the switch.
• If additional power redundancy is required, connect a backup power source to the second power input port.
• For devices that require PoE, ensure they are connected to the PoE-enabled ports.
• Power on the switch, and it will automatically detect connected devices and establish the network.

Frequently Asked Questions

• Is this switch compatible with non-PoE devices? Yes, the -NC version of this switch is designed for non-802.3af/at compliant devices, providing universal application options.
• Can I use this switch outdoors? The switch is best suited for indoor applications; however, it can be used in controlled environments like factories or vehicles where it is protected from harsh weather conditions.
• How many devices can I connect to this switch? You can connect up to 8 devices directly to the switch, with the option to cascade additional switches for expanded connectivity.
• What type of cabling is required for optimal performance? The switch supports cost-efficient twisted pair cables, which are ideal for high-speed data transfer and power delivery.
• Is there a warranty for this product? Yes, the Tycon Power PoE 8 Port Switch typically comes with a standard warranty. Please check with your retailer for specific warranty details.
