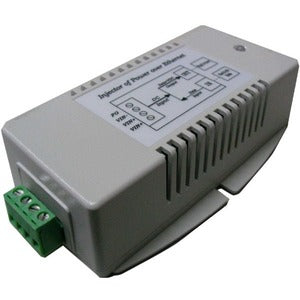

Tycon Power (TP-DCDC-4856GD-VHP) 36-72VDC In, 56VDC 70W 2 Ch 802.3at Out DCDC

The Tycon Power TP-DCDC-4856GD-VHP is a purpose-built, high-power DC-DC converter and PoE injector designed to meet the demanding needs of modern security deployments. Built to power two high-demand IP devices from a single DC source, this dual-channel DCDC module combines reliable voltage conversion with IEEE 802.3at PoE delivery. It is specifically qualified for Axis Q60 Series outdoor PTZ cameras, a line of surveillance devices that require robust power delivery in challenging environments. By providing two independent PoE channels, each capable of delivering up to 35W, this unit simplifies cabling, reduces site power infrastructure, and enables flexible, scalable installations for multi-camera setups. The TP-DCDC-4856GD-VHP consolidates power management and data transmission in one compact package, delivering consistent performance even as camera loads and network demands evolve. With a design that emphasizes efficiency, reliability, and ease of integration, it helps security professionals deploy high-definition PTZ cameras with confidence, ensuring smooth pan-tilt-zoom operation, reliable video streaming, and secure remote monitoring.

• Dual-channel PoE with high per-channel power—Delivers 35W per channel, for a total of up to 70W, enabling two high-demand cameras or devices to operate from a single power source without compromising performance.
• Wide input voltage range for flexible deployments—Accepts 36-72V DC input, offering compatibility with a broad range of power systems and helping to maintain stable 56V DC output to PoE devices under real-world conditions.
• Dedicated two-channel PoE architecture—Two independent PoE channels maximize reliability and simplify camera placement, with each channel capable of powering a separate PD device while minimizing cross-channel interference.
• Axis Q60 Series compatibility—Specifically designed and qualified for Axis Q60 Series outdoor PTZ cameras, ensuring smooth integration, reliable performance, and optimized power delivery for these high-end security cameras.
• Simplified installation and cabling—Consolidates power and data delivery into a single compact unit, reducing the number of power injectors and simplifying on-site wiring for faster, cleaner deployments.

Technical Details of Tycon Power TP-DCDC-4856GD-VHP

• Model—TP-DCDC-4856GD-VHP
• Input Voltage—36-72V DC
• Output Voltage—56V DC
• Total Output Power—70W (35W per PoE channel)
• PoE Standard—IEEE 802.3at (PoE+)
• PoE Channels—2 independent channels
• Channel Pinouts—Channel A uses pins 4,5,7,8; Channel B uses pins 1,2,3
• Targeted Compatibility—Axis Q60 Series outdoor PTZ security cameras

how to install Tycon Power TP-DCDC-4856GD-VHP

Installing the TP-DCDC-4856GD-VHP is straightforward for qualified technicians. Begin by confirming the site power source meets the device’s input specifications: a stable 36-72V DC supply capable of supporting two 35W PoE loads. Plan the installation to minimize voltage drop and ensure adequate ventilation around the unit to promote reliable operation. Mount the DCDC unit securely in a suitable enclosure or rack-mount area following the installer’s guidelines and local electrical codes. Next, connect the input power from your DC source to the TP-DCDC-4856GD-VHP’s input terminals, observing correct polarity and ensuring a solid mechanical connection to prevent vibration or loosening over time. Once the input power is established, wire your two IP camera or PD devices to the two PoE outputs. Channel A should power the first PD and Channel B the second PD; verify that each PD supports IEEE 802.3at to receive up to 35W from the corresponding channel. After wiring, restore power and perform a functional check: confirm that each camera powers on, establish network connectivity, and verify camera streams and PTZ functionality under typical operating conditions. If the installation occurs outdoors or in harsh environments, follow site-specific protection guidelines to shield the unit from moisture, dust, and temperature extremes while maintaining accessible service access for future maintenance. For added reliability, document the wiring configuration and supply a clear labeling scheme on the enclosure to facilitate troubleshooting and future expansions.

Frequently asked questions

• Q: What is the input voltage range for the TP-DCDC-4856GD-VHP? A: The device accepts 36-72V DC input.
• Q: How much power can each PoE channel deliver? A: Each channel can deliver up to 35W, for a total of 70W across both channels when fully utilized.
• Q: How many PoE channels does the unit provide, and how are they used? A: It provides two independent PoE channels, enabling two PD devices to be powered simultaneously from a single unit.
• Q: Is this DCDC suitable for Axis cameras? A: Yes, it is designed and qualified for Axis Q60 Series outdoor PTZ cameras, ensuring compatibility and optimized performance.
• Q: Which PoE standard does it support? A: It supports IEEE 802.3at (PoE+), enabling higher power delivery to compatible devices.
• Q: What are the pinouts for the PoE channels? A: Channel A uses pins 4,5,7,8 and Channel B uses pins 1,2,3.
