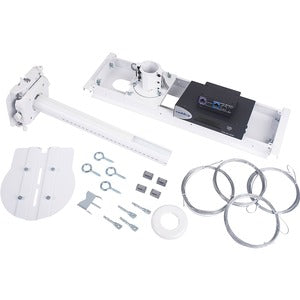

Vaddio QuickCat Conference Camera Mount - For Vaddio, Sony, and Parasonic

The Vaddio QuickCat Conference Camera Mount delivers a streamlined, professional solution for mounting and extending your PTZ cameras in conference rooms, lecture halls, and collaboration spaces. This comprehensive QuickCAT package combines a universal ceiling mount with the high-performance Vaddio OneLINK HDMI extension system, enabling power, video, and control to be sent up to 100 meters (328 feet) over a single Cat-5e/6 cable. Designed to work with Vaddio, Sony, and Panasonic cameras, QuickCAT is the perfect choice for installations that demand clean lines, reliable performance, and flexible positioning. With invertible PTZ camera support, you can mount cameras in ceiling configurations that suit your room layout while maintaining optimal field of view and accessibility for maintenance and adjustments.

• Universal ceiling camera mount for invertible PTZ cameras: QuickCat is engineered to fit a wide range of camera bodies and brands, including Vaddio, Sony, and Panasonic. Its universal design accommodates cameras that can be mounted upside-down or right-side-up, giving you flexibility in ceiling installations and ensuring you get the best angles without compromising performance.
• OneLINK HDMI extension system included: The package features a Vaddio OneLINK HDMI extension system, a trusted solution for sending power, video, and control signals over a single network cable. This integration reduces the number of separate cables and adapters required, simplifying installation and future maintenance.
• Long-range, single-cable simplicity: Extend your equipment up to 100 meters (328 feet) using Cat-5e/6 cabling. This long reach minimizes on-room clutter and enables flexible room designs—no need to place control cabinets or equipment closets close to the camera.
• Clean, professional look with secure ceiling mounting: QuickCat’s ceiling-mount design provides a discreet footprint ideal for corporate boardrooms and educational spaces. The robust mounting hardware and precise alignment features ensure your camera stays steady, even in environments with vibration or movement.
• Simple installation and easy camera positioning: The package is designed for straightforward setup, with intuitive cable routing and flexible mounting options. After installation, you can quickly fine-tune pan, tilt, and zoom to capture the perfect framing for every meeting or presentation.

Technical Details of Vaddio QuickCat Conference Camera Mount

• Product type: Ceiling camera mount with integrated OneLINK HDMI extension system
• Compatibility: Works with Vaddio, Sony, and Panasonic cameras; supports invertible PTZ configurations
• Extension medium: Cat-5e/6 cable for power, video, and control signals via the OneLINK system
• Maximum extension distance: Up to 100 meters (328 feet) between camera and control/processing equipment
• Video and control delivery: HDMI video path combined with camera control data over a single cable, simplifying installation
• Mount type: Ceiling-mountable universal bracket compatible with a broad range of PTZ camera models
• Build and durability: Rugged construction designed for continuous use in professional environments
• Orientation support: Invertible PTZ support allows flexible mounting options and room layout compatibility

How to install Vaddio QuickCat Conference Camera Mount

To achieve a seamless, professional setup, follow these steps. The QuickCat system is intended for installations where a ceiling mount and a long-reach HDMI extension are beneficial for room aesthetics and cable management. Plan the mounting location to maximize line-of-sight with participants and ensure the ceiling can support the mounted weight. Consider future camera repositioning needs and accessibility for maintenance when choosing the install point. Once the location is selected, prepare your Cat-5e/6 cable path and mounting hardware, then proceed with the following steps:

• Prepare the ceiling mount area: Verify grid or concrete ceiling strength, locate joists if needed, and lay out the mounting plate so that the camera will have the desired angle and coverage after installation. Use a stud finder and level to ensure accuracy.
• Mount the QuickCat ceiling bracket: Secure the universal ceiling mount to the ceiling with the included hardware. Ensure the bracket is level and firmly anchored to support the weight of the camera and any dynamic movements during operation.
• Route the OneLINK cable: Run Cat-5e/6 cable from the camera location to the OneLINK receiver or interface location. Maintain clean cable routing, using cable trays or conduits as needed to protect the run and reduce trip hazards. Keep the run within the recommended maximum distance (up to 100 meters).
• Connect camera to OneLINK: Attach the camera’s HDMI and control interfaces to the OneLINK system as specified in the product documentation. Ensure secure, clean connections to prevent signal loss or interference.
• Secure and align the camera: Mount the camera onto the QuickCat mount, tighten all fasteners, and adjust tilt and pan to achieve optimal framing. Verify the inverted or upright orientation depending on the installation, then test the camera’s pan/tilt/zoom range to ensure smooth operation.
• Power, test, and finalize: Power up the OneLINK system and the camera, then test HDMI video, camera control, and any integrated features such as presets or auto-framing if supported. Verify cable integrity and secure all cables with ties or clips to prevent movement or wear over time.

Frequently asked questions

• What cameras are compatible with the Vaddio QuickCat Conference Camera Mount? The QuickCat package is designed to work with Vaddio, Sony, and Panasonic cameras. It supports invertible PTZ configurations, giving you flexibility in ceiling installations and ensuring the right orientation for every room.
• How far can I extend power, video, and control signals? The OneLINK HDMI extension system supports up to 100 meters (328 feet) over a single Cat-5e/6 cable, providing a clean, long-reach solution for larger conference spaces or classrooms.
• Do I need a separate power supply for the camera and the extension system? The OneLINK system carries power, video, and control over the Cat-5e/6 cable, reducing the need for multiple power bricks and simplifying installation. Ensure that all components are connected according to the manufacturer’s guidelines for proper operation.
• Is the QuickCat suitable for ceiling installations where the camera is inverted? Yes. The design supports invertible PTZ cameras, allowing you to mount the camera inverted if your room layout or sensor orientation requires it for optimal coverage.
• What are the installation advantages of the QuickCat system? The combination of a universal ceiling mount and a single-cable HDMI extension reduces clutter, simplifies routing, and enables flexible room designs. It streamlines maintenance and future upgrades, making it ideal for corporate, educational, and broadcast-like conference spaces.
• Can I use QuickCat with non-Vaddio cameras? The system is optimized for Vaddio, Sony, and Panasonic PTZ cameras and is designed to work best with those formats. Compatibility with other brands may vary; refer to the installation guide for specifics and ensure support for invertible PTZ configurations.
