Vaddio Single 1/2 Rack Mounting Kit - Black

VaddioSKU: 4716533

Price:
Sale price$97.26

Description

Vaddio Single 1/2 Rack Mounting Kit - Black

Elevate your professional AV installations with the Vaddio Single 1/2 Rack Mounting Kit in a sleek black finish. This compact, rigid mounting solution is designed to transform select Vaddio devices into space‑saving, rack‑ready components for conference rooms, classrooms, control rooms, and production environments. Built for durability and ease of use, the kit delivers a clean, uninterrupted front profile while keeping cables organized and accessible. The versatile design accommodates a range of Vaddio systems, enabling you to consolidate equipment in a standard 19" rack without sacrificing performance or accessibility. With included ears (one long and one short) and a robust steel construction, this mounting kit provides secure, professional integration that scales with your AV setup.

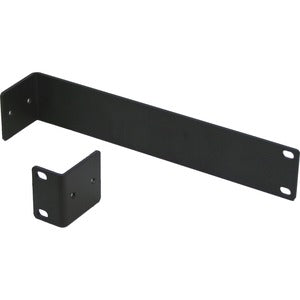

  • Includes one long ear and one short ear for flexible mounting options, allowing you to orient equipment for optimal accessibility and cable routing.
  • Half-rack width design provides efficient space utilization in standard 19" racks, ideal for compact studios, classrooms, and conference rooms.
  • Durable black finish and precision‑engineered steel construction deliver lasting rigidity and a professional, low‑visibility aesthetic in active environments.
  • Designed to support a variety of Vaddio devices, including EasyUSB Mixer/Amp, WEBBi, PRO MIC I/O, TRIO I/O, and Quick-Connect USB interfaces, ensuring broad compatibility in multi‑device setups.
  • Intended for reliable, rack‑mount installations that simplify cabling management while preserving access to front‑panel controls and ports.

Technical Details of Vaddio Single 1/2 Rack Mounting Kit - Black

  • Rack width: Half‑rack mounting space (approximately 9.5 inches) compatible with standard 19" rack systems.
  • Finish: Black protective coating for discreet appearance and resistance to wear in busy AV environments.
  • Construction: Sturdy steel chassis with precisely manufactured ears for secure attachment.
  • Included components: One long ear and one short ear designed to accommodate common mounting configurations.
  • Compatibility: Suited for A/V equipment in Vaddio ecosystems, including EasyUSB Mixer/Amp, WEBBi, PRO MIC I/O, TRIO I/O, and Quick-Connect USB devices.
  • Mounting hardware: Standard hardware compatible with 19" rack rails; ensure appropriate screws and spacers are used for your installation.
  • Depth and load considerations: Built to offer reliable support for compatible devices within the half‑rack footprint; verify weight limits per your device specifications.

How to install Vaddio Single 1/2 Rack Mounting Kit

  • Step 1: Plan your rack layout by confirming the target device(s) fit within a half‑rack width. Identify the best position for front‑panel access and cable management, and gather any necessary mounting hardware compatible with your rack rails.
  • Step 2: Attach the mounting ears to the device or the rack rails as appropriate for your chosen orientation. Use the included long ear and short ear to match the device depth and ensure aligned screw holes for a secure fit.
  • Step 3: Secure the ears with the appropriate mounting screws, taking care to level the assembly so the device sits square within the rack. Double‑check that front panel ports remain accessible after installation.
  • Step 4: Slide the assembled unit into the 19" rack rails, ensuring the ears engage the rails properly. Tighten all fasteners securely to prevent movement during use, then verify clearance for any adjacent components.
  • Step 5: Connect power, signal, and control cables as needed. Route cables to minimize bending and interference, label cables for easy identification, and perform a functional test to confirm all ports and features operate as expected.

Frequently asked questions

  • Q: What is included in the Vaddio Single 1/2 Rack Mounting Kit?
    A: The kit includes one long ear and one short ear designed for half‑rack mounting in standard 19" racks, plus the necessary hardware compatible with common AV rack installations.
  • Q: Which devices are compatible with this mounting kit?
    A: The mounting kit is designed for Vaddio devices typically used with EasyUSB Mixer/Amp, WEBBi, PRO MIC I/O, TRIO I/O, and Quick-Connect USB interfaces, making it suitable for a range of AV setups within these families.
  • Q: What rack size does this kit fit?
    A: It supports half‑rack width installations, effectively providing about 9.5 inches of mounting space in a standard 19" rack. This is ideal for compact configurations where space is at a premium.
  • Q: How durable is the mounting kit?
    A: The kit is built from robust steel with a black protective finish that resists wear in busy environments, providing long‑lasting structural integrity and a professional appearance.
  • Q: Is special tooling required for installation?
    A: Basic mounting hardware and standard tools commonly used for rack installations are sufficient. Always follow proper rack mounting practices and ensure all connections are secure and compliant with your facility’s safety guidelines.
  • Q: Can I mount multiple devices in a single rack using this kit?
    A: Yes. Because the kit is designed for half‑rack width mounting, you can pair multiple half‑rack devices in a single rack column, provided you maintain proper clearance and cable management between units.
