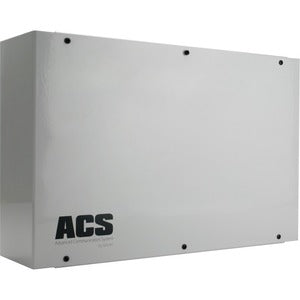

Valcom Advanced Communication System 24 Zones (45 Ohm)

Introducing the Valcom V-ACS45 Advanced Communication System, a scalable paging and intercom solution engineered for small to medium facilities that demand clear, reliable announcements with minimal footprint. The V-ACS45 is built to grow with your needs, offering flexible zone configurations and a compact, wall-mount design that keeps control and communication within easy reach. Whether you’re refreshing an aging intercom network or deploying a new facility-wide paging system, this advanced platform provides crisp sound quality, simple operation, and robust performance across multiple zones. Its 45 Ohm compatibility ensures smooth integration with a wide range of standard speaker networks, letting you reuse existing hardware or add new speakers as your coverage expands.

• Flexible zone configurations: Available in 24, 48, and 72 zone configurations to precisely match the size and layout of your facility. This scalable architecture lets you start small and expand as your paging needs grow, without replacing the core system.
• Speaker compatibility and easy integration: Use your existing speakers or add new ones, with 45 Ohm impedance to align with traditional paging networks. The V-ACS45 supports straightforward integration into established audio paths, delivering reliable sound across all zones while preserving budget and infrastructure already in place.
• Dual phone ports for flexible communications: Two dedicated telephone ports enable convenient external paging, remote announcements, or administrative access, giving operators quick control over announcements without tying up the main system.
• Custom WAV file storage for personalized messages: Up to 1 hour of custom WAV file storage lets you pre-record and schedule messages, time announcements, or emergency alerts to play across zones. This capability helps standardize communications and ensures consistent audio branding across locations.
• Compact wall-mount design with scalable talkback: A space-saving enclosure that mounts on any standard wall surface, paired with a scalable talkback station arrangement. This setup supports rapid two-way communication across multiple zones, making it easy to coordinate staff, classrooms, or departments in real time.

Technical Details of Valcom Advanced Communication System 24 Zones (45 Ohm)

• Zones: 24-zone base configuration, with expansion options to 48 and 72 zones to accommodate growing paging needs.
• Impedance: 45 ohms nominal, compatible with a large range of standard paging speakers and networks.
• Talkback capacity: Supports multiple talkback stations within the selected configuration, enabling quick, two-way communication across zones.
• Storage: Up to 1 hour of custom WAV file storage for on-demand or scheduled announcements and messages.
• Connections: Dual phone ports for external paging and remote access control, facilitating flexible deployment scenarios.
• Form factor: Compact wall-mount enclosure designed for discreet installation in control rooms, hallways, or utility spaces while maintaining easy access for operators.

How to Install Valcom Advanced Communication System

Installing the Valcom V-ACS45 is designed to be straightforward, with a focus on reliable integration into existing audio infrastructure while allowing room for future expansion. The following guidance outlines a practical setup path to help you achieve a robust paging and intercom system.

• Plan your layout: Assess your facility’s size, traffic patterns, and speaker locations. Determine the number of zones needed (24, 48, or 72) and map each zone to physical areas (classrooms, offices, corridors, or common spaces). Prioritize critical areas for priority announcements and emergency alerts.
• Prepare power and network connections: Ensure the installation site has appropriate power outlets and space to mount the control unit. Confirm that any required network connections or telephone line interfaces are available for the dual phone ports and remote management needs.
• Mount the control unit: Install the compact wall-mount enclosure in a centralized location with easy access for staff. Secure the unit to ensure stability and minimize vibration that could affect audio performance.
• Connect speakers and audio paths: Wire the selected speakers to the V-ACS45 according to the impedance requirements (45 Ohm). Verify speaker wiring integrity and ensure that existing speaker lines are properly terminated to prevent noise or signal loss across zones.
• Configure zones and talkback: Use the system interface to assign each channel to the intended zone(s). Set up talkback stations in the appropriate locations and establish any required priority levels for critical zones to guarantee timely notifications.
• Load WAV announcements: Upload or record custom WAV files (up to 1 hour total storage) for scheduled or event-based messages. Organize files by zone or event type to streamline playback during routine paging or emergencies.
• Test and validate: Perform a full-system test across all zones to confirm clarity, coverage, and timing. Test dual phone ports by placing external calls and verifying audio quality. Validate that emergency messages override routine announcements as configured.
• Document settings: Record configuration details, including zone mappings, message files, and any priority rules. Keep this documentation accessible to authorized personnel for ongoing maintenance and future upgrades.
• Plan for expansion: If you anticipate growth, leave space in the wiring plan and keep spare ports available. The V-ACS45’s modular approach makes it easier to scale to 48 or 72 zones as your building needs evolve.

Frequently Asked Questions

• What does the Valcom V-ACS45 do? The V-ACS45 is an Advanced Communication System designed for small to medium paging networks. It provides multi-zone paging, intercom-style talkback, dual phone ports for external access, and the ability to store custom WAV announcements for scheduling and emergency messaging.
• How many zones can it support? The system is available in 24-, 48-, and 72-zone configurations, allowing you to choose the footprint that matches your facility size and needs. It supports expansion within the chosen configuration to cover more areas as required.
• What is the impedance and why does it matter? The V-ACS45 uses a 45-ohm speaker impedance. This impedance is common in commercial paging networks and helps ensure compatibility with a wide range of existing speakers and wiring. Using the correct impedance maintains audio quality and minimizes loading on the network.
• How long can I store custom audio messages? You can store up to 1 hour of custom WAV files for announcements, time-based messages, or emergency alerts. This storage enables flexible playback across zones without needing external media devices.
• Can I use my existing speakers? Yes. The system is designed to work with existing speakers that match the system’s impedance, allowing you to reuse current hardware or upgrade selectively for enhanced coverage.
• How do I install the system? Installation involves planning zone mappings, mounting the control unit, wiring speakers, configuring talkback stations, loading WAV files, and testing across zones. It’s advisable to work with a qualified technician to ensure proper power, grounding, and safety compliance during setup.
