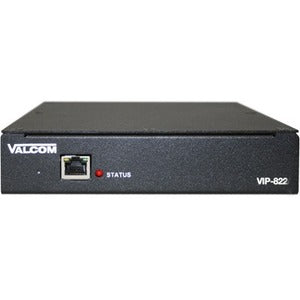

Valcom Dual Enhanced Network Trunk Port VIP-822A

The Valcom VIP-822A Dual Enhanced Network Trunk Port is engineered to bridge traditional loop-start terminal devices with modern IP-based networks. This versatile solution enables reliable connectivity to a managed LAN/WAN, delivering seamless integration of telephony with data pathways. Perfect for applications that require robust trunking, caller ID decoding, and resilient failover, the VIP-822A combines familiar hardware with contemporary networking features to support secure, scalable communications in small to mid-size deployments.

• Flexible network and telephony interfaces: One RJ-45 network connection plus two RJ-11 FXO (foreign exchange office) ports for standard telephony access, plus two RJ-11 ports dedicated to failover telephone connections. This configuration supports reliable trunking while preserving traditional phone paths for continuity even if one path encounters issues.
• Caller ID decoding built in: The VIP-822A decodes caller ID signals, enabling your PBX or IP-based system to identify incoming calls accurately and route them appropriately. This feature enhances call management, automation, and integration with contact databases or security workflows.
• Status visibility at a glance: Front panel activity LED indicators and dedicated network activity LEDs provide immediate feedback on device health and network status. Quick diagnostics help technicians troubleshoot connectivity or signaling problems without interrupting service.
• Dedicated signaling interface: A 2.5mm jack offers an additional external connection option for signaling, management, or auxiliary peripherals, enabling flexible configurations to suit unique installations or custom workflows.
• Designed for reliable IP-based deployments: The VIP-822A is purpose-built to connect loop-start equipment to managed IP networks, supporting modern network infrastructure while preserving the integrity of traditional telephony signals. This makes it an ideal choice for organizations migrating to IP-based communications without abandoning legacy devices.

Technical Details of Valcom Dual Enhanced Network Trunk Port

Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install Valcom Dual Enhanced Network Trunk Port

Installing the Valcom VIP-822A is straightforward and designed to minimize downtime while maximizing compatibility with existing equipment. Follow these general guidelines to deploy the Dual Enhanced Network Trunk Port in a typical office or small enterprise environment.

1) Plan your topology — Determine the location of the VIP-822A in relation to your network switch, router, and telephony lines. Identify two loop-start channels you plan to utilize as FXO inputs and the corresponding failover paths. Ensure you have access to power or the recommended power source per the product’s manual.

2) Connect network access — Use an RJ-45 Ethernet cable to connect the VIP-822A’s network port to your managed LAN/WAN. If you employ VLANs or QoS policies, configure them to prioritize signaling traffic as needed to maintain call quality and responsiveness.

3) Attach telephony lines — Connect two RJ-11 FXO lines to the FXO ports for standard telephony operation. In parallel, connect two RJ-11 cables to the failover telephone ports to provide redundancy. Ensure the line types and country-specific signaling match your local telephony standards and the requirements of your IP-based trunking environment.

4) Configure signaling and caller ID — If your deployment uses caller ID, configure the VIP-822A to decode signals and route information to your PBX or IP-PBX. Verify caller ID presentation on your test calls and adjust any required settings for compatibility with your equipment. Refer to your PBX documentation for appropriate rules and routing based on decoded caller ID data.

5) Connect peripherals and monitors — If you plan to use the 2.5mm jack for an accessory device or signaling interface, attach the peripheral according to the accessory’s installation guide. Observe front panel LEDs during power-up to confirm proper initialization and network activity. For ongoing monitoring, keep an eye on both activity LEDs to detect anomalies promptly.

6) Test and validate — Perform end-to-end tests by placing and receiving calls through the FXO ports, using the failover paths to ensure uninterrupted operation under simulated failure conditions. Confirm that the decoded Caller ID matches expectations and that network activity reflects expected traffic patterns. Adjust firewall and router settings if necessary to allow the necessary signaling ports and IP ranges.

7) Document and secure — Record your configuration details, including port mappings, trunk assignments, and failover behavior. Secure the device in a suitable enclosure if placed in a shared environment, and implement basic hardening practices for network devices to minimize exposure to threats.

The installation process is designed to minimize disruption while delivering reliable integration between legacy trunk devices and IP-based networks. If you encounter device-specific options or advanced features not covered in these general steps, consult the official installation guide or the vendor’s technical support resources for guidance tailored to your hardware and software version.

Frequently asked questions

Q: What is the primary purpose of the Valcom VIP-822A?
A: The VIP-822A is a Dual Enhanced Network Trunk Port that connects loop-start terminal devices to a managed IP-based LAN/WAN, offering FXO telephony, failover paths, and caller ID decode capabilities for reliable, hybrid telephony and data deployments.

Q: How many FXO and failover ports does the device have?
A: The device provides 2 RJ-11 FXO connections and 2 RJ-11 failover telephone connections, enabling flexible routing and redundancy for telephony paths.

Q: Does it support caller ID decoding?
A: Yes, the VIP-822A includes caller ID decode functionality to help you identify and route incoming calls within your IP-based system.

Q: What indicators help with troubleshooting?
A: Front panel activity LEDs and network activity LEDs provide real-time status information, allowing quick diagnostics and monitoring of both telephony and network activity.

Q: Is there a dedicated port for peripherals?
A: The device includes a 2.5mm jack for optional accessories or signaling, offering flexibility for additional control or management interfaces depending on your setup.

Q: How should I approach installation?
A: Plan your topology, connect the network and telephony interfaces as described, configure caller ID and signaling with your PBX, test comprehensively, and document your configuration for future maintenance. When in doubt, consult the official installation guide for your exact hardware revision.

Q: Where can I find detailed specifications?
A: Detailed specifications can be found in the product's official documentation or on the supplier’s specifications page (e.g., the SYNEX EC portal referenced for UPC/SKU-based data). If information is unavailable here, check with the retailer or Valcom support for the latest spec sheet.
