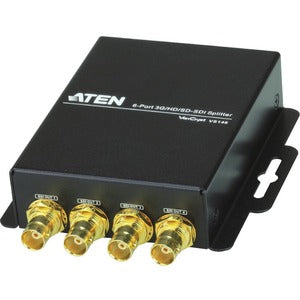

VanCryst 6-Port 3G/HD/SD-SDI Splitter-TAA Compliant

VanCrystSKU: 4046711

Price:
Sale price$386.99

Description

The VanCryst VS146 6-Port 3G/HD/SD-SDI Splitter is a robust distribution amplifier engineered for broadcast, production, and professional AV environments. With a single SDI input and six SDI outputs, it enables real-time viewing and monitoring across multiple displays, ensuring you never miss a critical frame. Designed to handle 3G-SDI, HD-SDI, and SD-SDI formats, the VS146 preserves video integrity and embedded audio while delivering dependable performance even in demanding setups. Automatic cable equalization helps compensate for signal loss over long cable runs, enabling flexible rack layouts and room-to-room signal distribution without compromising picture quality. The device’s re-clocking capability refreshes timing on SDI streams, reducing jitter and skew as the signal traverses multiple outputs. This makes it an ideal choice for studio control rooms, OB vans, post-production suites, sports facilities, and live event environments where multiple displays must stay perfectly in sync. Additionally, the VS146 is TAA compliant, supporting government and enterprise procurement strategies, while its compact, rack-ready form factor facilitates easy integration into existing infrastructure.

  • Six-output SDI distribution: 1 input is retransmitted to 6 outputs for simultaneous monitoring across multiple displays or recording devices.
  • Broad format support: Handles 3G-SDI, HD-SDI, and SD-SDI signals, preserving both video and embedded audio across all outputs.
  • Long-distance capability: Automatic cable equalization enables reliable SDI transmission over extended cable runs, up to 300 meters, with minimal degradation.
  • Signal integrity through re-clocking: Re-clocks SDI signals to maintain timing and reduce jitter when routing to multiple destinations.
  • Procurement-ready and compact: TAA compliant with a space-saving, rack-friendly design suitable for professional studios and control rooms.

Technical Details of VS146

  • Input: 1 x SDI (BNC)
  • Outputs: 6 x SDI (BNC)
  • Standards: 3G-SDI, HD-SDI, and SD-SDI compatible
  • Data rate per output: Up to 3 Gbit/s (3G-SDI)
  • Equalization: Automatic cable equalization for long-distance transmission
  • Re-clocking: Yes, to preserve timing across all outputs
  • Distance capability: Supports SDI distribution over distances up to 300 meters
  • Power: External power supply required (specifications not listed)
  • Compliance: TAA compliant for government and enterprise procurement

How to install VS146

  • Plan placement in your rack or enclosure so the VS146 is easily accessible for cabling and maintenance, with adequate airflow around the unit.
  • Connect the SDI source to the 1 x SDI input (BNC) using high-quality SDI cables suitable for your signal type and length.
  • Route six SDI outputs from the VS146 to your displays, recorders, or monitoring devices. Ensure each destination supports the same SDI format as the input.
  • Power the VS146 using the appropriate external power supply. Verify all connections are snug and seated properly to prevent signal interruption.
  • Power on the system and check each output for a clean, synchronized signal. If you notice discrepancies, confirm cable integrity and ensure there are no mismatched formats on the input.

Frequently Asked Questions

  • Q: What does the VS146 do? A: It acts as a 6-port SDI splitter, taking a single SDI input and distributing it to six outputs with re-clocking and automatic equalization to maintain signal integrity across each path.
  • Q: Which SDI formats are supported? A: The VS146 supports 3G-SDI, HD-SDI, and SD-SDI formats, allowing wide compatibility with professional video equipment.
  • Q: How far can the signal travel? A: Automatic cable equalization enables reliable SDI transmission over long runs, up to 300 meters on SDI cabling.
  • Q: Is the unit compliant with procurement standards? A: Yes, the VS146 is TAA compliant, making it suitable for government and enterprise purchasing.
  • Q: Does it reclock the SDI signal? A: Yes, the VS146 features a re-clocking engine to preserve timing and improve signal integrity across all six outputs.
  • Q: Is power required? A: The unit uses an external power supply; precise power specifications are not published in this description.
