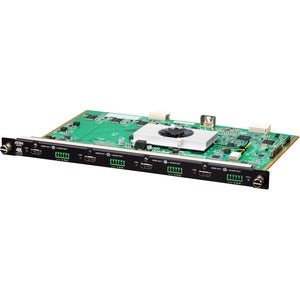

VanCryst VM8824 4-Port True 4K HDMI Output Board with Scaler

VM8824 is a compact, high-performance HDMI output board designed for professional AV installations. It delivers true 4K HDMI output across four independent outputs and works seamlessly with ATEN Modular Matrix Switches to route four analog/digital audio/video sources to four HDMI displays. With built-in scaling, robust video processing, and streamlined integration, the VM8824 is ideal for multi-display walls, conference rooms, digital signage, and advanced home theater systems where image quality and reliability matter.

• True 4K output on four ports: Each of the four HDMI outputs can carry high-definition 4K video, enabling synchronized playback across multiple displays while preserving color accuracy and detail.
• Integrated scaler for per-output optimization: The VM8824 includes a powerful scaler that adapts incoming signals to the native resolution of each connected display, ensuring sharp images whether you’re using a mix of 4K and 1080p panels.
• Seamless ATEN Matrix integration: Designed to work alongside ATEN Modular Matrix Switches, this board simplifies routing of up to four analog/digital AV sources to four HDMI displays, delivering flexible, scalable AV distribution with minimal latency.
• Comprehensive HDMI signal handling: Enjoy reliable HDMI transmission with preserved audio, HDCP compliance for protected content, and consistent color performance across all outputs.
• Professional, durable design: The VM8824 is built for rack-ready installations and demanding environments, offering plug-and-play installation and quiet, dependable operation in classrooms, corporate spaces, hospitality venues, and home cinemas.

Technical Details of VanCryst VM8824

• HDMI Outputs: 4 independent HDMI output ports for simultaneous display connections
• Video Processing: Built-in scaler to convert and optimize video to match each display’s native resolution
• Resolution Support: True 4K output (3840x2160) on each port for compatible displays and sources
• Audio: Embedded HDMI audio passthrough to preserve multi-channel sound across all outputs
• Compatibility: Intended to integrate with ATEN Modular Matrix Switches for flexible routing of up to four AV sources
• HDCP/Content Protection: Supports standard HDMI HDCP protection to ensure secure playback of protected content
• Power and Setup: Requires an appropriate external power supply as specified by the board’s documentation; designed for easy plug-and-play installation
• Dimensions and Form Factor: Compact board suitable for use in chassis or rack-mount setups, optimized for professional AV installations

how to install VanCryst VM8824

• Power down all connected equipment and unplug power supplies before installation.
• Insert the VM8824 into a compatible ATEN Modular Matrix chassis or enclosure according to the manufacturer’s guidelines.
• Connect four HDMI cables from the VM8824’s HDMI outputs to your four displays, ensuring each display is configured to the correct input.
• Connect the four AV sources to the matrix inputs as you would for a standard routing setup, then use the ATEN control interface to map each source to a specific HDMI output.
• Power up the system and verify that each display receives the correct signal, with 4K content preserved and audio properly routed to each screen.

Frequently asked questions

• What is the VM8824? The VM8824 is a 4-port True 4K HDMI output board with a built-in scaler, designed to work with ATEN Modular Matrix Switches to route four AV sources to four HDMI displays with optimized image quality.
• Does it support 4K at 60 Hz? The VM8824 outputs true 4K content to each connected display where the source and display hardware support the required bandwidth; actual refresh rates depend on the source and display capabilities.
• Is HDCP supported? Yes, the VM8824 provides HDCP-compliant HDMI transmission to protect content as required by modern displays and sources.
• Which systems is it compatible with? It is designed to work with ATEN Modular Matrix Switches and is intended for AV installations that require flexible routing to multiple HDMI displays; compatibility with specific models and firmware should be verified against ATEN integration guidelines.
• What about EDID and display compatibility? The VM8824 includes EDID management features to help ensure displays receive appropriate resolution and timing information, minimizing compatibility issues across mixed-display environments.
