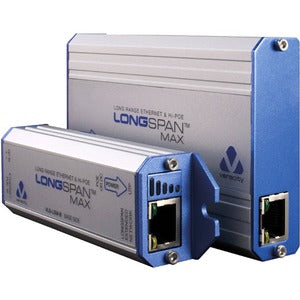

Veracity LONGSPAN Max (Camera) – Hi-Power 90W Long-Range Ethernet for IP Cameras up to 820m

The Veracity LONGSPAN Max (Camera) delivers the power and bandwidth your IP camera needs, even at exceptional distances. LONGSPAN delivers unprecedented power and bandwidth over extreme lengths of regular Cat5e or Cat6 network cable, enabling a dependable connection to IP cameras and other remote network devices. LONGSPAN is a point-to-point solution that simplifies the challenge of extending surveillance reach without sacrificing performance. Engineered for mission-critical security deployments, LONGSPAN Max combines high power with robust data transmission to keep cameras online, streams smooth, and management responsive—across miles of copper infrastructure.

• Hi-Power, 90W long-range Ethernet designed to power IP cameras and remote network devices over extended copper cabling while preserving data integrity and video quality.
• Up to 820 meters of Cat5e or Cat6 cable distance in a single link, enabling sightlines to remote cameras without the need for intermediate switches or repeaters.
• Uncompromised bandwidth to support multiple streams, high-resolution video, and simultaneous device management over long runs, ensuring reliable surveillance performance.
• Point-to-point architecture for a dedicated, low-latency connection that minimizes interference and maximizes uptime in demanding environments.
• Easy to deploy with standard Ethernet cabling, reducing installation time and cost while enabling flexible, scalable security layouts for campuses, campuses, and large facilities.

Technical Details of Veracity LONGSPAN Max (Camera)

• Power capability: Hi-Power up to 90W for remote devices and cameras over Ethernet
• Maximum link distance: Up to 820 meters on Cat5e or Cat6 cabling
• Cable compatibility: Standard Cat5e or Cat6 Ethernet cabling
• Topology: Point-to-point Ethernet extension for direct, dedicated links
• Primary use: Supports IP cameras and other remote network devices requiring power and data over a single run
• Performance focus: Delivers power and bandwidth suitable for stable video streams and remote device management

how to install Veracity LONGSPAN Max (Camera)

• Plan a direct path between the two LONGSPAN units, ensuring a clear line of sight and minimal interference where possible.
• Connect the transmitter side to your source network device and attach a Cat5e or Cat6 cable up to 820 meters toward the remote unit.
• Connect the receiver side to the remote IP camera or network device, using the same standard Ethernet cabling for power and data.
• Apply power to both units and verify the link indicators – a solid connection confirms a successful handshake between the two LONGSPAN devices.
• Access the management interface as needed to perform basic configuration, test video streams, and confirm that power delivery and bandwidth meet your camera’s requirements.

Frequently asked questions

• Q: What is Veracity LONGSPAN Max (Camera)?
  A: It is a Hi-Power long-range Ethernet solution that powers IP cameras and remote network devices over Cat5e or Cat6 cable, delivering high power and bandwidth over extended distances in a point-to-point configuration.
• Q: How far can LONGSPAN Max extend Ethernet and power?
  A: It can extend up to 820 meters on a single Cat5e or Cat6 run, enabling long-distance surveillance without intermediate equipment.
• Q: How much power does it deliver to cameras?
  A: The system provides up to 90W of power to connected devices, supporting power-hungry cameras and remote devices along the link.
• Q: What cable types are supported?
  A: Standard Cat5e or Cat6 Ethernet cables are supported for both data and power transmission across the link.
• Q: Is LONGSPAN Max a point-to-point solution?
  A: Yes, it is designed as a dedicated point-to-point link to maximize reliability, reduce interference, and simplify network design for long-distance deployments.
