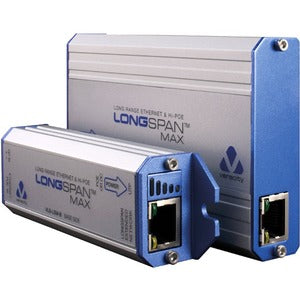

Veracity LONGSPAN Max Quad. 4 channel, Hi-Power, 90W long-range Ethernet, up to 820m

The Veracity LONGSPAN Max Quad redefines how far and how reliably your IP cameras and remote network devices can reach. This four-channel, Hi-Power long-range Ethernet solution delivers substantial power and robust bandwidth over standard Cat5e or Cat6 cabling, enabling dependable, high-quality video and data transmission at distances that traditional Ethernet can’t easily tolerate. Designed for point-to-point deployments, LONGSPAN Max Quad is the ideal choice when you need to extend a secure, stable link to four cameras or devices without digging for fiber or deploying more complex alternatives. It combines strong power delivery with dependable data throughput, so your surveillance system remains synchronized across long spans with minimal maintenance.

• Powerful 4-channel design with a total Hi-Power budget of up to 90W, enabling simultaneous connection to multiple IP cameras or remote devices while delivering adequate bandwidth for HD video streams and network data over extended distances. This integrated approach reduces the need for separate power infrastructure and simplifies installation, delivering reliable, long-range performance across each channel.
• Long-range performance up to 820 meters over standard Cat5e or Cat6 network cables. By leveraging existing copper cabling, LONGSPAN Max Quad eliminates costly fiber deployments for many remote locations, giving you a dependable, scalable link for security cameras, access control units, and other networked devices along the same line.
• Point-to-point solution optimized for dedicated links between two sites or devices. The architecture is designed to minimize latency and interference, ensuring consistent video quality and data integrity across the entire distance. It’s ideal for remote surveillance nodes, remote offices, or distributed sensor networks where a stable, private link is essential.
• Rugged, compact design built for reliability in demanding environments. The Max Quad is engineered to support secure, continuous operation, with straightforward mounting options and a footprint that fits neatly into standard equipment racks or field enclosures. Its robust build helps maintain performance under varying temperatures and conditions common in outdoor or industrial installations.
• Simple installation with broad compatibility and straightforward management. This solution is designed to integrate smoothly with existing network infrastructure, requiring minimal configuration so you can deploy quickly and begin capturing reliable, long-range data and video where it matters most.

Technical Details of Veracity LONGSPAN Max Quad

• Configuration: 4-channel, Hi-Power long-range Ethernet solution for remote devices and IP cameras.
• Power budget: Up to 90W total across four channels, enabling multiple devices to receive sufficient power over the same cabling run.
• Maximum distance: Up to 820 meters over Cat5e or Cat6 cabling, depending on cable quality and environmental conditions.
• Cable compatibility: Standard Cat5e and Cat6 Ethernet cables, allowing use of readily available wiring for extended links.
• Topology: Point-to-point link between transmitter and receiver units for a dedicated, high-performance connection.
• Applications: Ideal for IP cameras, remote network devices, and other data-intensive peripherals located far from the main network.
• Mounting and form factor: Compact, rugged housing suitable for installation in equipment racks or field enclosures with minimal footprint.

How to install Veracity LONGSPAN Max Quad

• Plan your link by identifying a clear line of sight between the two endpoints and selecting stable mounting locations on secure surfaces or within weather-protected enclosures.
• Power down connected devices and prepare the network cables. Use high-quality Cat5e or Cat6 cables to maximize performance over the extended distance.
• Mount the LONGSPAN units at each end of the link, ensuring proper orientation and secure connections to avoid strain on cabling. Verify environmental protections (dust, moisture) if installed outdoors or in harsh conditions.
• Connect the Ethernet cables to the appropriate ports on each unit, and distribute power to the devices, keeping within the 90W total budget across the four channels.
• Configure network settings on the transmitting and receiving units, assigning static IPs if required for your surveillance system, and ensure the bandwidth allocations align with the camera or device requirements.
• Power up the system, test the link for stability, latency, and throughput, and verify uninterrupted video and data transmission across the 820-meter distance. Make any necessary adjustments to cabling, mounting, or configuration to optimize performance.

Frequently asked questions

• Q: What is Veracity LONGSPAN Max Quad?

  A: It is a 4-channel, Hi-Power long-range Ethernet solution that delivers up to 90W of power and supports distances up to 820 meters over standard Cat5e/Cat6 cabling, designed for reliable point-to-point links to IP cameras and other remote devices.

• Q: How far can the LONGSPAN Max Quad reach?

  A: Up to 820 meters on appropriately installed Cat5e or Cat6 cable, enabling extended surveillance and remote device connectivity without requiring fiber where not necessary.

• Q: What cables are supported?

  A: Standard Cat5e and Cat6 Ethernet cables are supported for the long-range link, allowing straightforward use of existing cabling in many installations.

• Q: Is this suitable for IP cameras?

  A: Yes. LONGSPAN Max Quad is specifically designed to provide power and bandwidth to IP cameras and other remote devices over long distances, ensuring stable video transmission and network connectivity.

• Q: How many devices can be powered or connected simultaneously?

  A: The system supports four channels, offering coverage for up to four IP cameras or remote devices in a single extended link, with a total power budget of up to 90W shared across channels.
