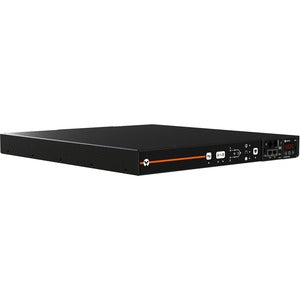

Vertiv Geist RTS VA7U2100 - Rack Transfer Switch RPDU

The Vertiv Geist RTS VA7U2100 is a highly capable rack transfer switch powered rack PDU designed to protect critical IT infrastructure with reliable power distribution, advanced monitoring, and seamless switchover between dual power sources. Engineered for demanding data centers, server rooms, and network closets, this unit delivers sophistication and robustness in a compact, rack-friendly design. With dual inputs, 10 convenient NEMA 5-15R outlets, and the ability to operate across multiple voltages, the VA7U2100 helps you optimize uptime, efficiency, and control in environments where every watt and every second count.

• Seamless power transfer and redundancy: Dual input NEMA 5-15P connections support automatic switchover to maintain uptime during power disturbances, ensuring critical devices stay online even in the event of a source failure.
• Outlet-level visibility and control: Each of the 10 NEMA 5-15R outlets offers monitoring capabilities, enabling you to observe load, energy usage, and potential overload conditions at a glance and take proactive action.
• Flexible voltage and high compatibility: The VA7U2100 supports single-phase operation across 120V, 208V, and 230V configurations, delivering up to 1.4 kW of usable power across all outlets for a broad range of IT equipment and peripherals.
• Compact, rack-ready design with simplified management: Designed to fit standard rack environments while keeping cabling organized, the unit enables clean installations and straightforward integration with existing infrastructure management workflows.
• Integrated management and ease of integration: Compatible with Geist management workflows for remote control, monitoring, alerting, and scheduling, enabling centralized visibility across power and outlet-level metrics in data center operations.

Technical Details of Vertiv Geist RTS VA7U2100

• Model: VA7U2100
• Brand: Vertiv Geist
• Type: Rack Transfer Switch / RPDU (Rack Power Distribution Unit) with transfer-switch capability
• Outlets: 10 x NEMA 5-15R
• Inputs: Dual NEMA 5-15P power cords for two separate supply sources
• Voltage support: 120V / 208V / 230V (single-phase)
• Current rating: 16A/20A configurable per system requirements
• Power capacity: Up to 1.4 kW maximum total distributed power
• Monitoring: Outlet-level monitoring with visibility into load and energy usage
• Configuration: Rack-mountable design for standard rack installations; supports centralized management with Vertiv Geist software
• Application: Ideal for IT equipment requiring reliable power distribution, switchover capability, and per-outlet visibility in critical environments

how to install Vertiv Geist RTS VA7U2100

Installing the Vertiv Geist RTS VA7U2100 is a straightforward process designed to minimize downtime and simplify integration into existing racks. Begin by planning for dual-source power connections and ensuring there is adequate space in your rack for the unit and routing of cables to maximize airflow and accessibility.

Step 1: Prepare the rack space and power sources. Verify that you have two independent power sources rated for the appropriate voltage and current (120V, 208V, or 230V) available. Confirm that outlet loads are balanced to avoid overloading any single circuit and that the rack area provides adequate ventilation.

Step 2: Mount the VA7U2100 in the rack. Use the vendor-provided mounting hardware to attach the unit securely to the rack rails. Ensure the unit is firmly fastened and that the outlets will be accessible for connected equipment. Route power and data cables in a neat, organized fashion to prevent congestion and improve airflow.

Step 3: Connect dual inputs. Plug the two NEMA 5-15P power cords into two separate power sources. This dual input configuration enables redundancy and ensures that loss of one source does not interrupt connected equipment. Route the cords to labeled power sources to simplify future maintenance and testing.

Step 4: Connect devices to NEMA 5-15R outlets. Distribute critical equipment across the 10 outlets to balance load and provide headroom for growth. When possible, place devices with higher startup currents on outlets with lower historical utilization to reduce peak demands and improve overall stability.

Step 5: Configure monitoring and transfer switching. If you are using Geist management software, follow the setup wizard to enable outlet-level monitoring, alerting, and reporting. If operating in a standalone mode, configure any local indicators or controls per the user manual to enable automatic switchover and status reporting at each outlet.

Step 6: Validate operation and perform a switchover test. With dual sources connected, simulate a primary source interruption to verify automatic transfer to the secondary source and confirm that connected devices remain powered. Record observations and confirm that monitoring alerts trigger as expected, then reestablish the primary source and monitor for normal operation. Regular testing helps validate redundancy and maintains readiness for real power events.

Step 7: Document configuration for ongoing maintenance. Note power sources, outlet assignments, monitoring thresholds, and any Geist management settings. Maintain an up-to-date map of equipment connections to simplify future changes, expansion, or troubleshooting.

Frequently asked questions

• Q: What is the primary purpose of the Vertiv Geist RTS VA7U2100? A: It combines a rack transfer switch with power distribution to deliver reliable, monitored power to critical IT equipment, while providing dual-input redundancy and outlet-level visibility for proactive load management.
• Q: How many outlets does it have and what type are they? A: The VA7U2100 provides 10 NEMA 5-15R outlets for convenient connection of standard IT devices and peripherals.
• Q: Can it operate at different voltages? A: Yes, it supports single-phase operation at 120V, 208V, and 230V, allowing flexibility in various data center or office environments.
• Q: What is the maximum power it can deliver? A: The unit is rated for up to 1.4 kW of total distributed power across all outlets, suitable for a range of servers, storage devices, and network equipment.
• Q: Does it support remote management? A: Yes. The VA7U2100 is designed to integrate with Vertiv Geist centralized management solutions, providing remote monitoring, alerts, and control to streamline power administration.
• Q: Is dual-input redundancy available? A: Yes. The dual NEMA 5-15P inputs allow you to connect two separate power sources, enabling automatic switchover to maintain operation during a power event on one source.
• Q: How do I verify the switchover works? A: After setup, perform a controlled test by simulating a power loss on the primary source and observing that the connected devices remain powered via the secondary source, with monitoring alerts confirming the event.
