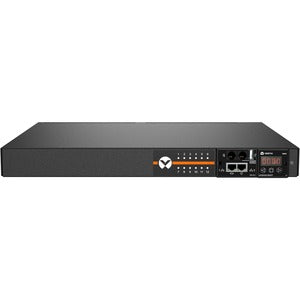

Vertiv Geist Switched Rack PDU - 1U Horizontal PDU (C13/C19, C20 Inlet, 16-20A)

The Vertiv Geist Switched Rack PDU VP52101 delivers intelligent, space-saving power distribution for modern data centers, server rooms, and high-density rack environments. Engineered for efficiency and reliability, this 1U horizontal PDU combines precise electrical monitoring with outlet-level control to help IT teams optimize energy use, prevent downtime, and simplify maintenance. With a flexible voltage range (120V / 208V / 230V) and a robust 16-20A current rating, it supports global deployments while fitting neatly into standard 19-inch racks. The VP52101 features 12 combination C13/C19 outlets plus a C20 inlet, offering versatile compatibility for a wide range of servers, storage devices, network equipment, and peripherals. From busy data centers to disciplined edge environments, this PDU empowers operators to monitor real-time power consumption, automate routine tasks, and enforce power policies across the entire enclosure. The result is improved reliability, reduced energy waste, and clearer visibility into how critical IT loads behave under different conditions.

• Power capacity and voltages: 16-20A operation with support for 120V, 208V, and 230V configurations, enabling global readiness and flexible deployment in mixed-voltage data centers.
• Outlet configuration: 12 Combination Outlet C13/C19 receptacles complemented by a C20 inlet, delivering broad compatibility for mixed IT gear and future growth within a single cabinet footprint.
• 1U ergonomic footprint: A compact, space-saving design engineered to maximize rack density without compromising access to power distribution controls or cabling management.
• Intelligent monitoring and switching: Built-in input power monitoring and outlet-level switching provide instant visibility and granular control over power delivery, helping prevent overloads and enabling automated energy-management workflows.
• Durable, enterprise-grade architecture: Rigorously tested for reliability in demanding rack environments and designed to integrate with the Vertiv Geist ecosystem, facilitating alarms, event logging, and seamless integration with DCIM platforms.

Technical Details of Vertiv Geist Switched Rack PDU

• Model: VP52101
• Form factor: 1U horizontal rack PDU
• Voltage: 120V / 208V / 230V (configurable by installation region)
• Current rating: 16-20A
• Outlets: 12 x C13/C19 combination outlets
• Inlet: C20 inlet
• Power capacity: up to approximately 3.6 kW depending on voltage configuration
• Monitoring: Input power monitoring with outlet-level switching
• Mounting: 19-inch rack-compatible, designed for standard data center enclosures
• Management compatibility: Integrates with Vertiv Geist management tools for alarms, remote control, and energy analytics

how to install Vertiv Geist Switched Rack PDU

Installing the Vertiv Geist Switched Rack PDU is straightforward and designed to minimize downtime during deployment. Begin by confirming your cabinet space and ensuring you have a standard 19-inch rack with a clear 1U height slot available for the VP52101. Before mounting, verify that your power source matches the PDU’s configured voltage and current rating for your region. Use the supplied mounting rails or a compatible rack-mount kit to secure the PDU horizontally in the chassis, keeping the 12 C13/C19 outlets accessible for cable management and serviceability. After physical mounting, connect the PDU’s C20 inlet to the appropriate power source using heavy-duty power cords suitable for the voltage in use. Once connected to power, route IT equipment power cords to the C13/C19 outlets, grouping cables to reduce clutter and improve airflow. Enable outlet-level switching and power monitoring through the Geist management interface or integrated DCIM tools to establish baseline energy consumption data for critical loads. It is advisable to perform a controlled load test within the PDU’s rated capacity to validate monitoring accuracy and outlet control, ensuring alarms and remote commands operate as expected. Finally, configure alert thresholds and load-shedding policies to protect critical systems during maintenance windows or dynamic load conditions. For ongoing operations, maintain a clean cable management scheme, label each outlet, and periodically review power analytics to identify peak demand periods, anticipated future growth, and potential corrective actions to optimize cooling and overall energy efficiency.

Frequently asked questions

• Q: Does the Vertiv Geist VP52101 support outlet-level switching?
• A: Yes. The VP52101 provides outlet-level switching, enabling centralized control and automated power management for connected devices.
• Q: How many outlets does this PDU have and what outlets are included?
• A: The PDU includes 12 combination outlets that support C13/C19 configurations, plus a C20 inlet for power input.
• Q: What voltages and current ratings are supported?
• A: It operates at 16-20A and supports 120V, 208V, and 230V configurations, making it suitable for diverse regional deployments.
• Q: Is this a 1U rack-mount device?
• A: Yes, it is a 1U horizontal rack PDU designed for standard 19-inch racks, enabling compact, scalable power distribution within dense cabinets.
• Q: Can it integrate with Vertiv Geist management tools?
• A: Yes. The VP52101 is designed to integrate with the Geist ecosystem, providing alarms, energy analytics, and remote control capabilities.
