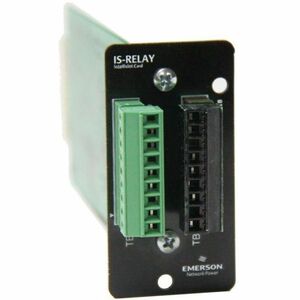

Vertiv Liebert IntelliSlot Relay Card - Remote Monitoring Adapter

The Vertiv Liebert IntelliSlot Relay Card (IS-RELAY) is an essential component for anyone looking to enhance their UPS systems with advanced remote monitoring capabilities. Designed specifically for use with equipment featuring an IntelliSlot communication port, this relay card provides unparalleled insight into your data center's operational status, ensuring your systems remain proactive and reliable. With its user-friendly installation process and robust monitoring features, the IS-RELAY is the ideal solution for maximizing uptime while minimizing risks associated with power failures.

• Proactive Monitoring: The Vertiv Liebert IntelliSlot Relay Card allows for real-time monitoring of six critical alarm points: On Battery, On Bypass, Low Battery, Summary Alarm, UPS Fault, and On UPS signals. This means you are always informed of your UPS status, enabling timely interventions and reducing the likelihood of unexpected downtime.
• Seamless Integration: The IS-RELAY is compatible with various Vertiv Liebert UPS systems, including the Liebert NX, Liebert Nfinity, and Liebert GXT3. Its design ensures effortless integration with existing relay contact monitoring systems, providing flexibility for users looking to enhance their current setup.
• Hot-Swappable Design: One of the standout features of the Vertiv Liebert IntelliSlot Relay Card is its hot-swappable capability. This means you can install or replace the card without needing to power down your UPS systems, thus maintaining operational continuity and minimizing disruptions to your data center’s environment.
• Reliable Communication: The relay card communicates effectively with the Vertiv Liebert MultiLink automated shutdown software, offering full event management and automated shutdown protection. This ensures your systems are safeguarded during power anomalies, enhancing overall reliability and performance.
• User-Friendly Installation: Designed for easy installation, the IS-RELAY can be set up quickly by your onsite personnel, allowing you to get back to business without long downtimes. Its straightforward installation process makes it accessible for individuals with varying levels of technical expertise.

Technical Details of the Vertiv Liebert IntelliSlot Relay Card

• Model: IS-RELAY
• Compatibility: Vertiv Liebert NX, Nfinity, and GXT3 UPS systems
• Alarm Points: 6 (On Battery, On Bypass, Low Battery, Summary Alarm, UPS Fault, On UPS signals)
• Rated Voltage: 24VAC/VDC at 1A
• Communication: Works with Vertiv Liebert MultiLink for shutdown management
• Installation: User-installable and hot-swappable

How to Install the Vertiv Liebert IntelliSlot Relay Card

Installing the Vertiv Liebert IntelliSlot Relay Card is a straightforward process. Follow these steps for a successful installation:

1. Ensure your UPS system is compatible with the IS-RELAY card.
2. Locate the IntelliSlot communication port on your UPS.
3. Carefully insert the IS-RELAY card into the port, ensuring it is securely in place.
4. Confirm that the card is properly seated and that there are no obstructions.
5. Once installed, the relay card will begin functioning immediately, providing real-time monitoring capabilities without the need for system shutdown.

Frequently Asked Questions

• Can the Vertiv Liebert IntelliSlot Relay Card be used with other UPS brands?
  The IS-RELAY is specifically designed for use with Vertiv Liebert UPS systems and may not function properly with other brands.
• What is the maximum load that the relay card can handle?
  The relay card is rated for 24VAC/VDC at 1A, making it suitable for various monitoring applications within your UPS systems.
• Is technical support available if I encounter issues?
  Yes, Vertiv offers customer support to assist with any technical queries or installation concerns. Ensure you have your product details handy for efficient assistance.
• Do I need to power down my UPS during installation?
  No, the hot-swappable design of the IS-RELAY allows for installation without shutting down your UPS system, ensuring no interruption in service.
• Will the relay card work with my existing monitoring systems?
  Yes, the IS-RELAY is designed for easy integration with other relay contact monitoring systems, allowing you to enhance your current monitoring setup effortlessly.
